Refrigeration Package

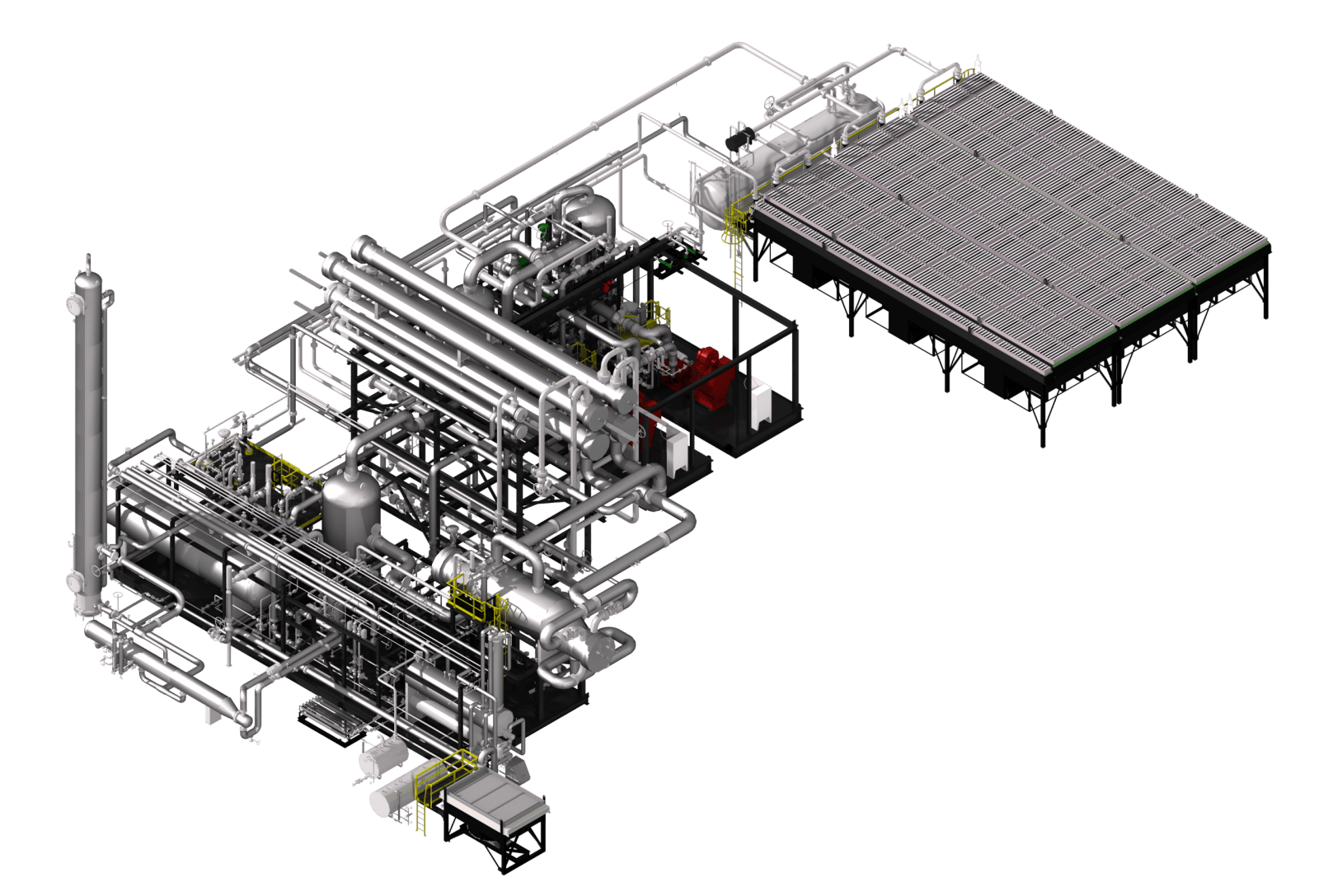

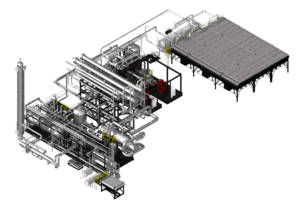

(1) 5B1401 Ortho TFR 15 min

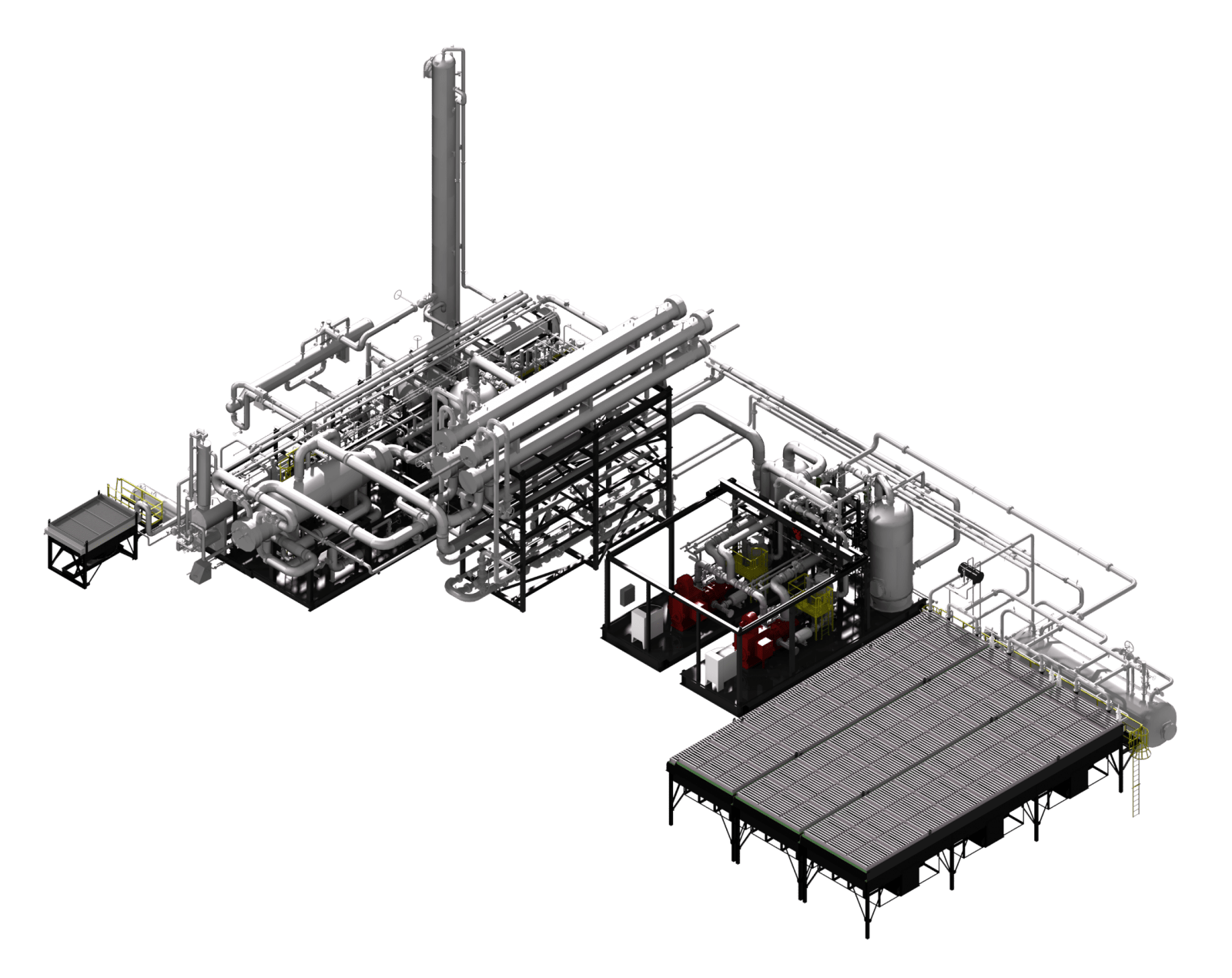

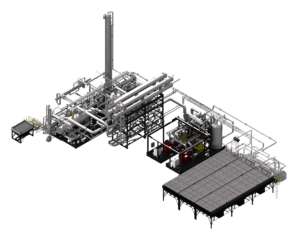

(2) 5B1401 Ortho TRB 15 min

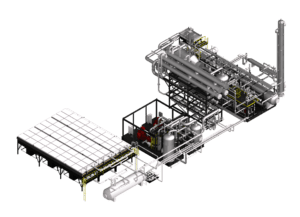

(3) 5B1401 Ortho TBL 15 min

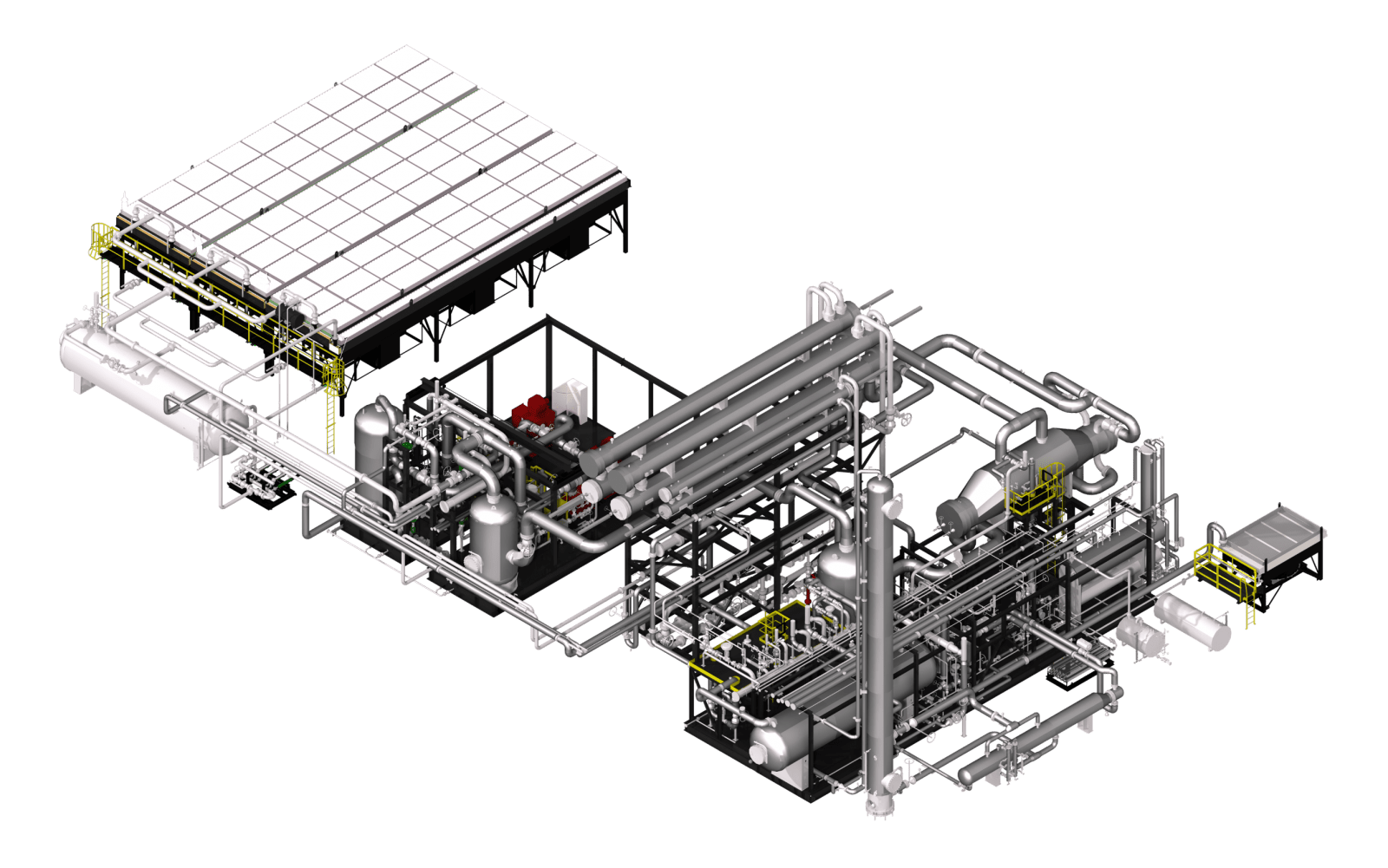

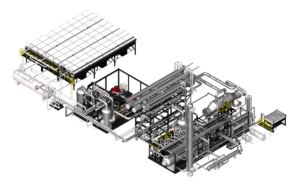

(4) 5B1401 Ortho TLF 15 min

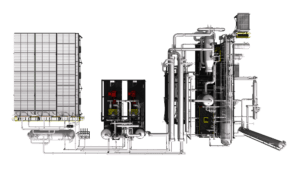

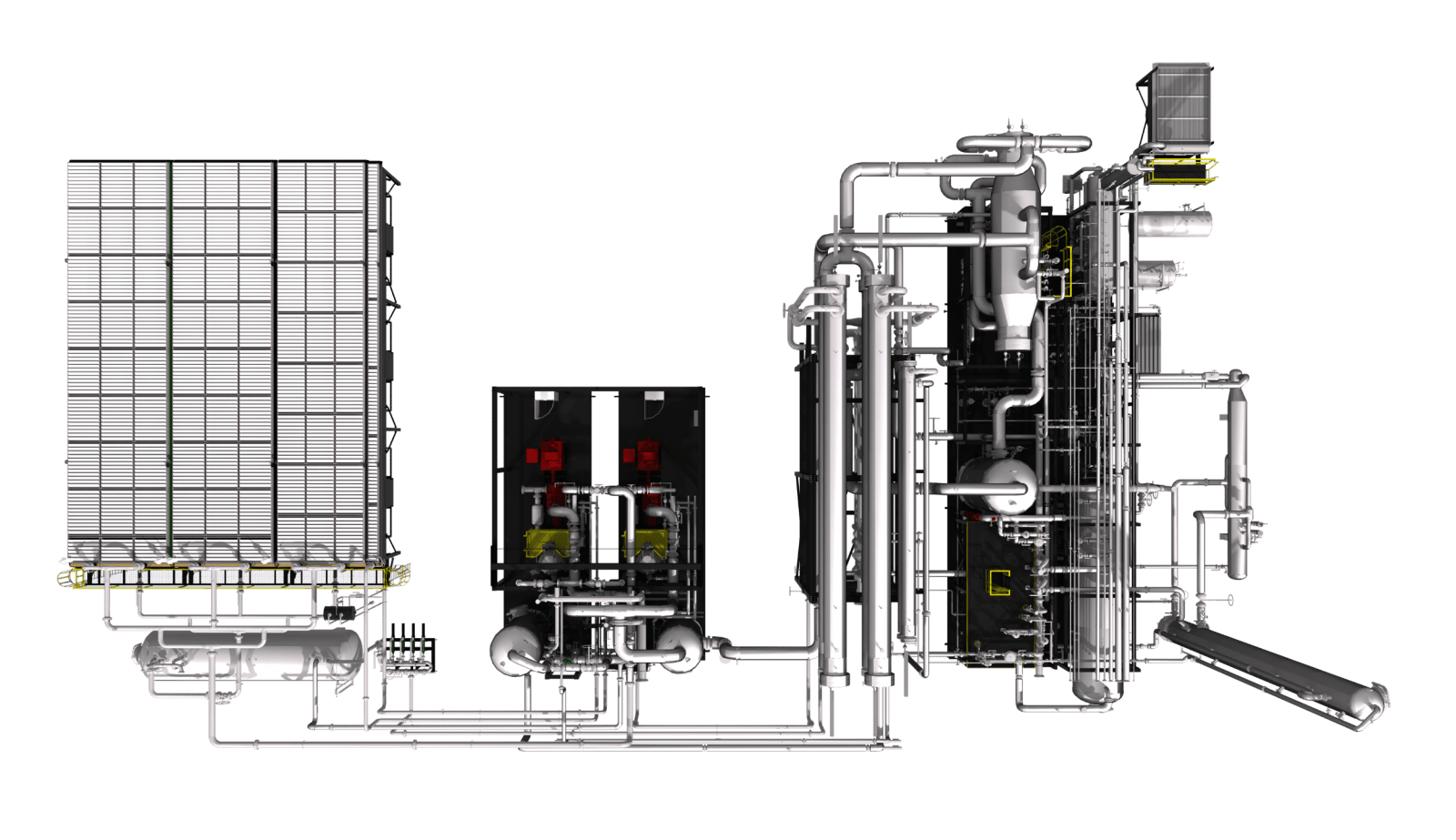

(5) 5B1401 Perspective TOP 15 min
(1) 5B1401 Ortho TFR 15 min (2) 5B1401 Ortho TRB 15 min (3) 5B1401 Ortho TBL 15 min (4) 5B1401 Ortho TLF 15 min (5) 5B1401 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 185 MMSCFD
  • Service Condition: sweet
  • Inlet Operating Pressure: 700 psig
  • Mechanical Design Pressure: 900 psig
  • Refrigeration HP: 1750 hp
  • Compressor: 2 x Electric Drive
  • DeEthanizer Flow Rate: 4,147 bbl/d
  • Tower Size: 42″ ID x 54′-0″ S/S
  • Reboiler: (Duty) 5.3 MMBtu/hr
  • Skid Size: 26′-6″ W x 72′-0″ L

Project Details

  • Unit Type: Refrigeration
  • Value: $10.0 mm to $15.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2020
