Amine Plant

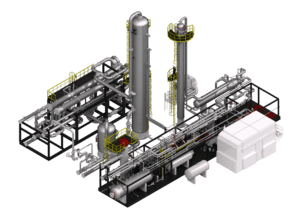

(1) 5B1389 Ortho TRB 15 min
(2) 5B1389 Ortho TBL 15 min

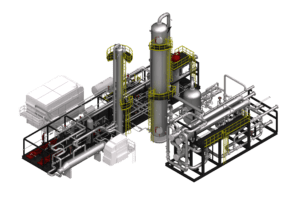

(3) 5B1389 Ortho TLF 15 min

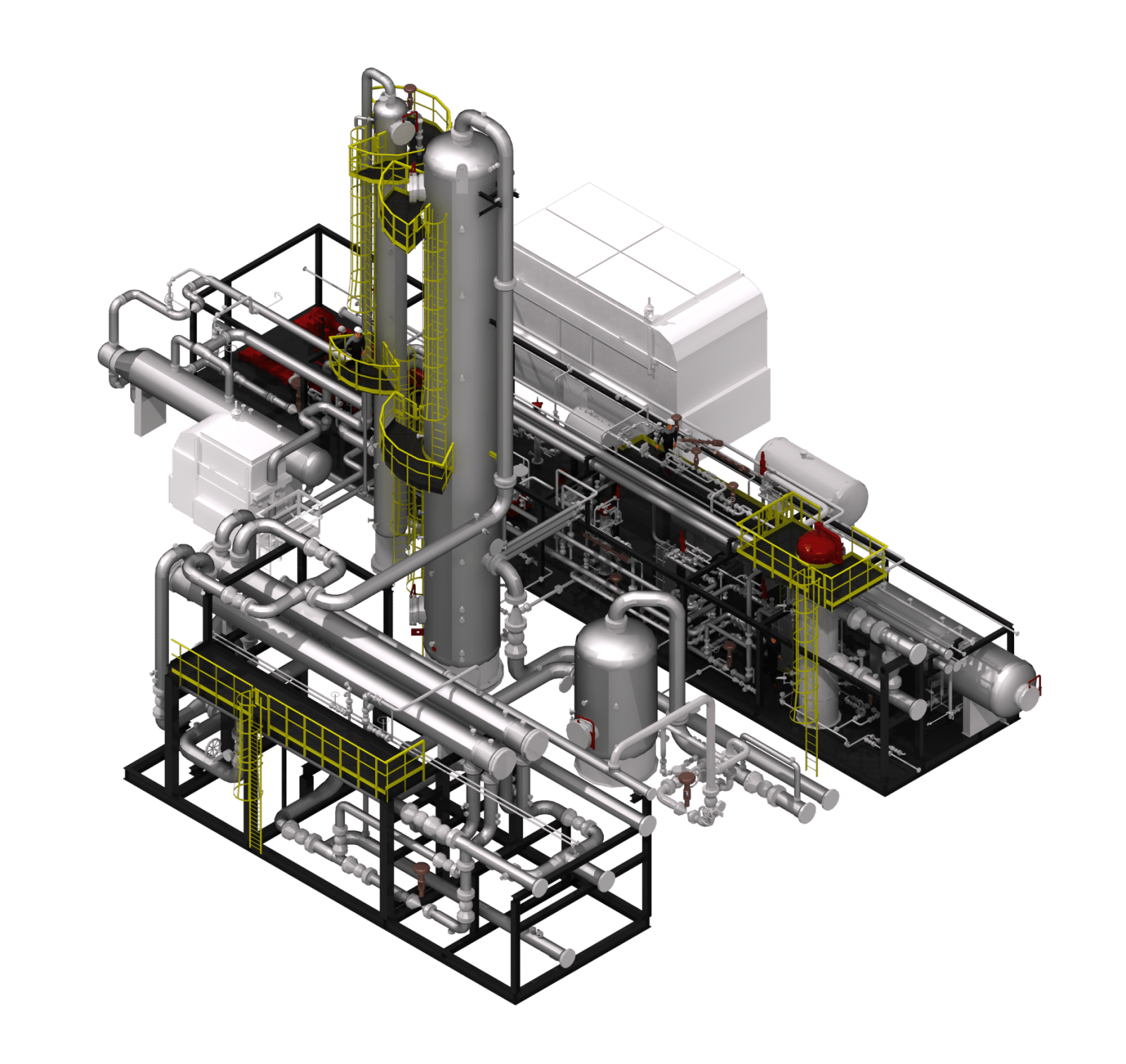

(4) 5B1389 Ortho TFR 15 min

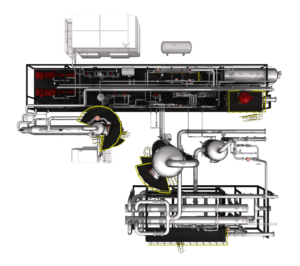

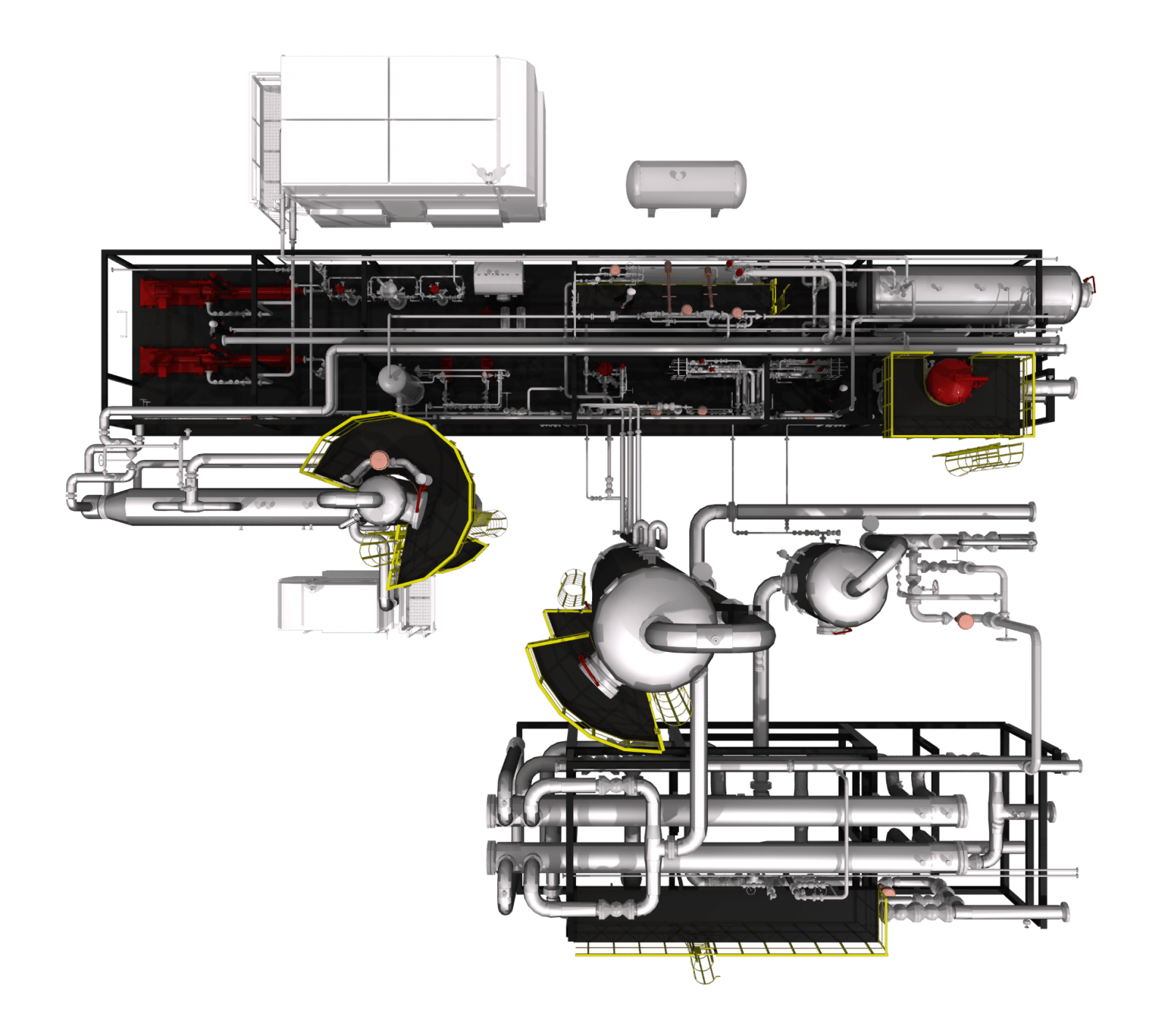

(5) 5B1389 Perspective TOP 15 min
(1) 5B1389 Ortho TRB 15 min (2) 5B1389 Ortho TBL 15 min (3) 5B1389 Ortho TLF 15 min (4) 5B1389 Ortho TFR 15 min (5) 5B1389 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 185 MMSCFD
  • Amine Circulation Rate: 120 gpm
  • Amine Type: MDEA
  • Absorbed Material: H2S
  • Inlet Operating Pressure: 700 psig
  • Mechanical Design Pressure: 920 psig
  • Amine Contactor Size: 84″ ID x 58′-0″ S/S
  • Regenerator Column Size: 36″ OD x 50′-0″ S/S
  • Reboiler: (Duty) 6.6 MMBtu/hr
  • Skid Size: 21′-6″ W x 88′-6″ L

Project Details

  • Unit Type: Amine Plant
  • Value: $5.0mm to $10.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2020
