Condensate Stabilizer

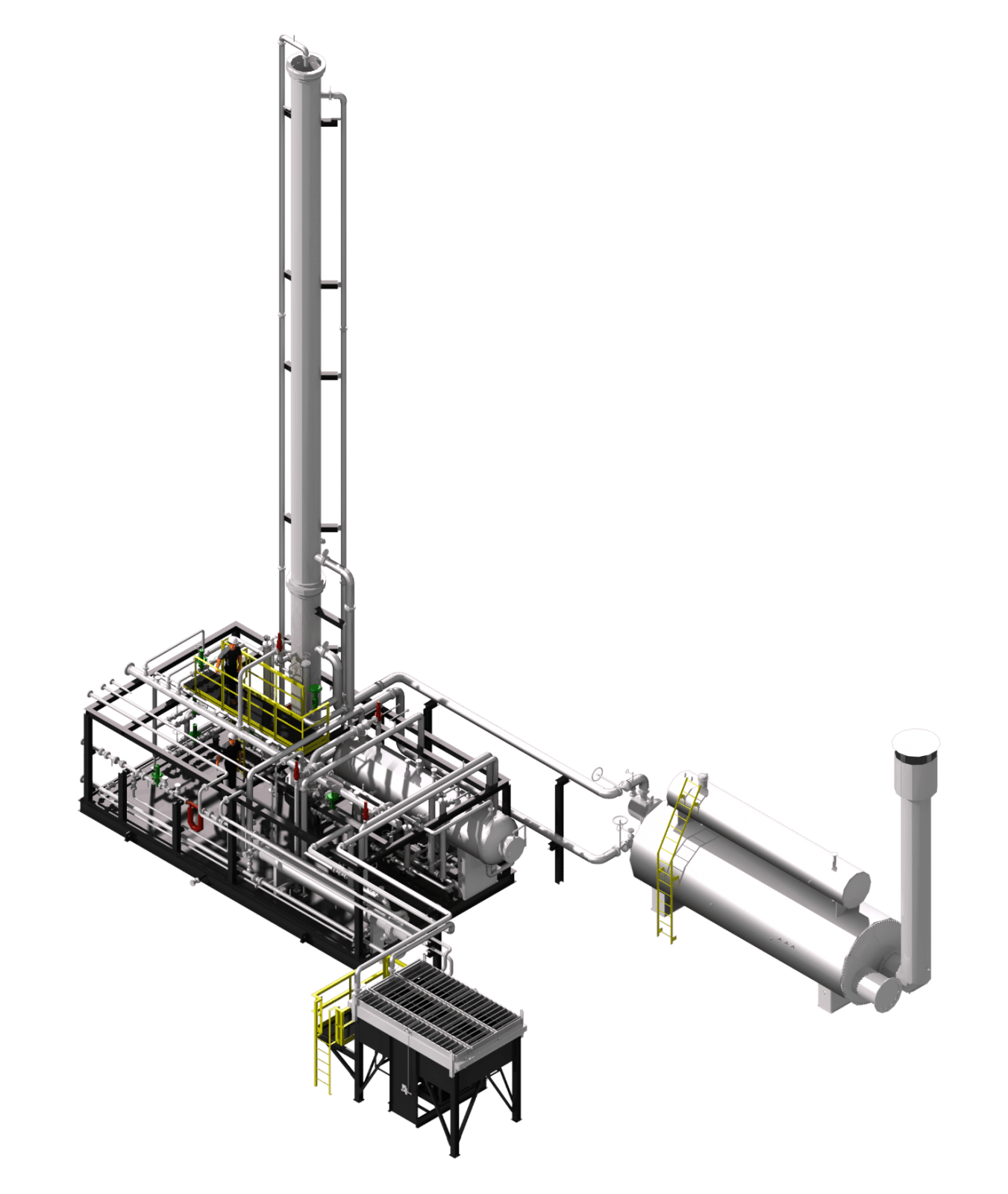

(1) 5B1384 Ortho TFR 15 min

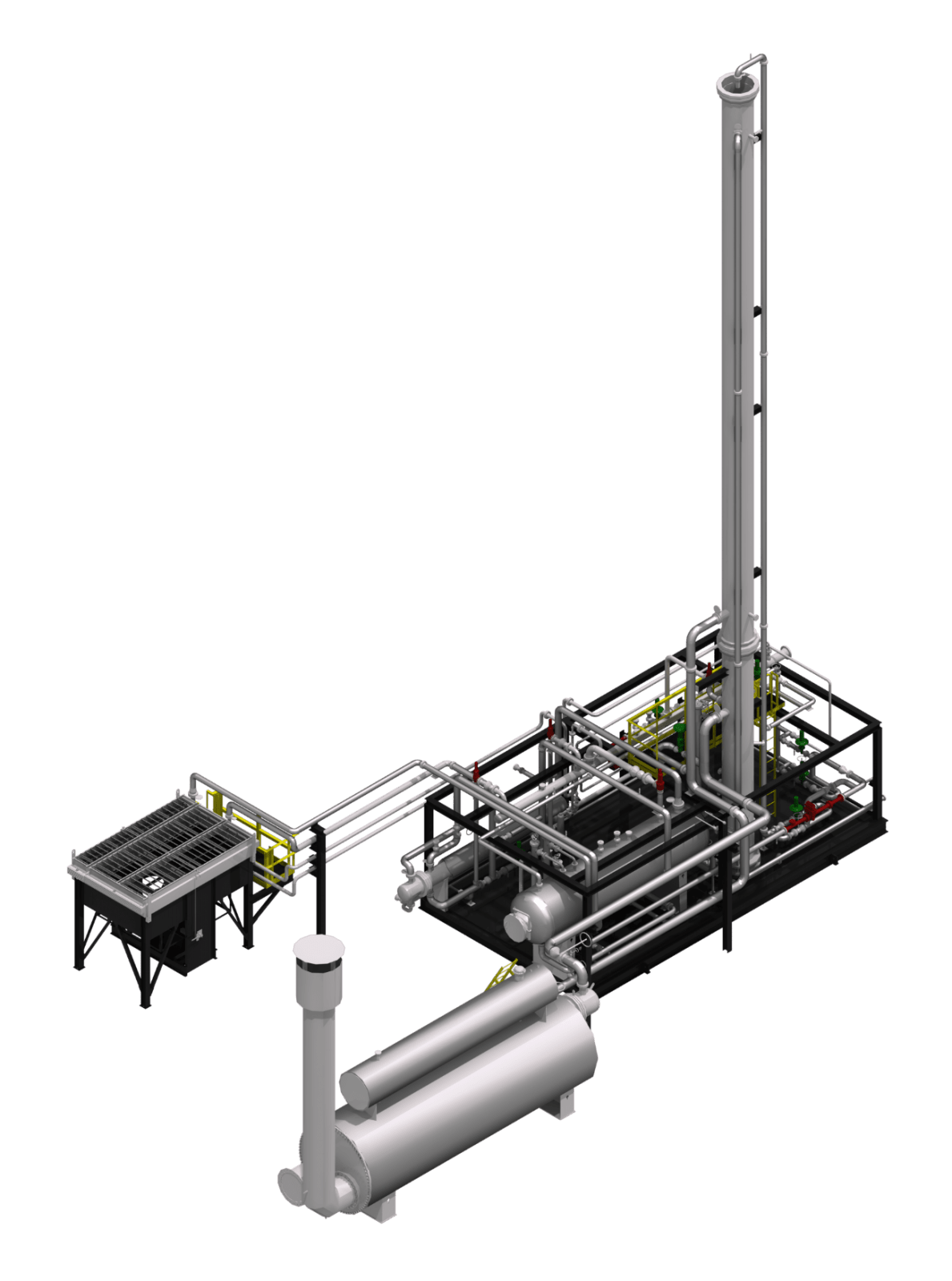

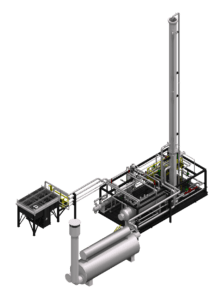

(2) 5B1384 Ortho TRB 15 min

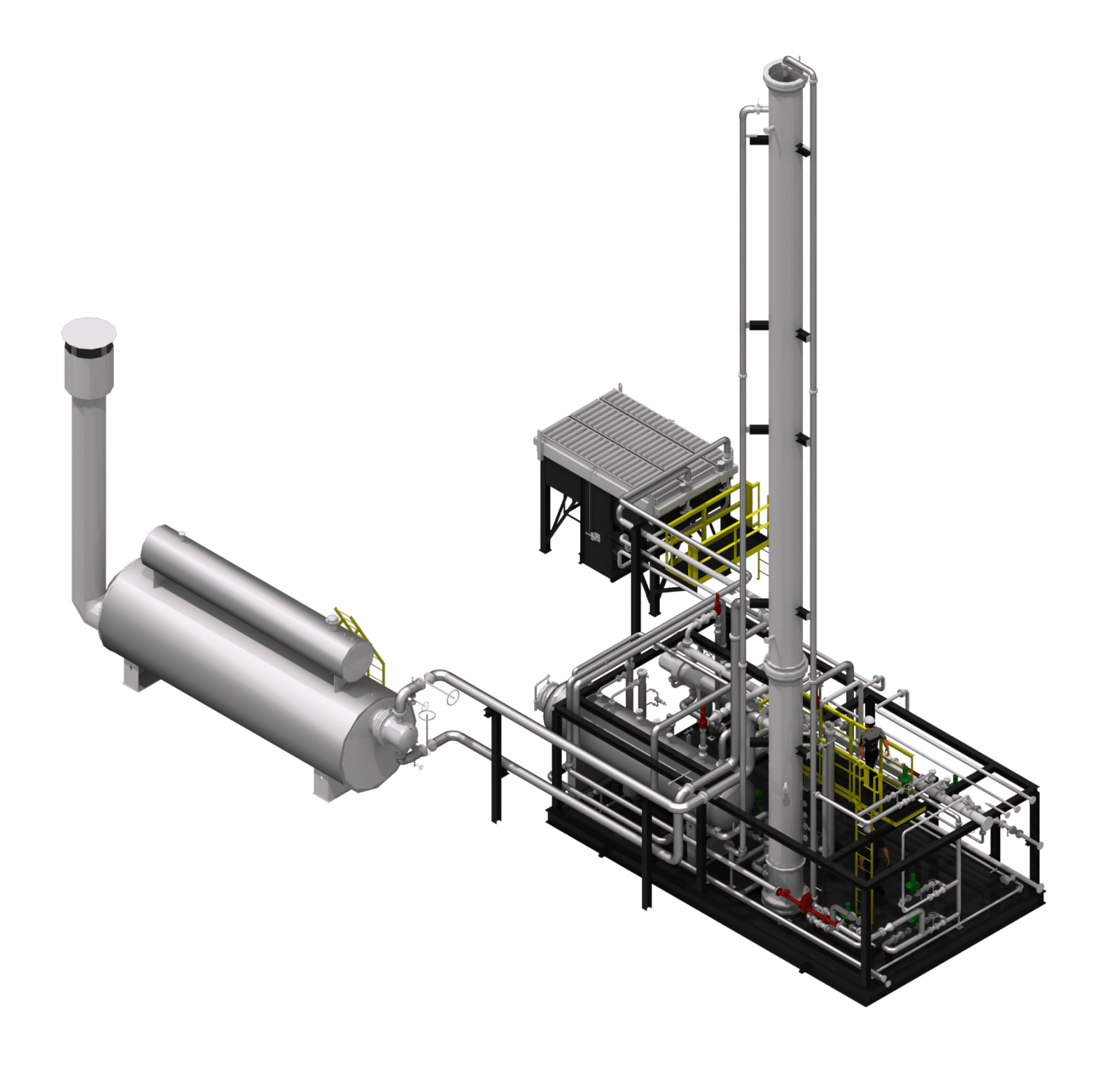

(3) 5B1384 Ortho TBL 15 min

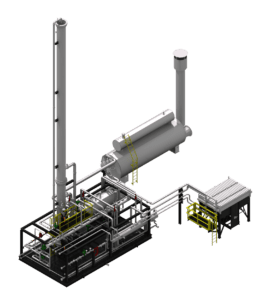

(4) 5B1384 Ortho TLF 15 min

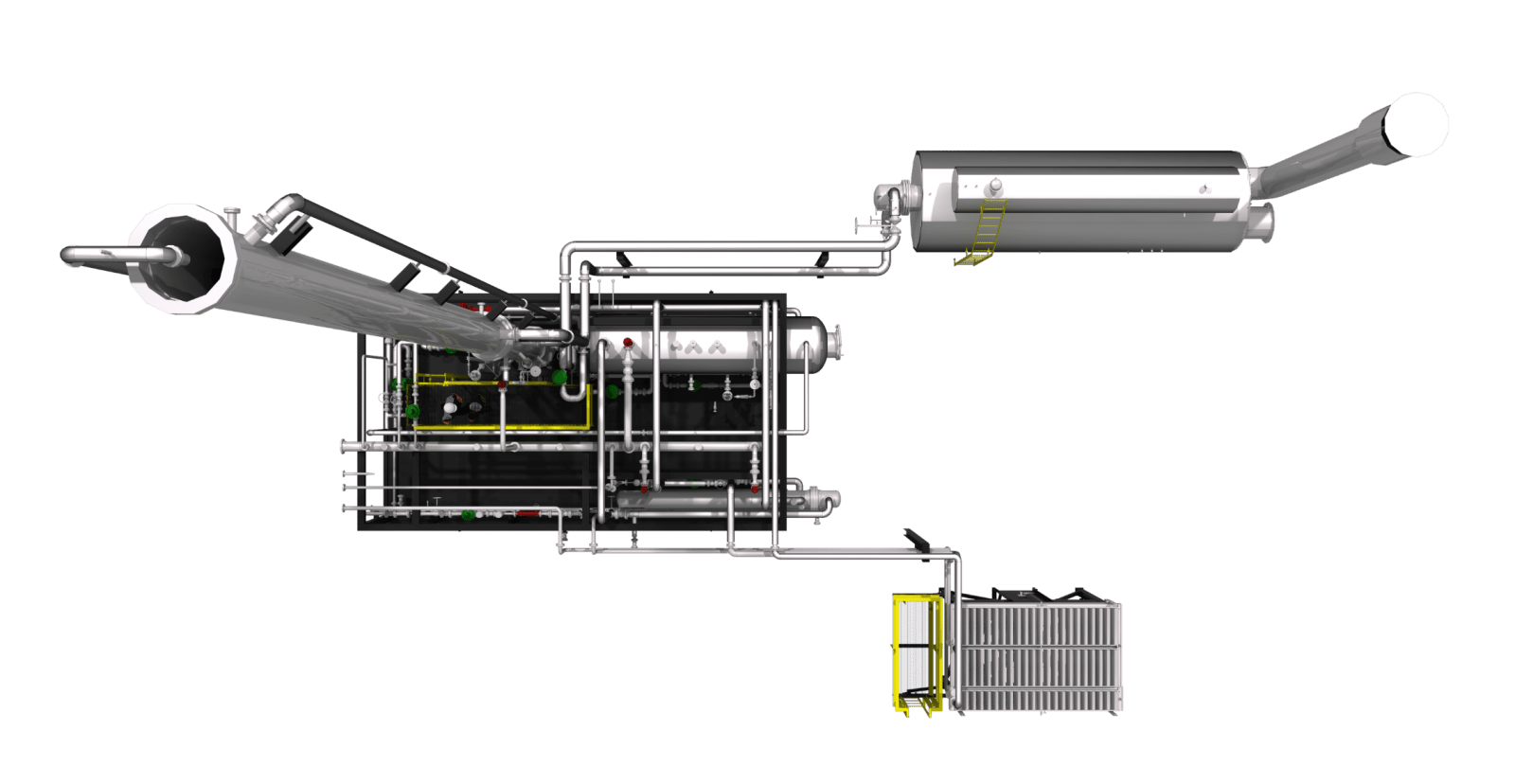

(5) 5B1384 Perspective TOP 15 min
(1) 5B1384 Ortho TFR 15 min (2) 5B1384 Ortho TRB 15 min (3) 5B1384 Ortho TBL 15 min (4) 5B1384 Ortho TLF 15 min (5) 5B1384 Perspective TOP 15 min

Product Specs

  • Hydrocarbon Flow Rate: 4000 bbl/d
  • Service Condition: sour
  • Inlet Operating Pressure: 100 psig
  • Mechanical Design Pressure: 175 psig
  • Tower Size: 30″ ID or OD x 68′-0″ S/S
  • Reboiler: (Duty) 3.8 MMBtu/hr
  • Skid Size: 18′-0″ W x 32′-0″ L

Project Details

  • Unit Type: Condensate Stabilizer
  • Value: $1.0 mm to $5.0 mm
  • Location: Alberta, Canada
  • Completion Date: 2019
