Condensate Stabilizer

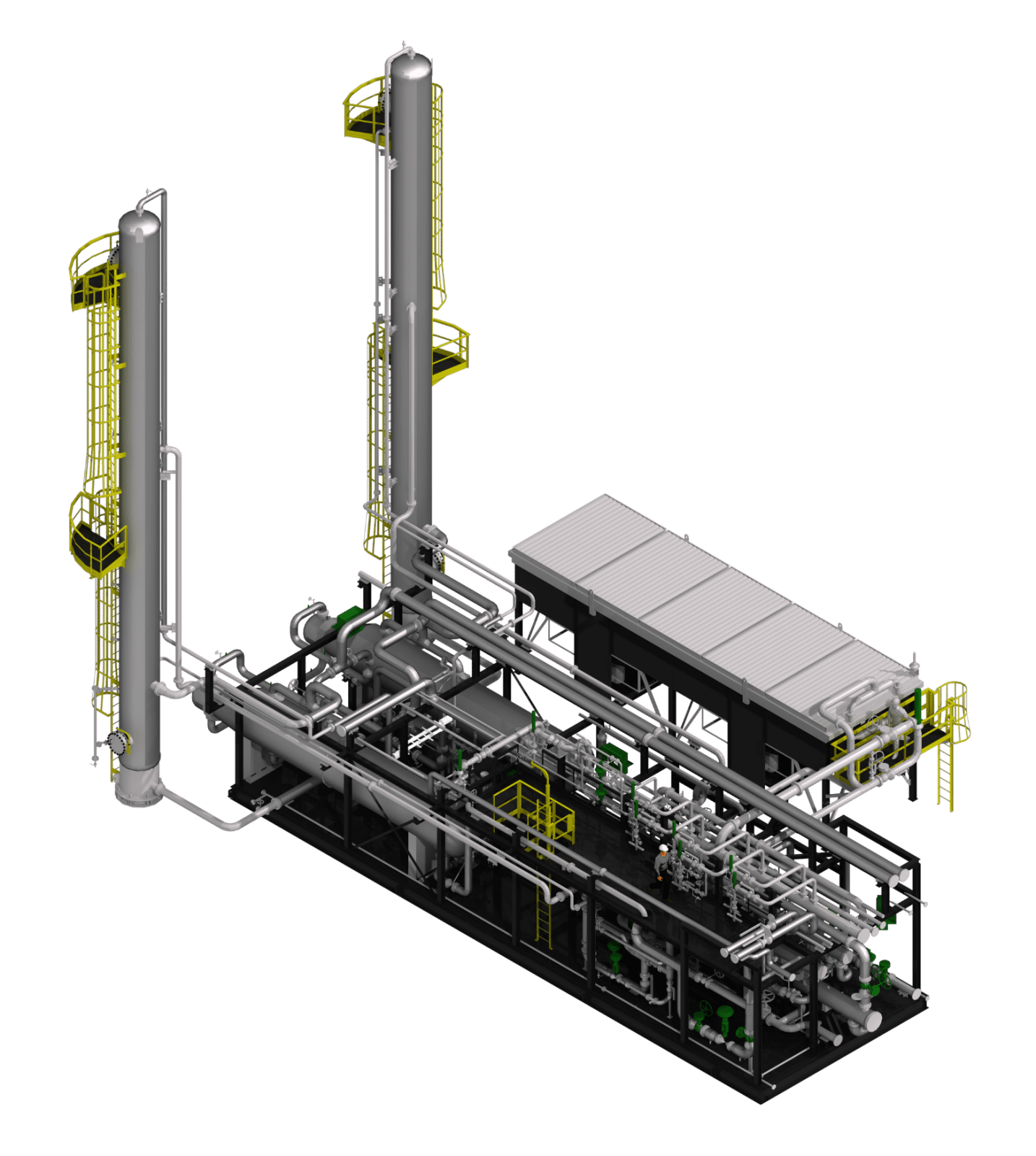

(1) 5B1307 Ortho TLF 15 min

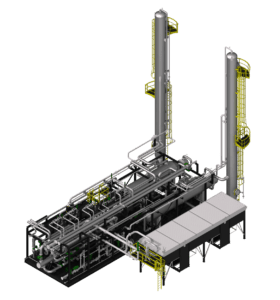

(2) 5B1307 Ortho TFR 15 min

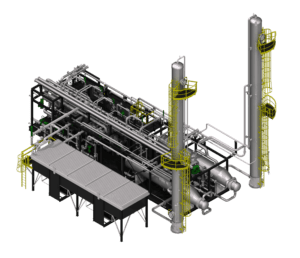

(3) 5B1307 Ortho TRB 15 min

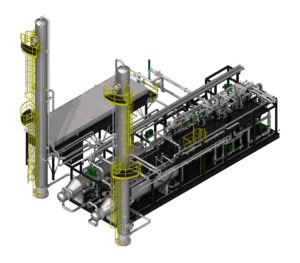

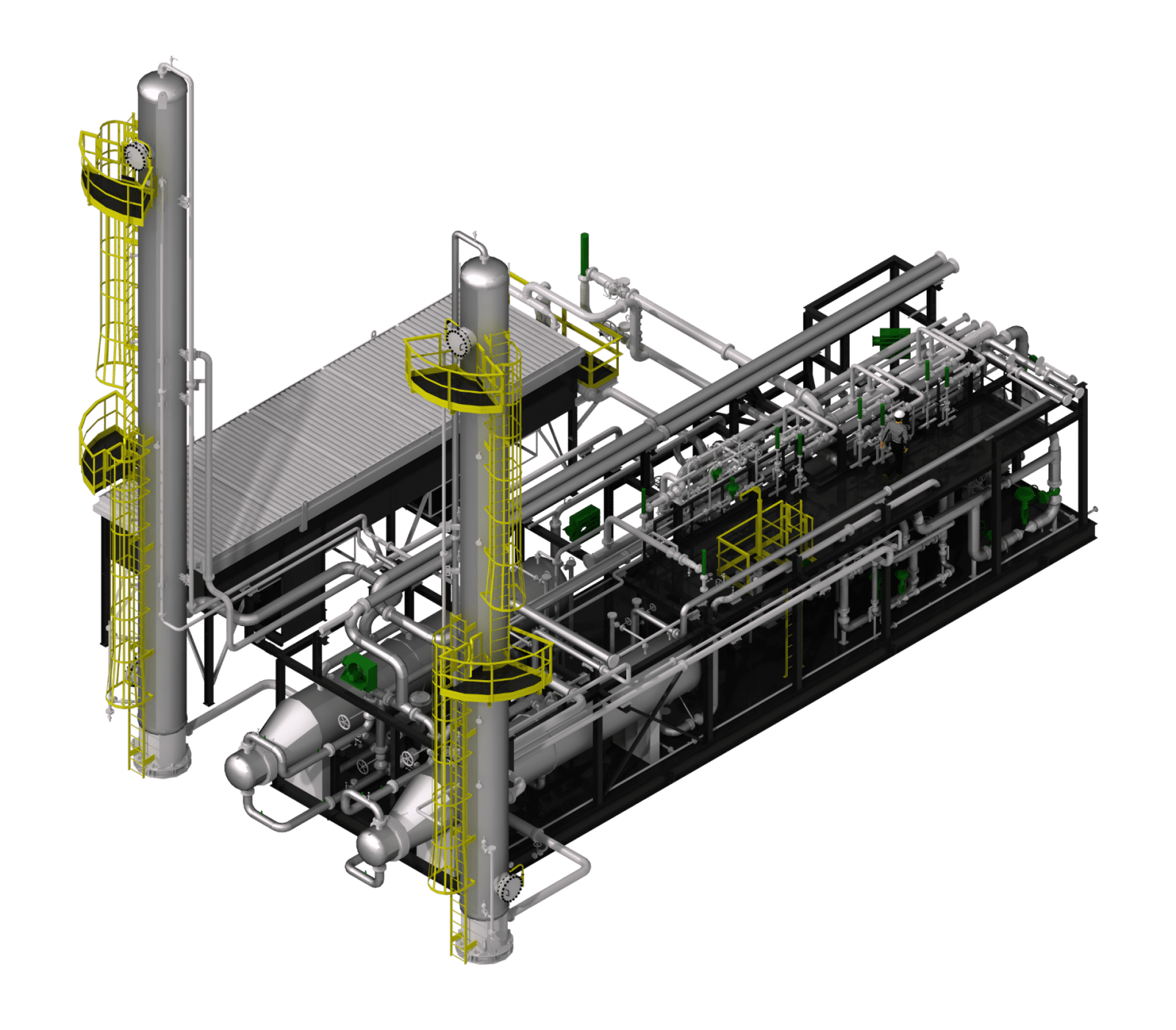

(4) 5B1307 Ortho TBL 15 min

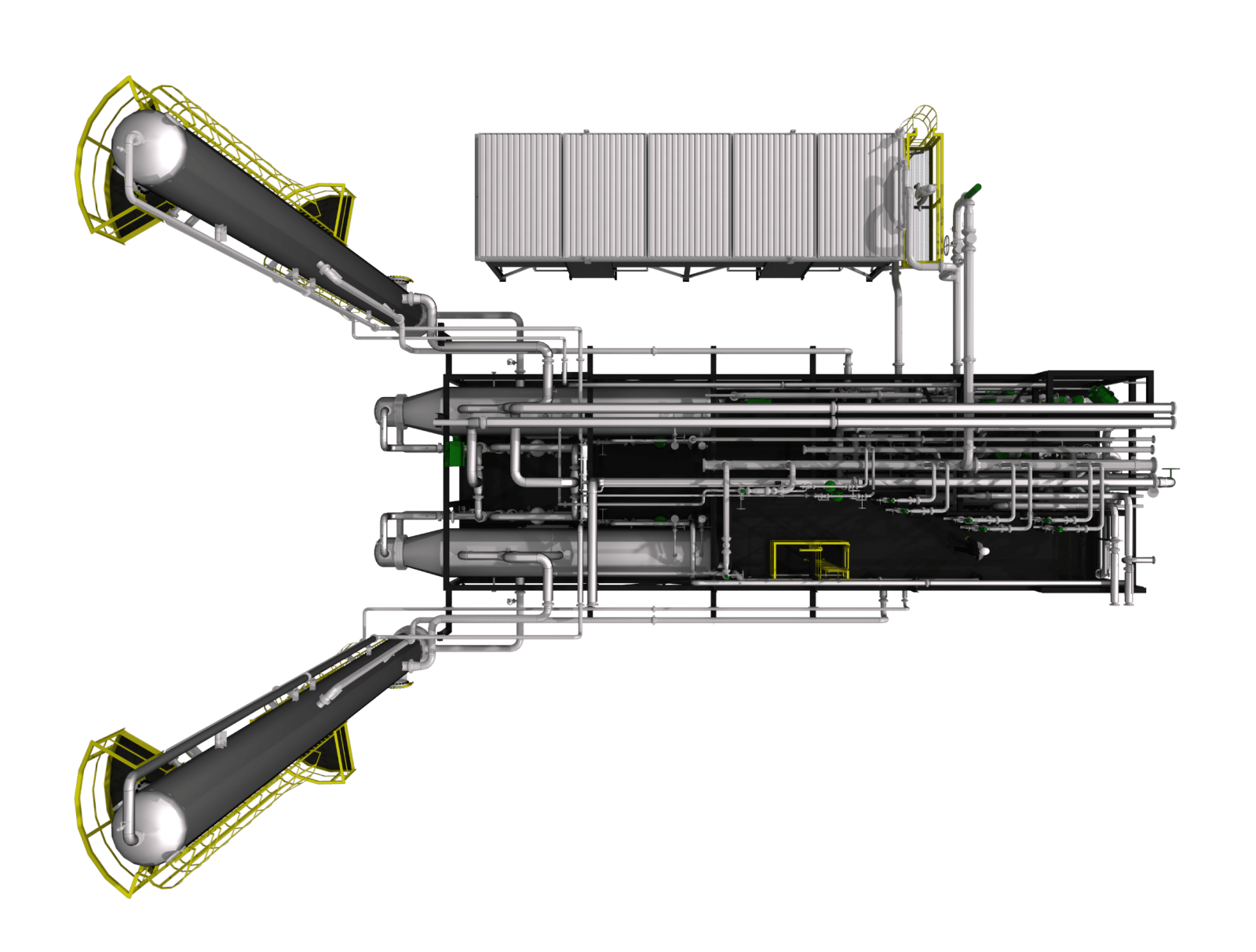

(5) 5B1307 Perspective TOP 15 min
(1) 5B1307 Ortho TLF 15 min (2) 5B1307 Ortho TFR 15 min (3) 5B1307 Ortho TRB 15 min (4) 5B1307 Ortho TBL 15 min (5) 5B1307 Perspective TOP 15 min

Product Specs

  • Hydrocarbon Flow Rate: 16000 bbl/d
  • Service Condition: sour
  • Inlet Operating Pressure: 50 psig
  • Mechanical Design Pressure: 220 psig
  • Tower Size: 42″ ID x 58′-0″ S/S
  • Reboiler: (Duty) 8.9 MMBtu/hr
  • Skid Size: 22′-0″ W x 68′-0″ L

Project Details

  • Unit Type: Condensate Stabilizer
  • Value: $1.0 to $5.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2019
