Amine Plant

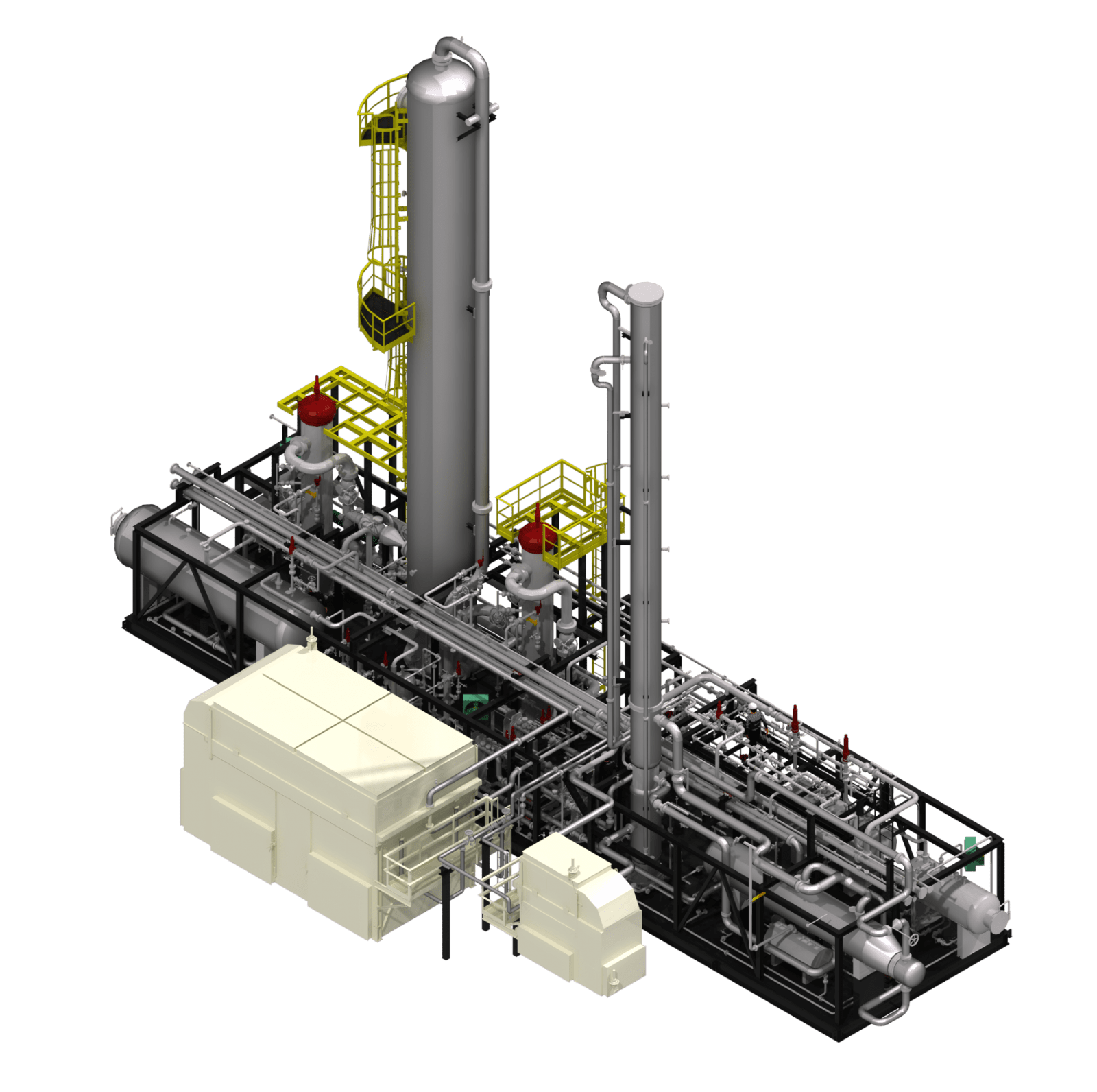

(1) 5B1306 Ortho TFR 15 min

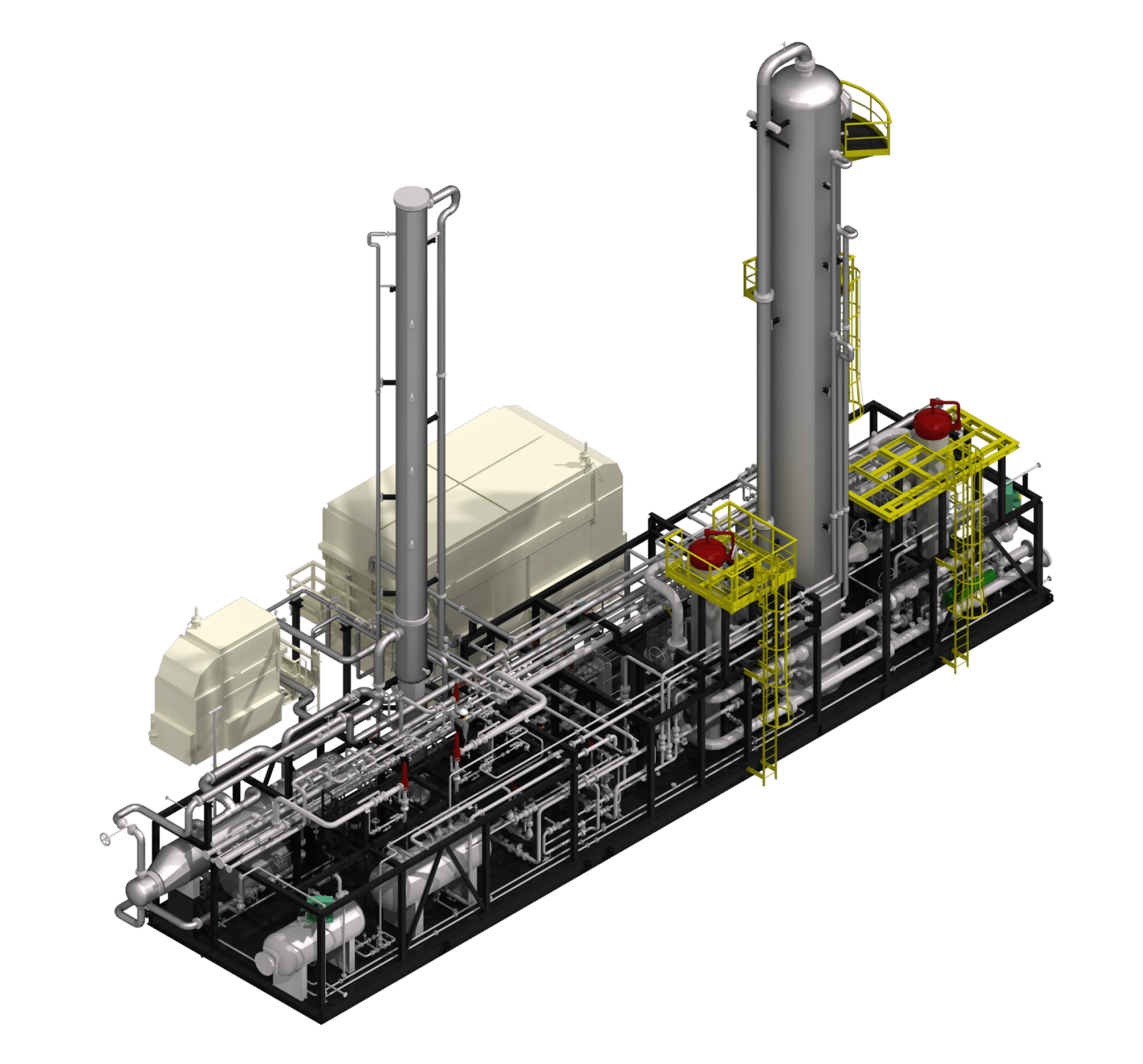

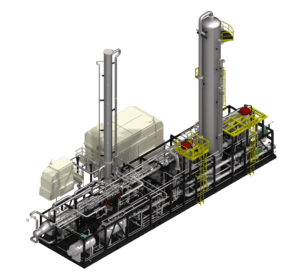

(2) 5B1306 Ortho TRB 15 min

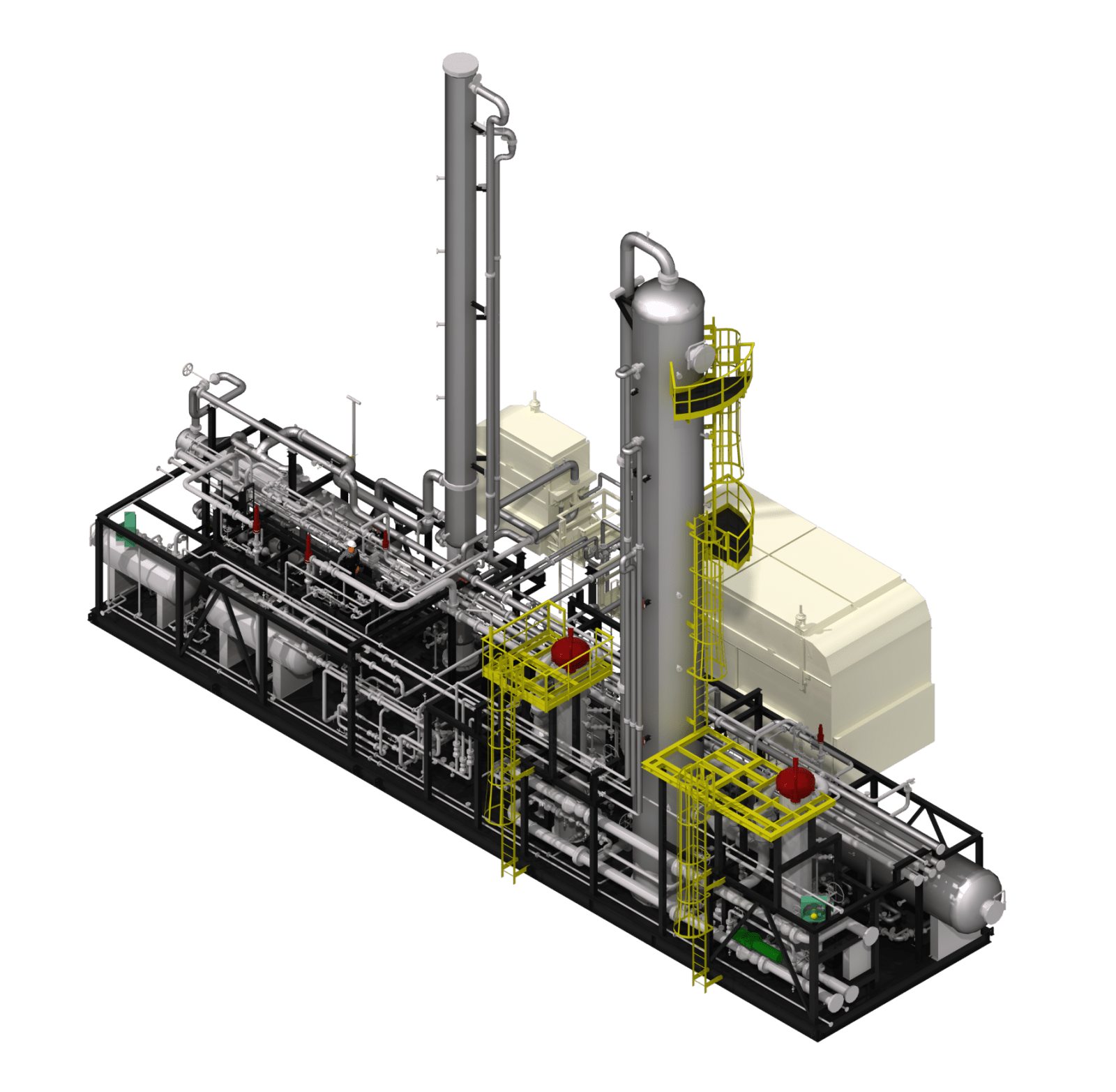

(3) 5B1306 Ortho TBL 15 min

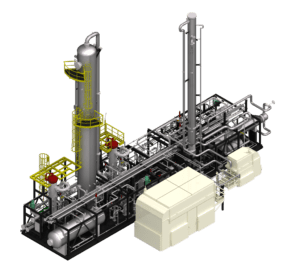

(4) 5B1306 Ortho TLF 15 min

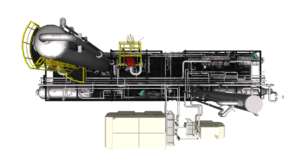

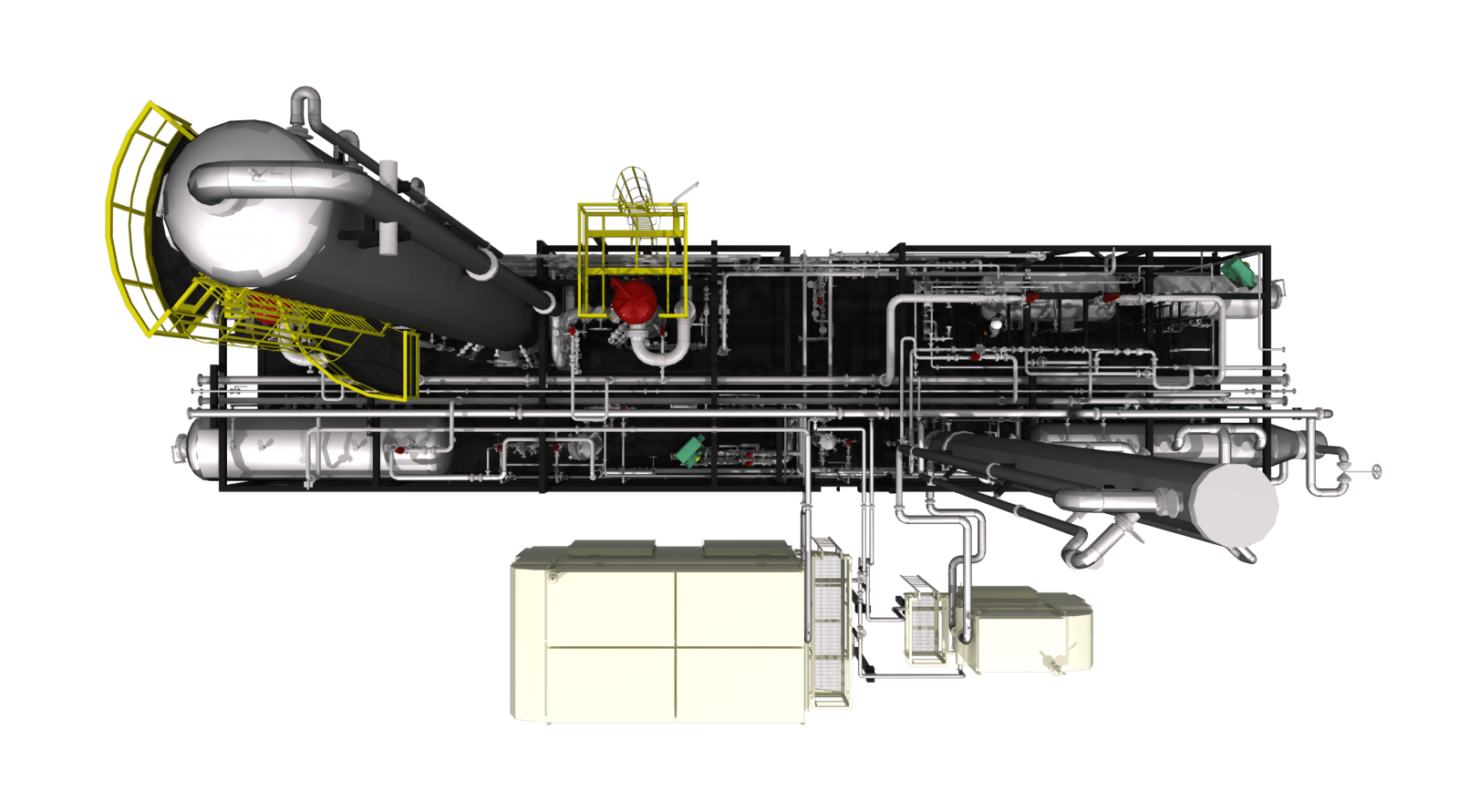

(5) 5B1306 Perspective TOP 15 min
(1) 5B1306 Ortho TFR 15 min (2) 5B1306 Ortho TRB 15 min (3) 5B1306 Ortho TBL 15 min (4) 5B1306 Ortho TLF 15 min (5) 5B1306 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 120 MMSCFD
  • Amine Circulation Rate: 105 gpm
  • Amine Type: HS-101
  • Absorbed Material: H2S
  • Inlet Operating Pressure: 655 psig
  • Mechanical Design Pressure: 820 psig
  • Amine Contactor Size: 72″ ID x 60′-0″ S/S
  • Regenerator Column Size: 30″ OD x 50′-0″ S/S
  • Reboiler: (Duty) 4.6 MMBtu/hr
  • Skid Size: 21′-6″ W x 88′-6″ L

Project Details

  • Unit Type: Amine Plant
  • Value: $5.0mm to $10.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2019
