NGL Recovery Refrigeration Package

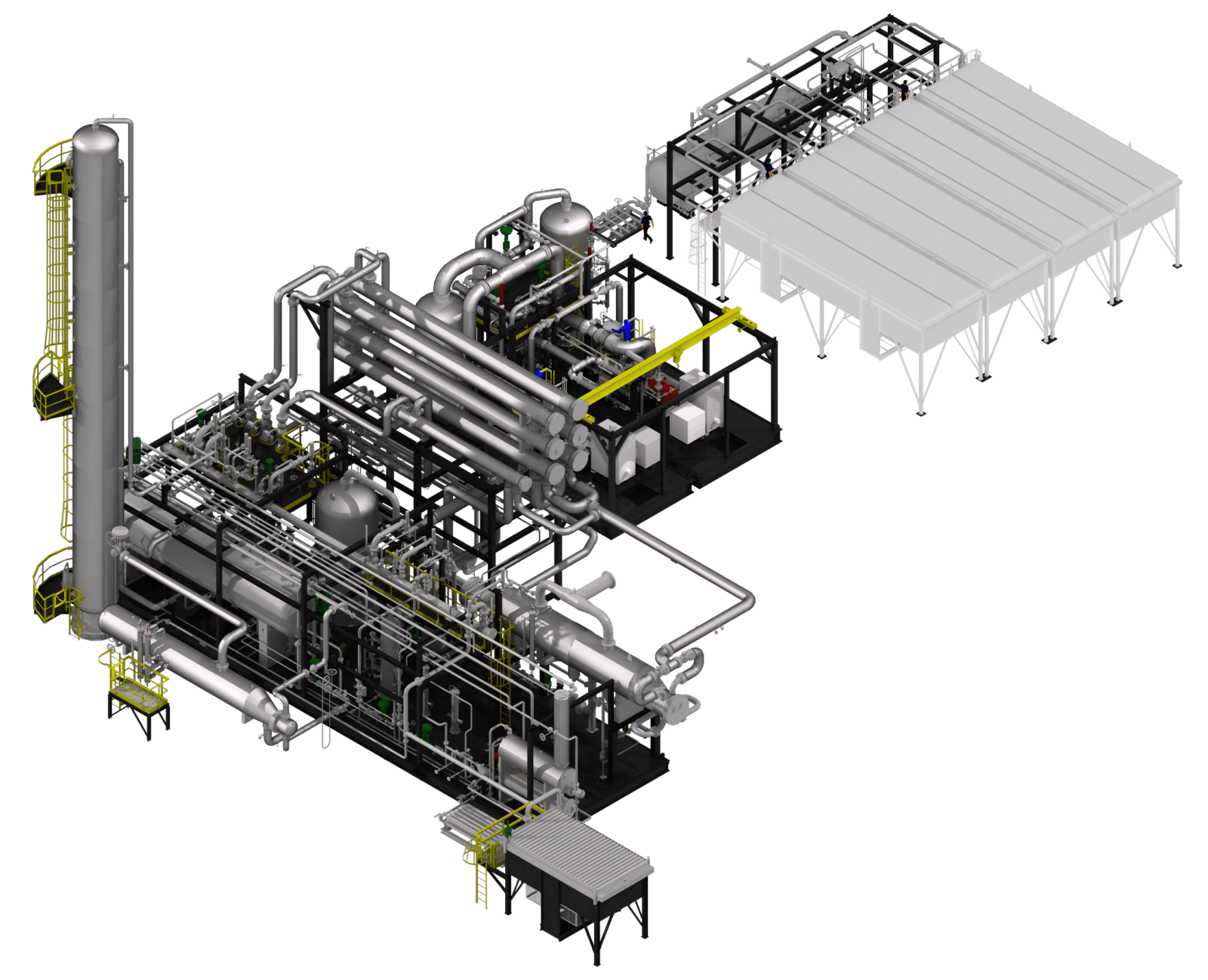

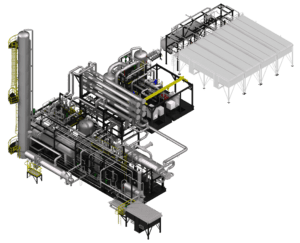

(1) 5B1305 Complete Ortho TLF 15 min

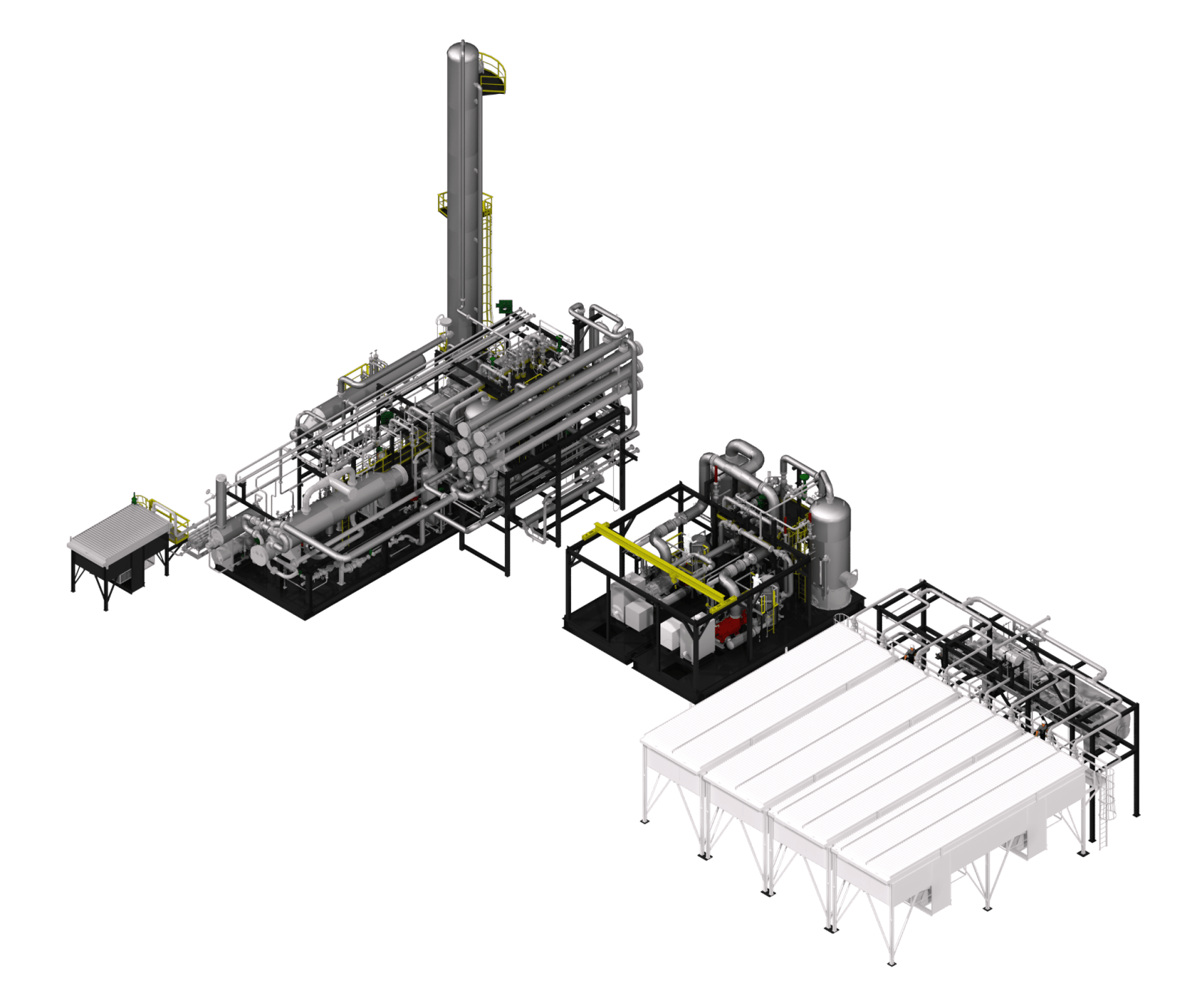

(2) 5B1305 Complete Ortho TFR 15 min

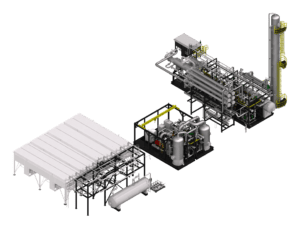

(3) 5B1305 Complete Ortho TRB 15 min

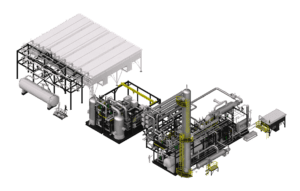

(4) 5B1305 Complete Ortho TBL 15 min

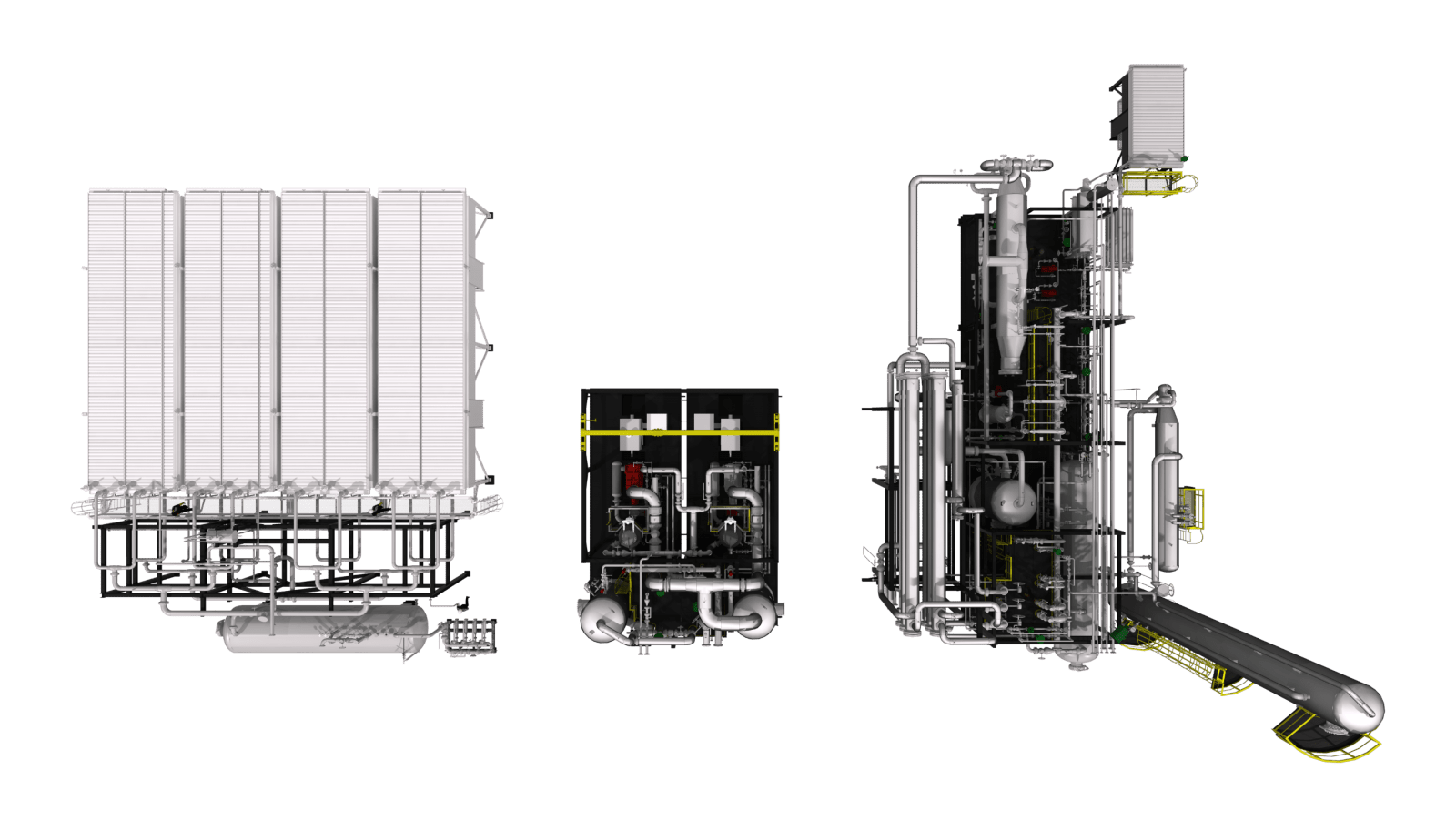

(5) 5B1305 Complete Perspective TOP 15 min
(1) 5B1305 Complete Ortho TLF 15 min (2) 5B1305 Complete Ortho TFR 15 min (3) 5B1305 Complete Ortho TRB 15 min (4) 5B1305 Complete Ortho TBL 15 min (5) 5B1305 Complete Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 120 MMSCFD
  • Service Condition: sweet
  • Inlet Operating Pressure: 655 psig
  • Mechanical Design Pressure: 820 psig
  • Refrigeration HP: (2x) 2250 hp
  • Compressor: (2) x Electric, Frick, Screw
  • DeEthanizer Flow Rate: 9,060 bbl/d
  • Tower Size: 60″ ID x 66′-0″ S/S
  • Reboiler: (Duty) 8.94 MMBtu/hr
  • Skid Size: 20′-0″ W x 65’-0″ L

Project Details

  • Unit Type: Refrigeration Plant
  • Value: $5.0 mm to $10.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2019
