Refrigeration Package

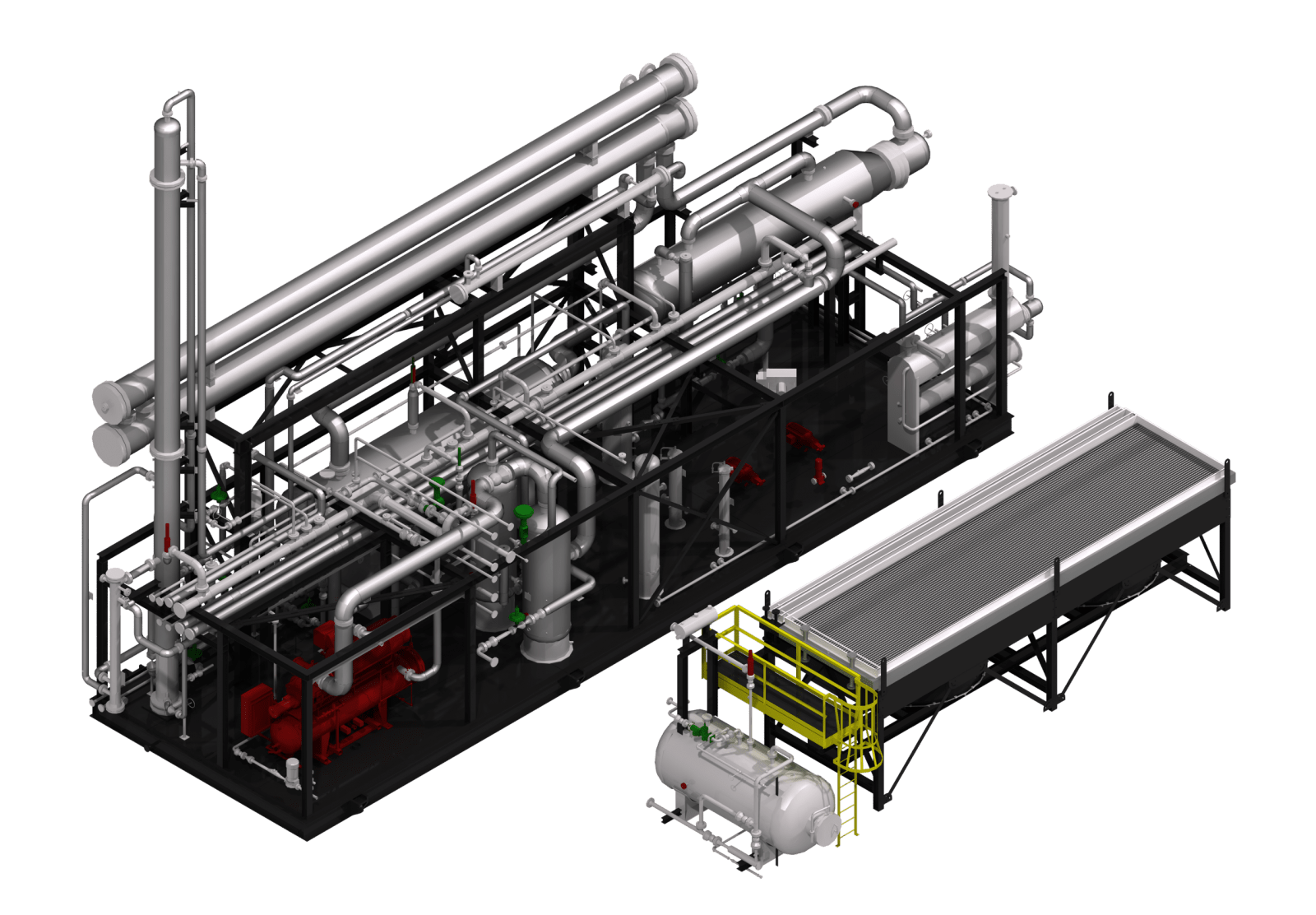

(1) 5B1247 Ortho TLF 15 min

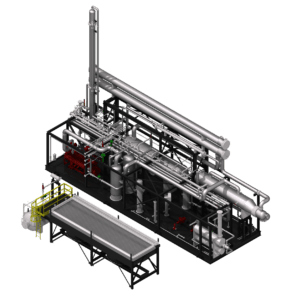

(2) 5B1247 Ortho TFR 15 min

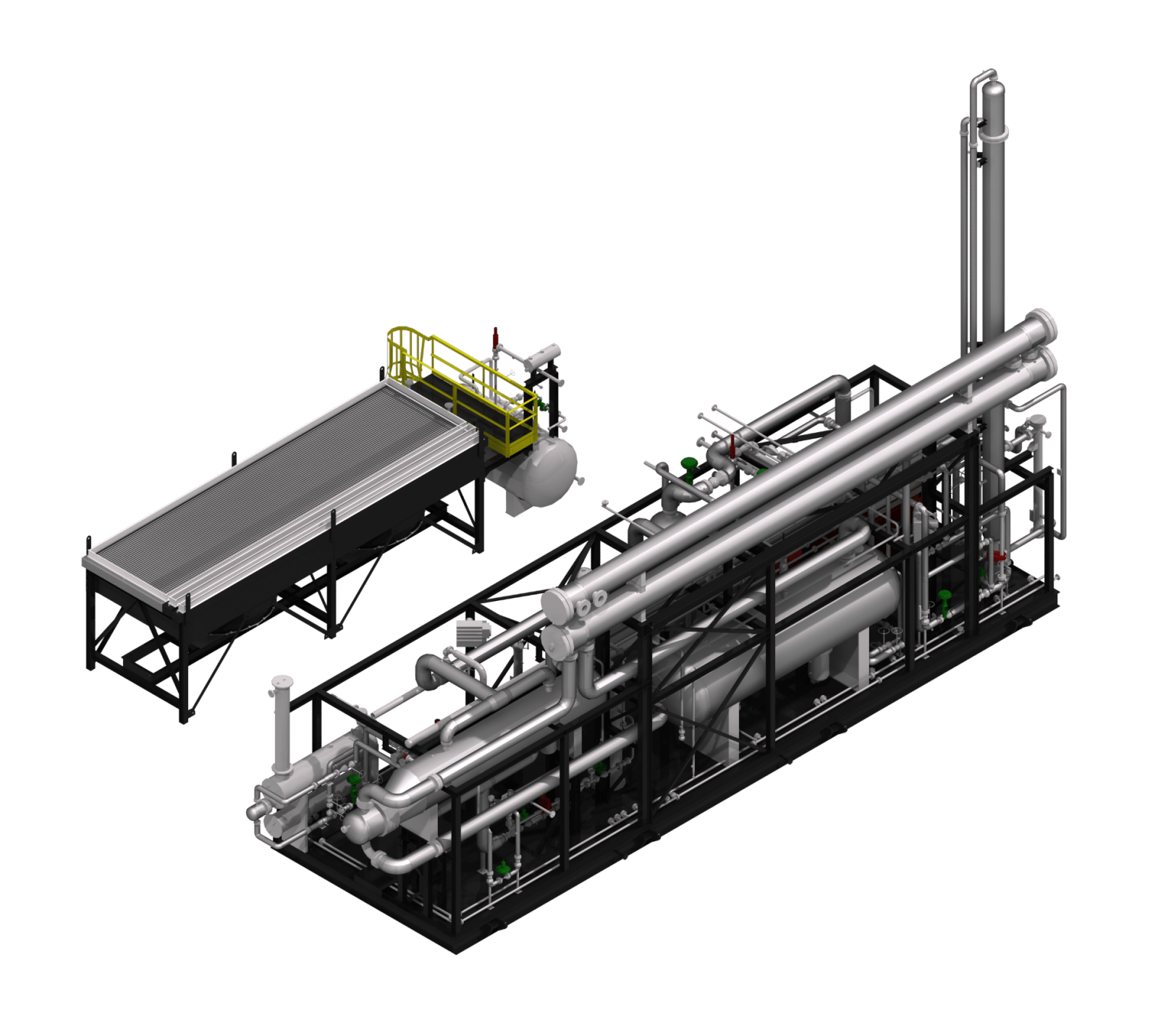

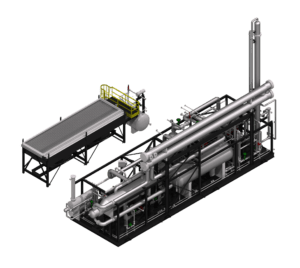

(3) 5B1247 Ortho TRB 15 min

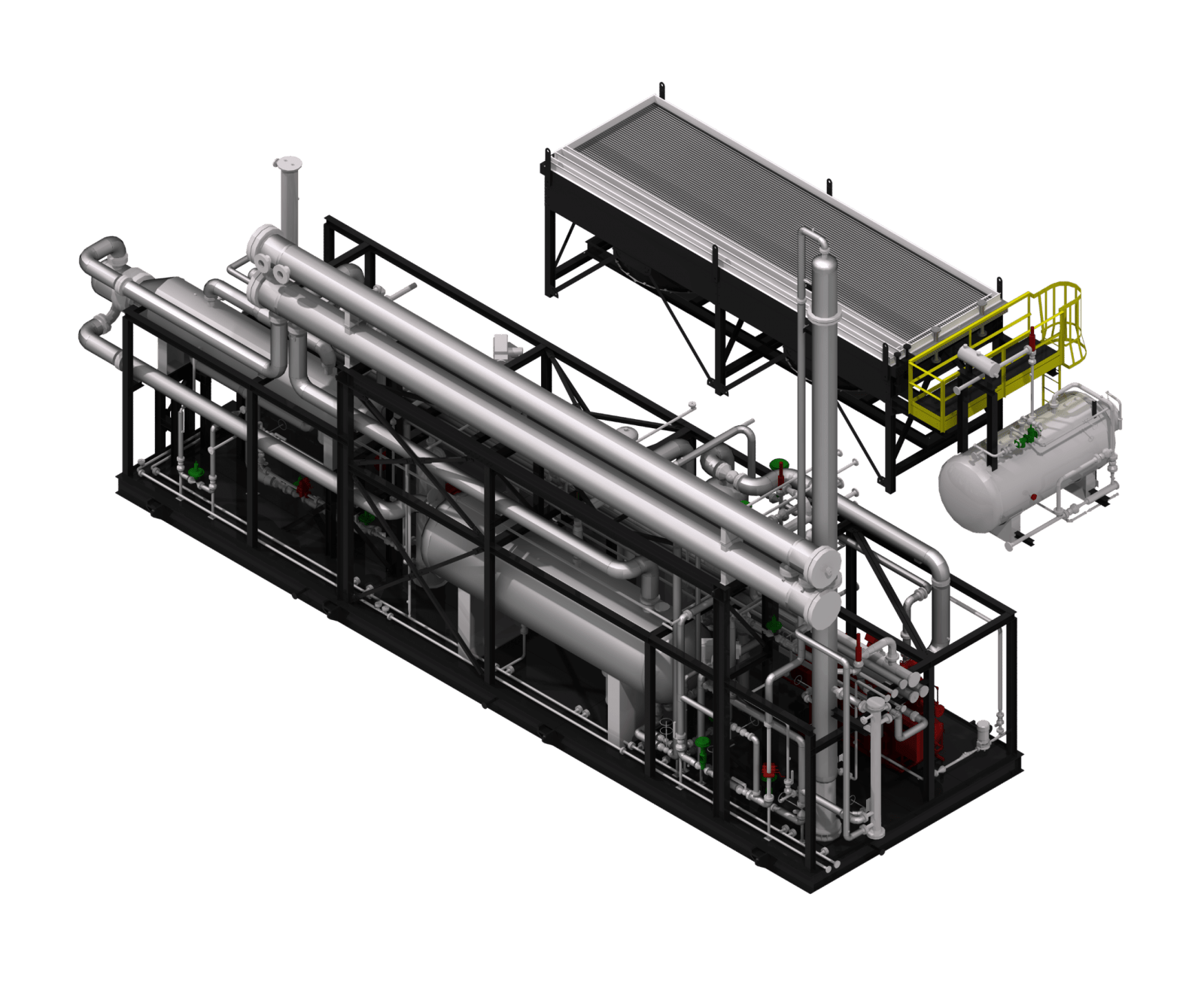

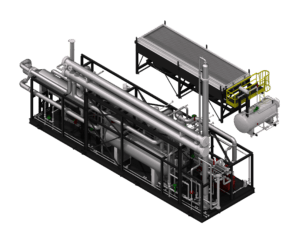

(4) 5B1247 Ortho TBL 15 min

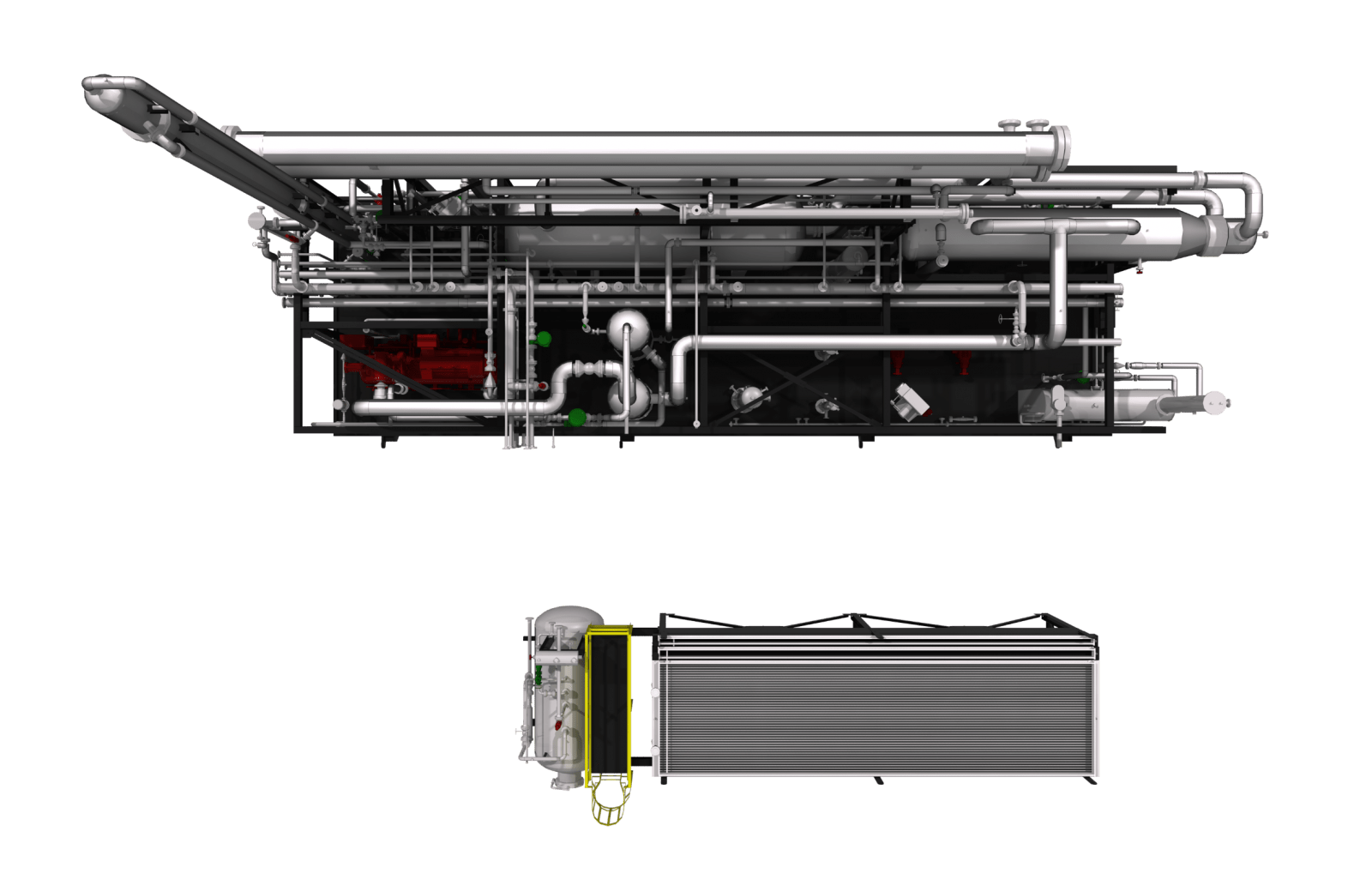

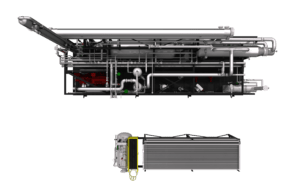

(5) 5B1247 Perspective TOP 15 min
(1) 5B1247 Ortho TLF 15 min (2) 5B1247 Ortho TFR 15 min (3) 5B1247 Ortho TRB 15 min (4) 5B1247 Ortho TBL 15 min (5) 5B1247 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 40 MMSCFD
  • Service Condition: sweet
  • Inlet Operating Pressure: 200 psig
  • Mechanical Design Pressure: 350 psig
  • Refrigeration HP: 700 hp
  • Compressor: (1) x Electric, Frick, Screw
  • DeEthanizer Flow Rate: 600 bbl/d
  • Tower Size: 18″ OD x 40’-0″ S/S
  • Reboiler: (Duty) 830,757 Btu/hr
  • Skid Size: 20′-0″ W x 65′-0″ L

Project Details

  • Unit Type: Refrigeration
  • Value: $1.0 mm to $5.0 mm
  • Location: Alberta, Canada
  • Completion Date: 2017
