Condensate Stabilizer

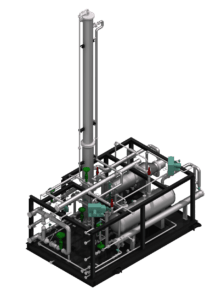

(1) 5B1246 Ortho TLF 15 min

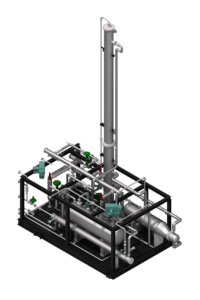

(2) 5B1246 Ortho TFR 15 min

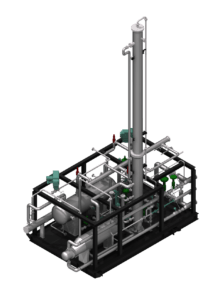

(3) 5B1246 Ortho TRB 15 min

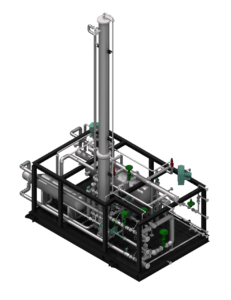

(4) 5B1246 Ortho TBL 15 min

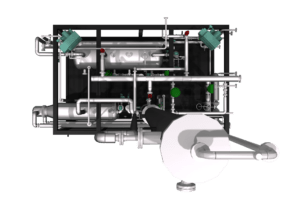

(5) 5B1246 Perspective TOP 15 min
(1) 5B1246 Ortho TLF 15 min (2) 5B1246 Ortho TFR 15 min (3) 5B1246 Ortho TRB 15 min (4) 5B1246 Ortho TBL 15 min (5) 5B1246 Perspective TOP 15 min

Product Specs

  • Hydrocarbon Flow Rate: 1000 bbl/d
  • Service Condition: sweet
  • Inlet Operating Pressure: 105 psig
  • Mechanical Design Pressure: 240 psig
  • Tower Size: 16″ ID or OD x 35′-0″ S/S
  • Reboiler: (Duty) 505,000 Btu/hr
  • Skid Size: 14′-0″ W x 22′-0″ L

Project Details

  • Unit Type: Condensate Stabilizer
  • Value: $0 to $1.0 mm
  • Location: Alberta, Canada
  • Completion Date: 2017
