Refrigeration Plant

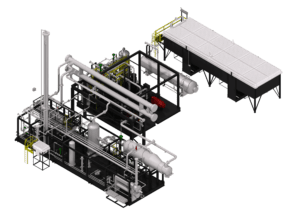

(1) 5B1227 Ortho TFR 15 min

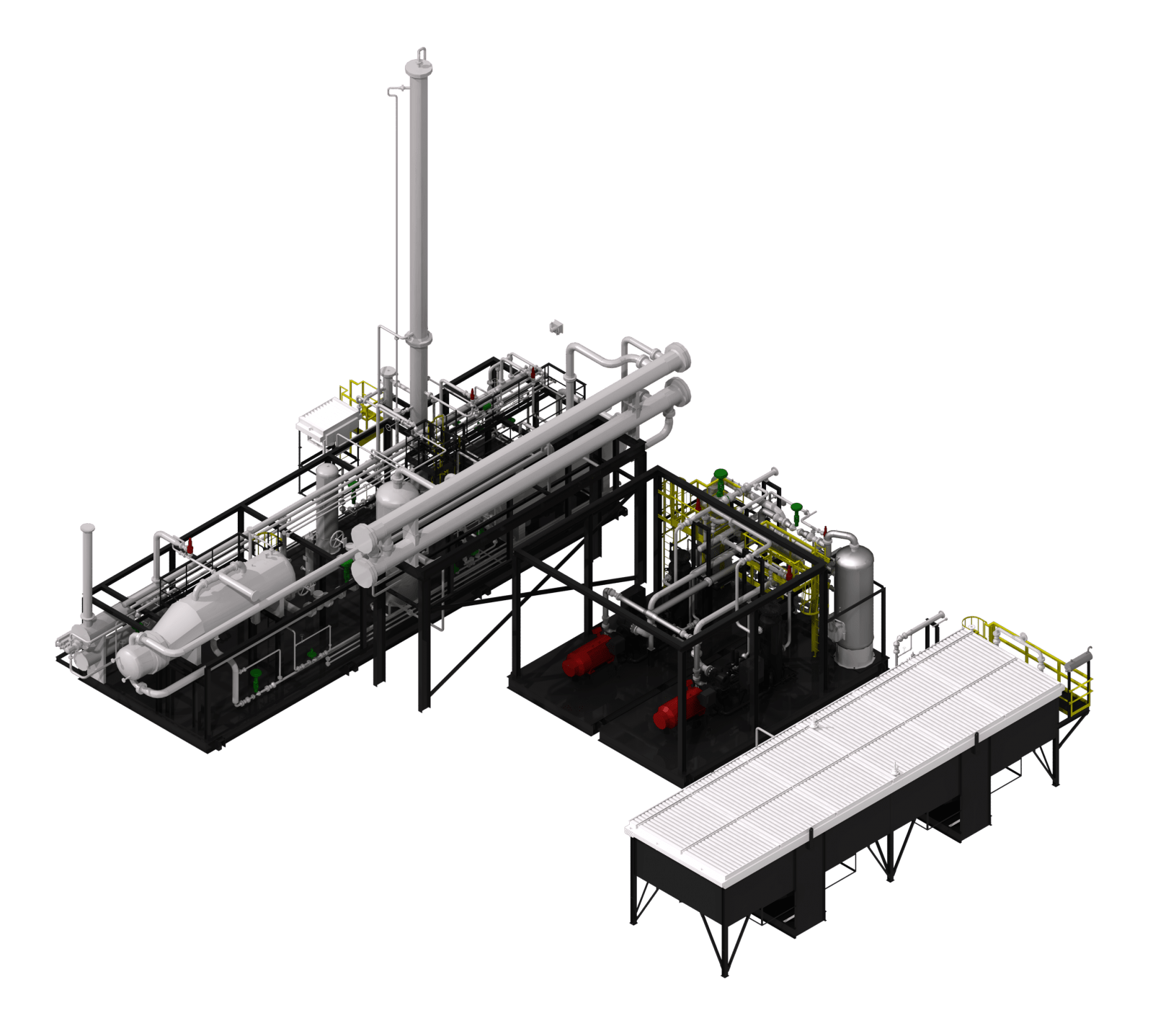

(2) 5B1227 Ortho TRB 15 min

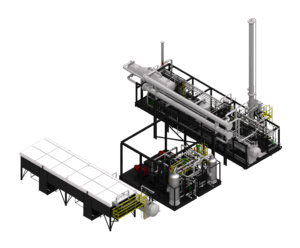

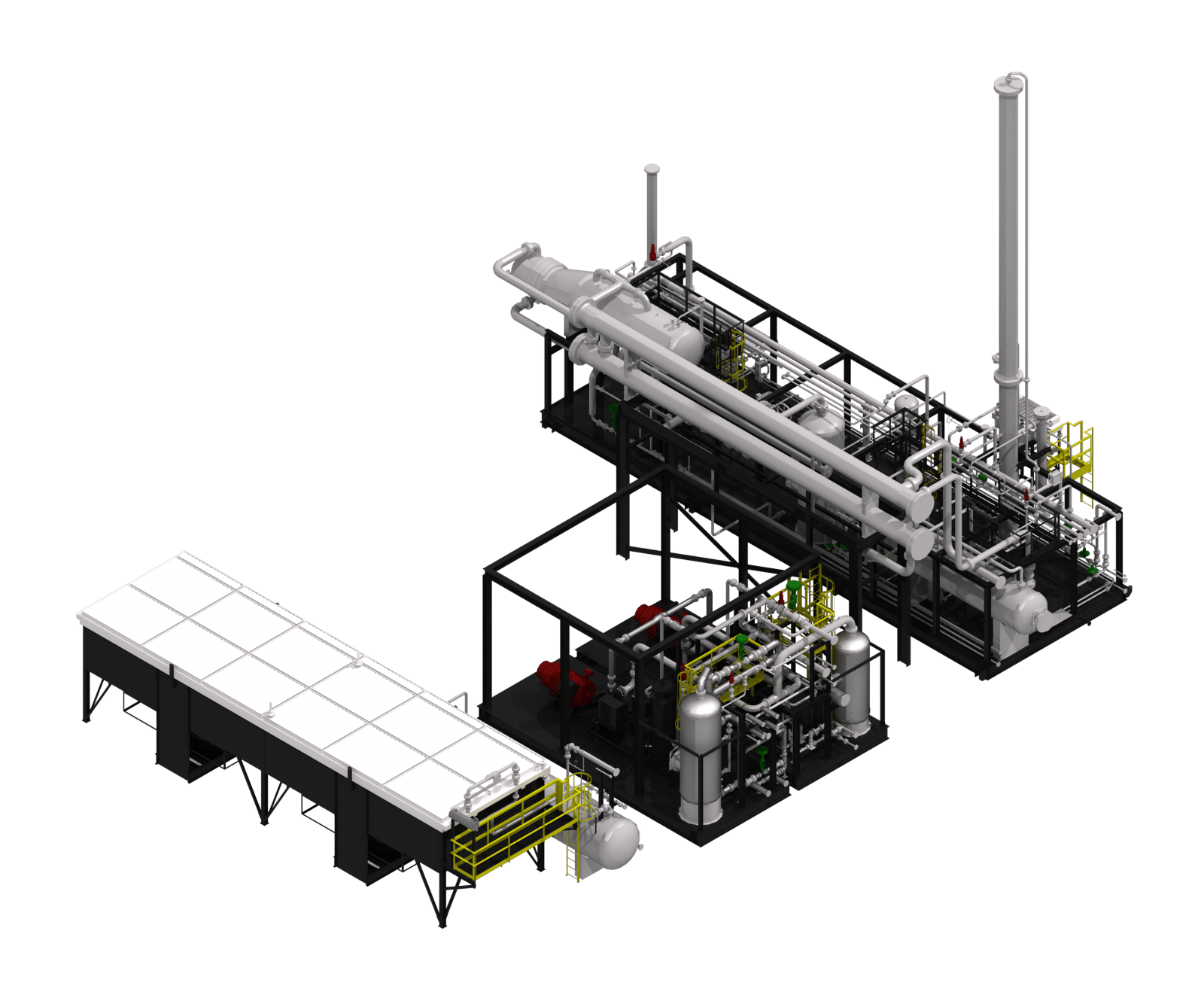

(3) 5B1227 Ortho TBL 15 min

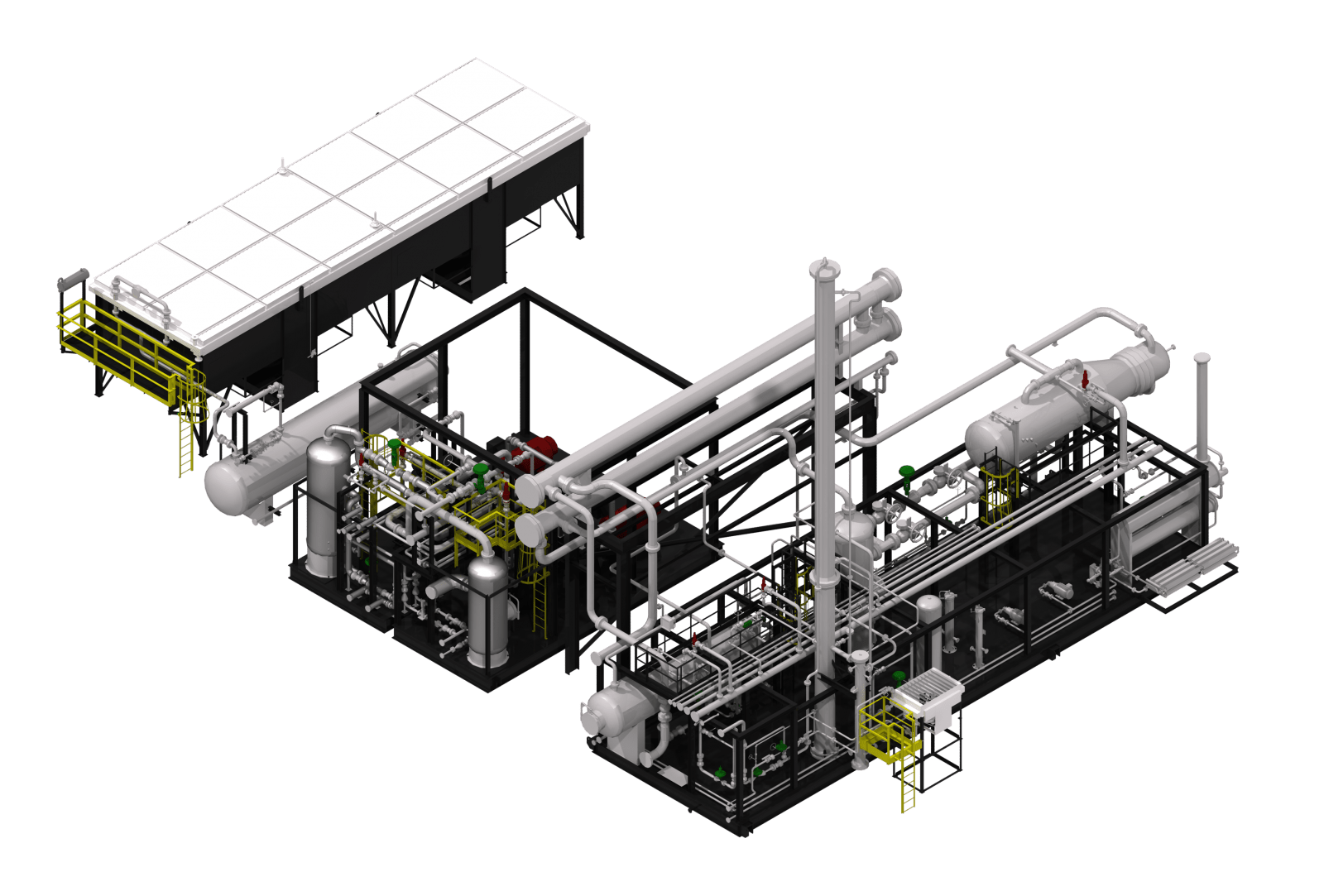

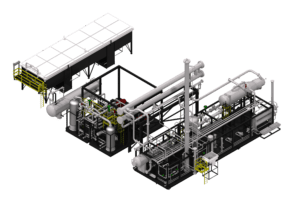

(4) 5B1227 Ortho TLF 15 min

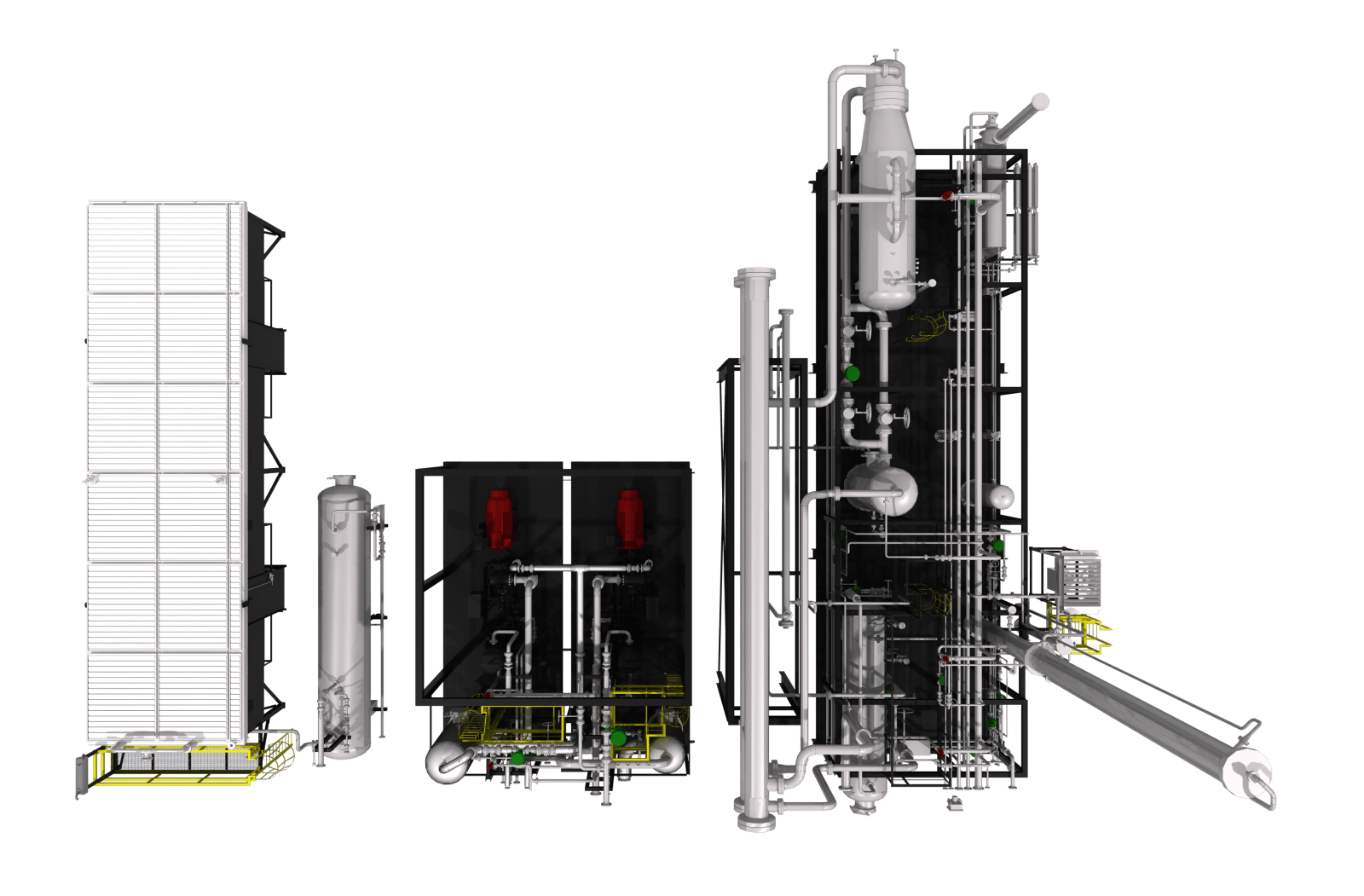

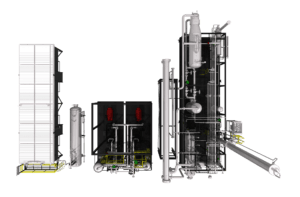

(5) 5B1227 Perspective TOP 15 min
(1) 5B1227 Ortho TFR 15 min (2) 5B1227 Ortho TRB 15 min (3) 5B1227 Ortho TBL 15 min (4) 5B1227 Ortho TLF 15 min (5) 5B1227 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 75 MMSCFD
  • Service Condition: sweet
  • Inlet Operating Pressure: 850 psig
  • Mechanical Design Pressure: 350 psig
  • Refrigeration HP: 600 hp (x2)
  • Compressor: Frick SGC 12317 x 460/60/3 Electric, TECO, NEMA MG1
  • DeEthanizer Flow Rate: 334 bbl/d
  • Tower Size: 24″ OD x 60′-0″ S/S
  • Reboiler: NEN (Duty) MMBtu/hr 1.1
  • Skid Size: 20′-0″ W x 50′-0″ L

Project Details

  • Unit Type: Refrigeration
  • Location: Alberta, Canada
  • Value: $1.0 mm to $5.0 mm
  • Completion Date: 2017
