JT (Joule Thompson) Package

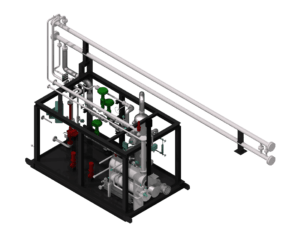

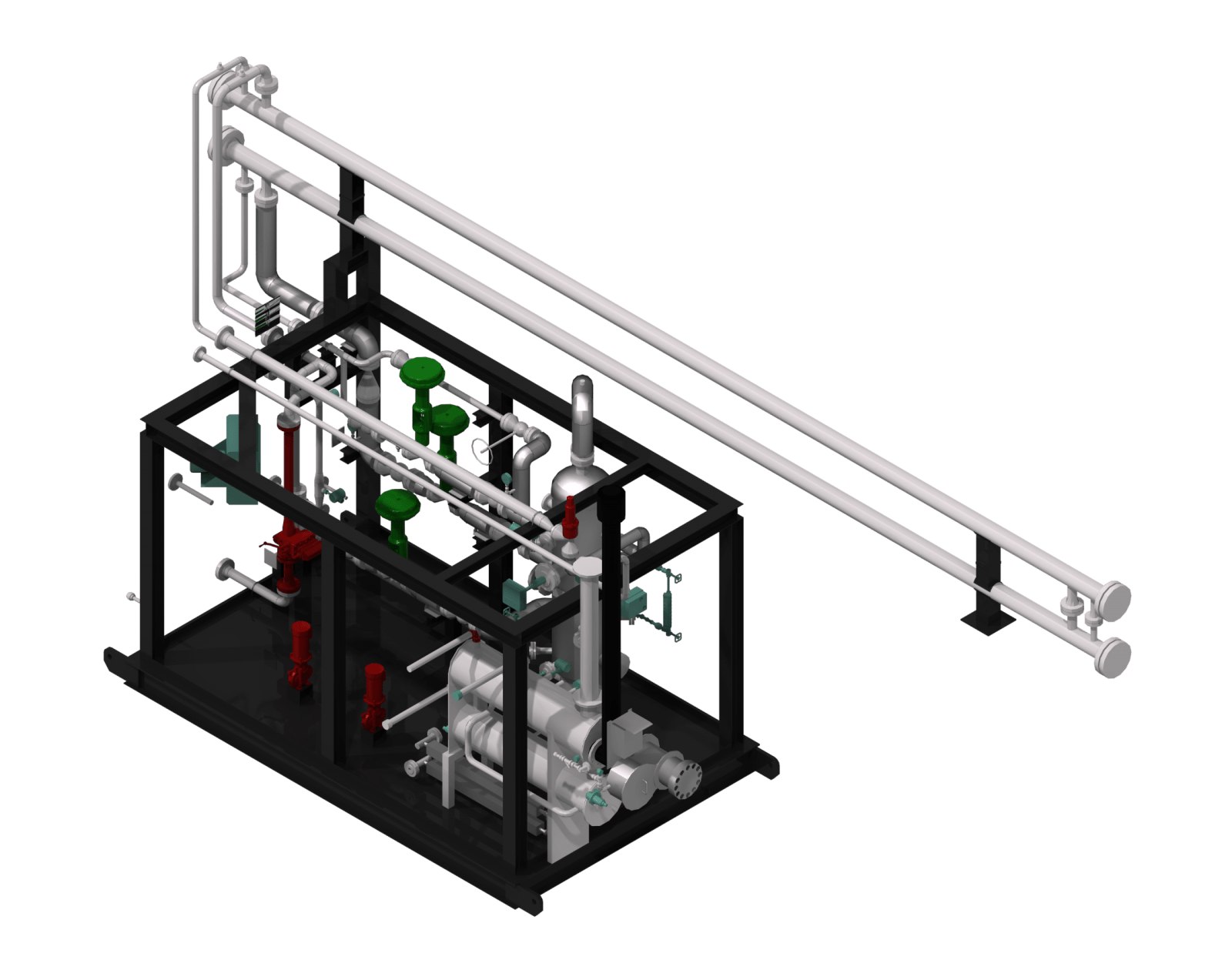

(1) 5B1170 Ortho TFR 15 min

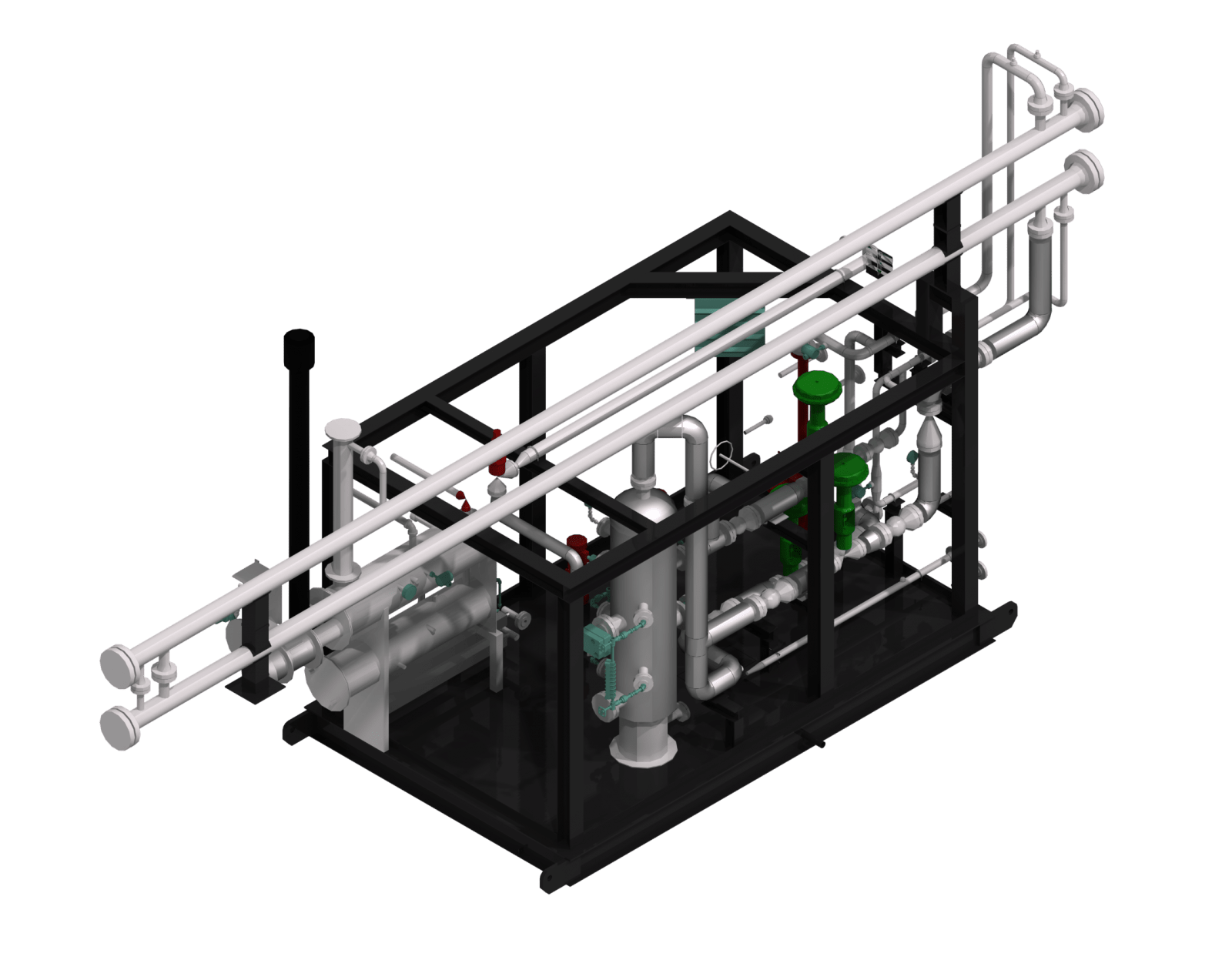

(2) 5B1170 Ortho TRB 15 min

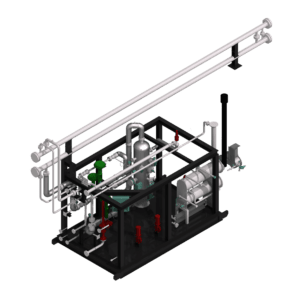

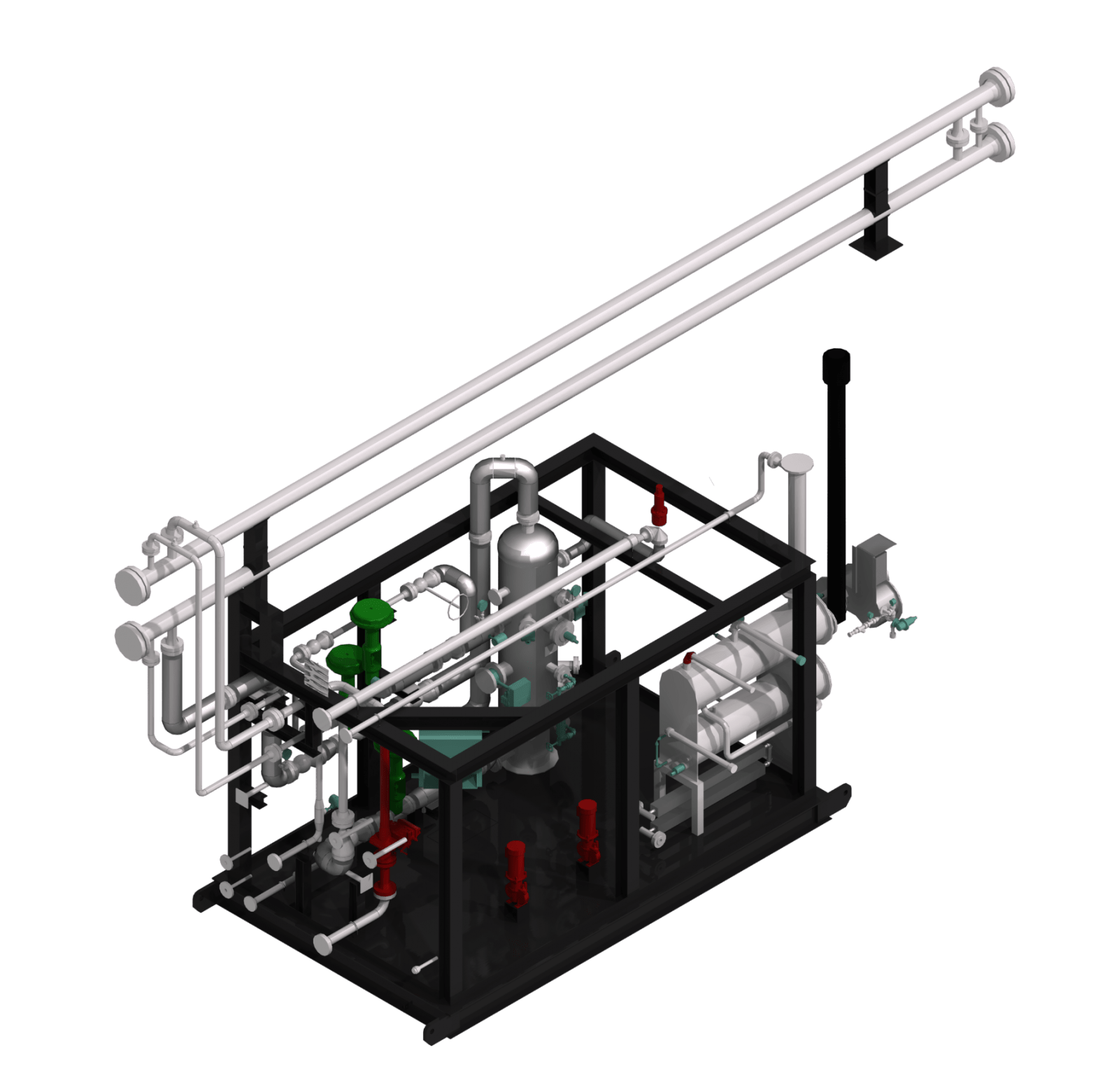

(4) 5B1170 Ortho TLF 15 min

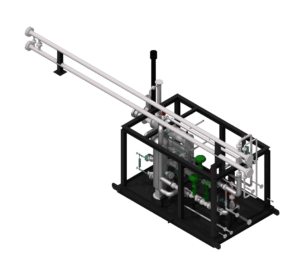

(3) 5B1170 Ortho TBL 15 min

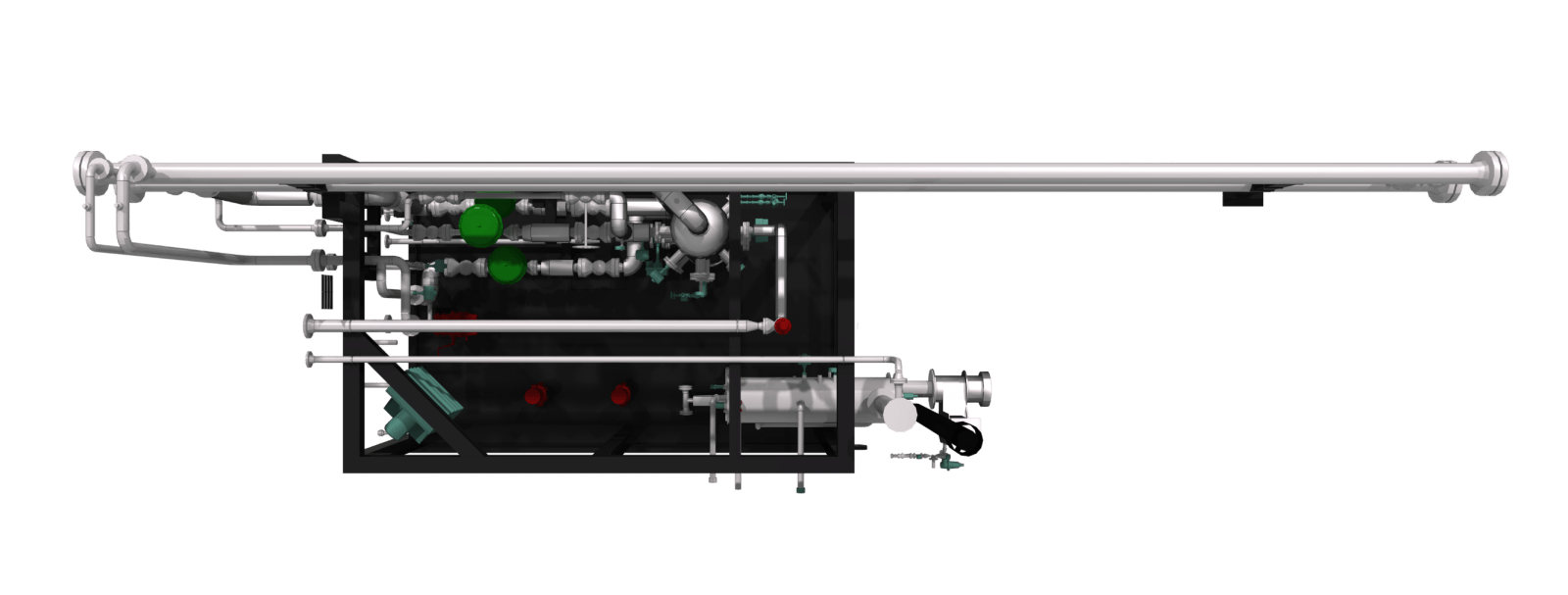

(5) 5B1170 Perspective TOP 15 min
(1) 5B1170 Ortho TFR 15 min (2) 5B1170 Ortho TRB 15 min (4) 5B1170 Ortho TLF 15 min (3) 5B1170 Ortho TBL 15 min (5) 5B1170 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 2.07 MMSCFD
  • Service Condition: Sweet
  • Inlet Operating Pressure: 940 psig
  • Mechanical Design Pressure: 1360 psig
  • Reboiler: 0.125 MMBtu/hr
  • Skid Size: 10′-0″ W x 16′-0″ L

Project Details

  • Unit Type: JT (Joule Thompson) Package
  • Value: $0.0 to $1.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2015
