Amine Plant

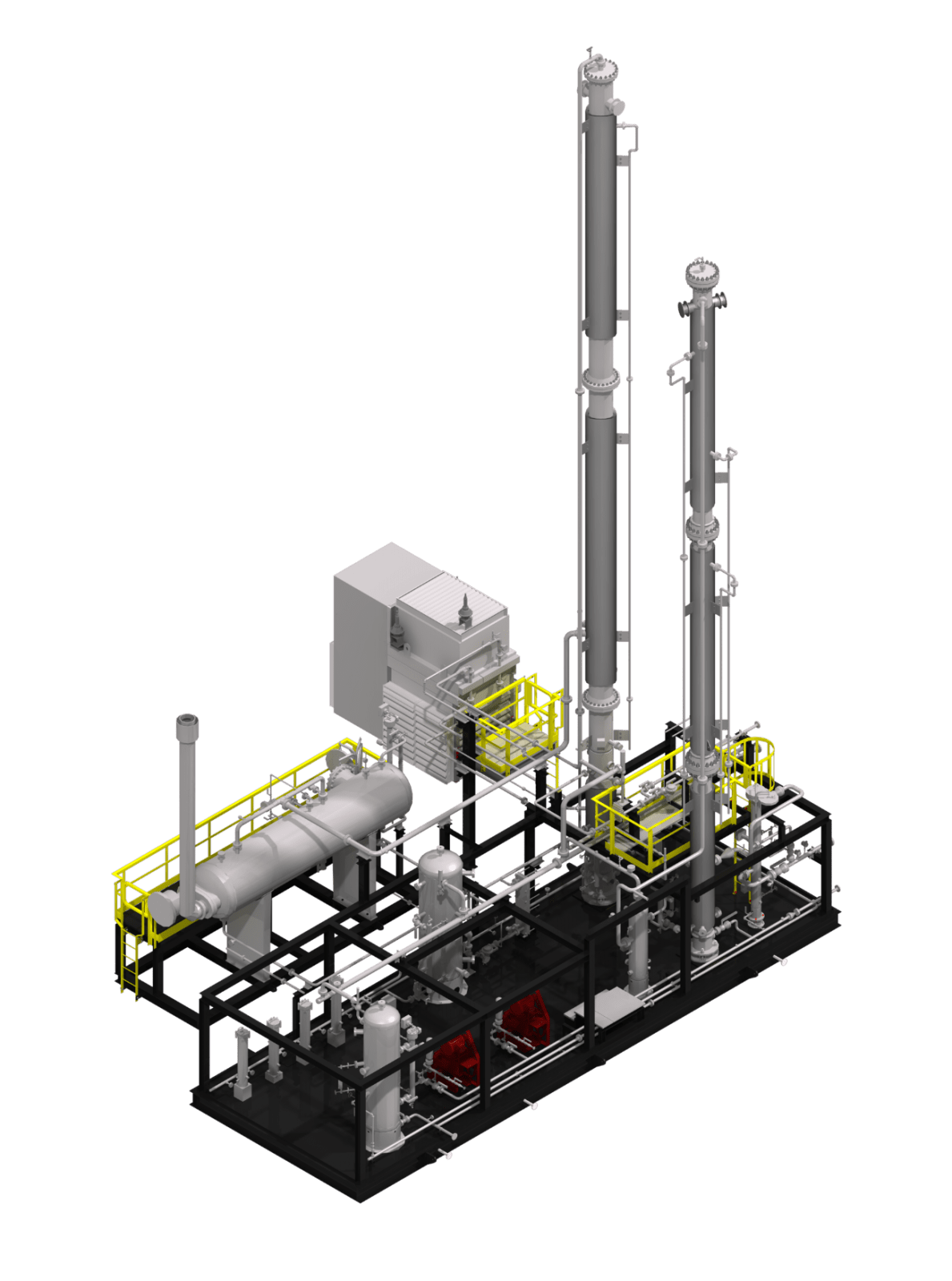

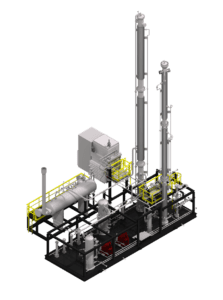

(1) 5B1167 Ortho TBL 15 min

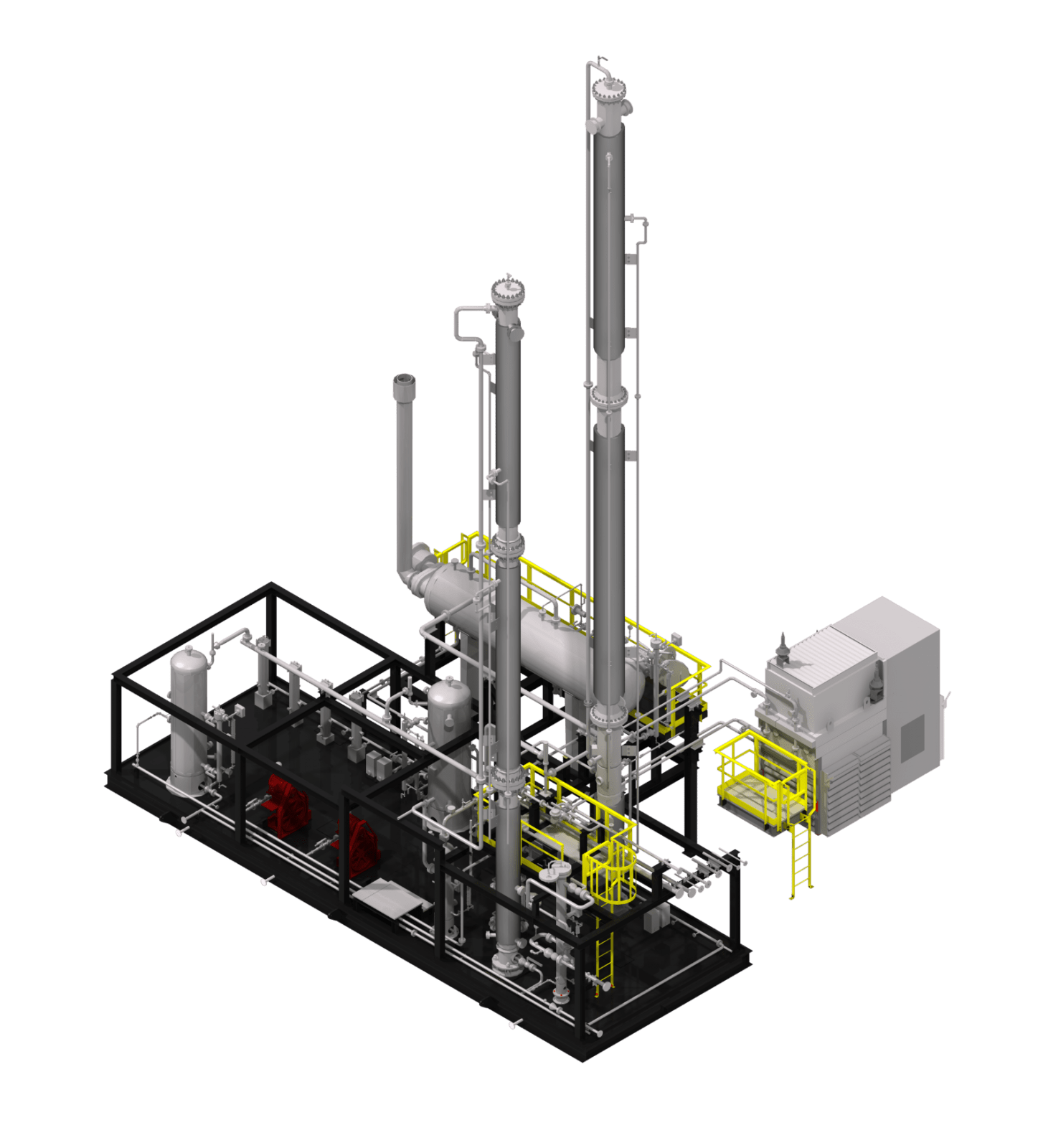

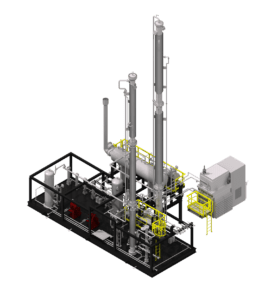

(2) 5B1167 Ortho TLF 15 min

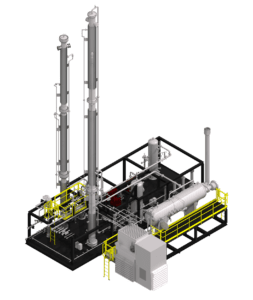

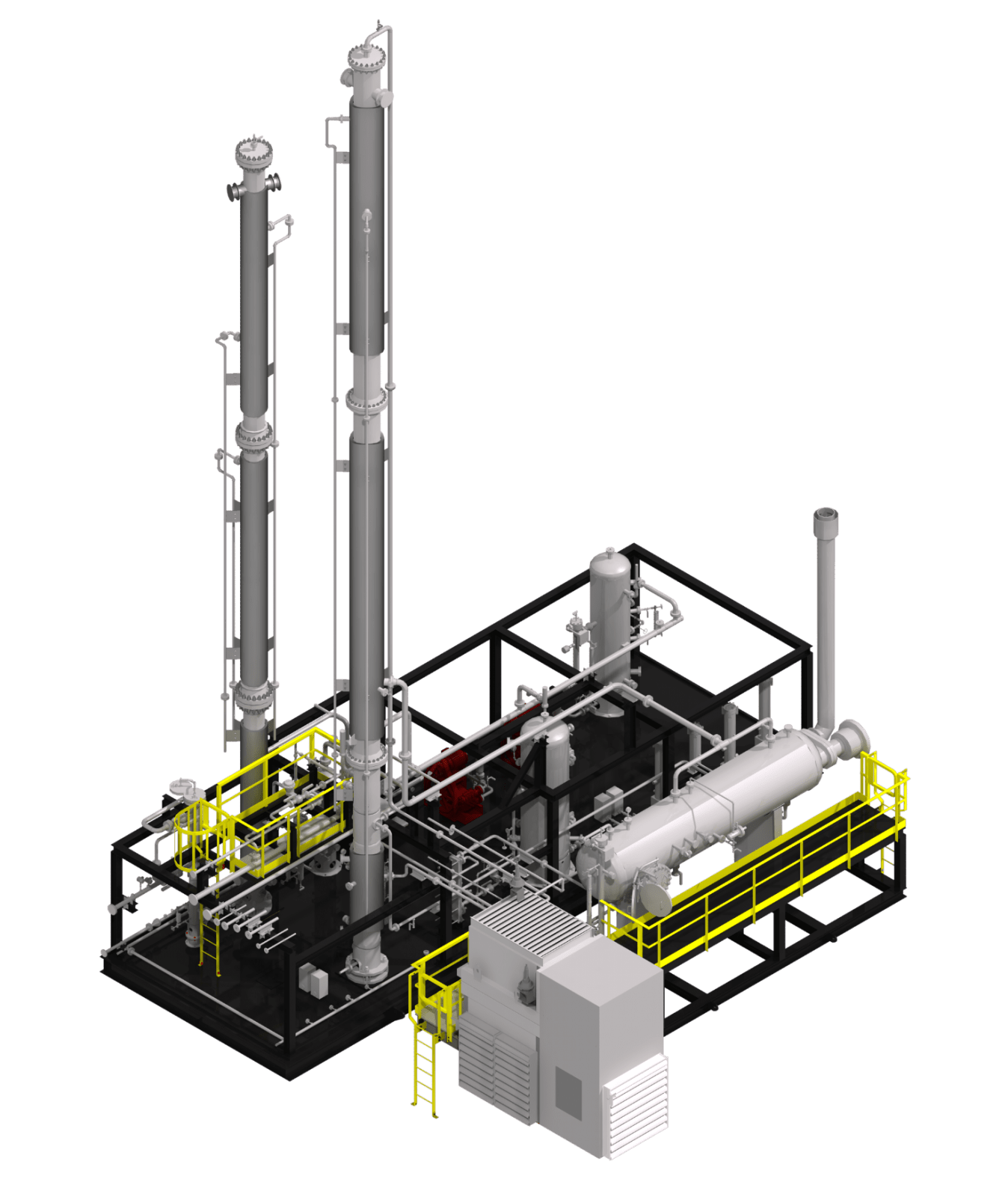

(3) 5B1167 Ortho TFR 15 min

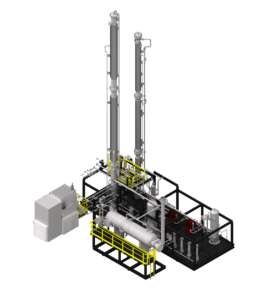

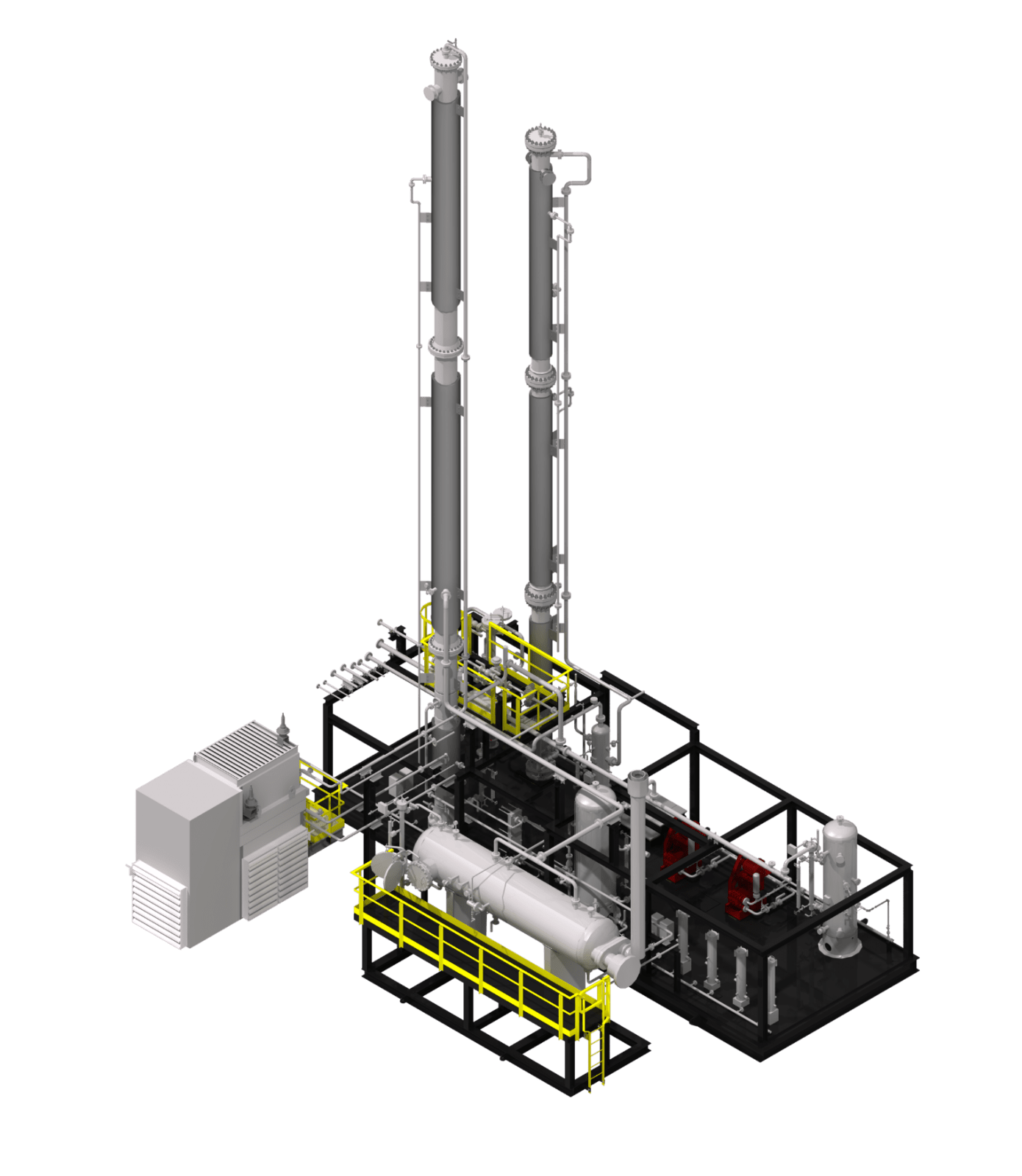

(4) 5B1167 Ortho TRB 15 min

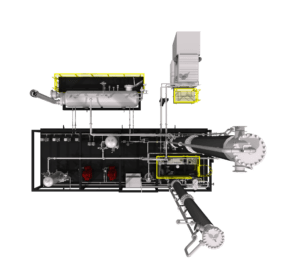

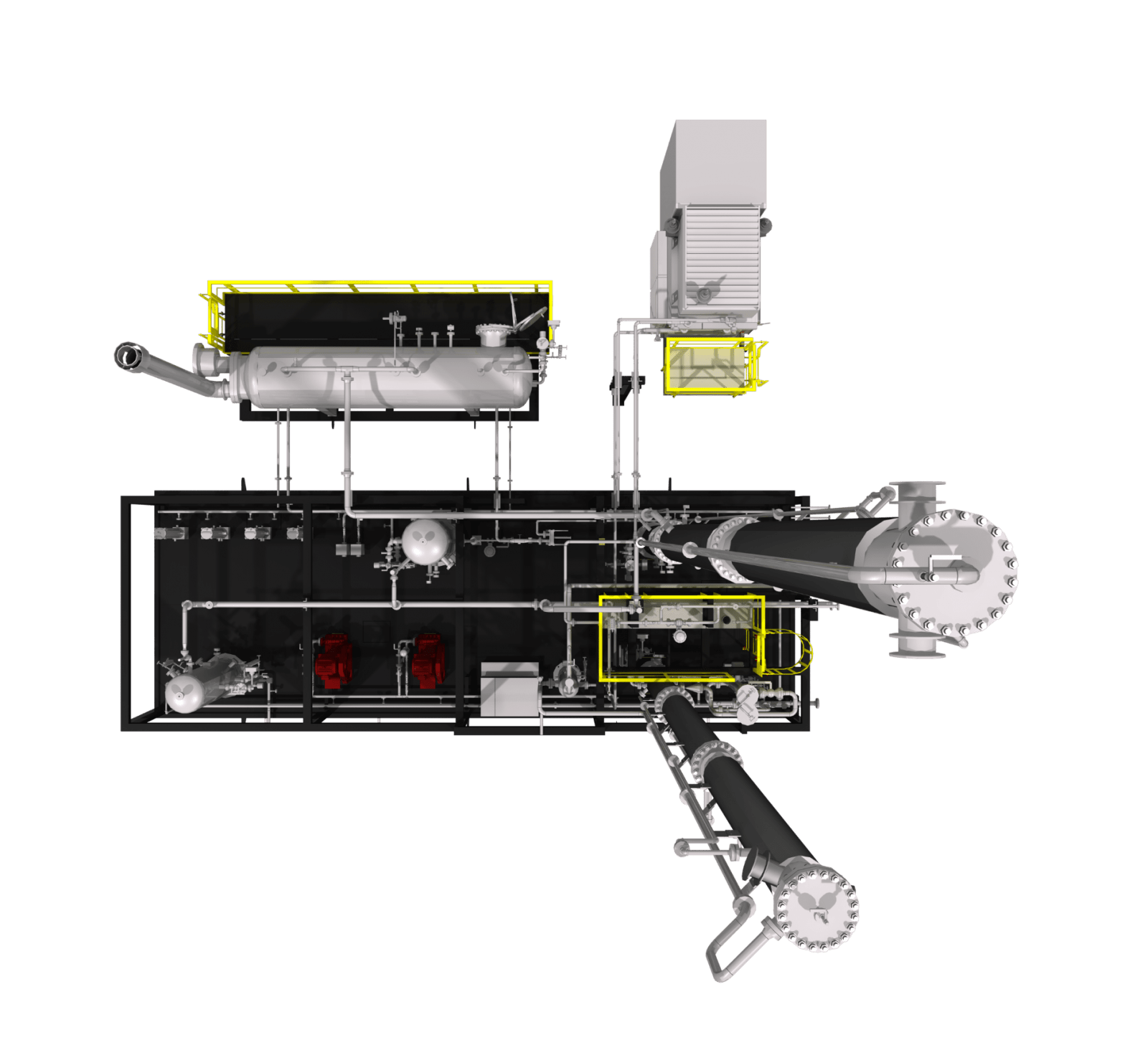

(5) 5B1167 Perspective TOP 15 min
(1) 5B1167 Ortho TBL 15 min (2) 5B1167 Ortho TLF 15 min (3) 5B1167 Ortho TFR 15 min (4) 5B1167 Ortho TRB 15 min (5) 5B1167 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 2.12 MMSCFD
  • Amine Circulation Rate: 5.50 SGPM
  • Amine Type: MS300
  • Absorbed Material: H2S
  • Inlet Operating Pressure: 950 psig
  • Mechanical Design Pressure: 1,315 psig
  • Amine Contactor Size: 16″ OD x 80′-0″ S/S
  • Regenerator Column Size: 20″ OD x 48′-0″ S/S
  • Reboiler: (Duty) 625,000 Btu/hr
  • Skid Size: 16′-0″ W x 40′-0″ L

Project Details

  • Unit Type: Amine Plant
  • Value: $1.0 mm to $5.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2015
