Glycol Dehydration Package

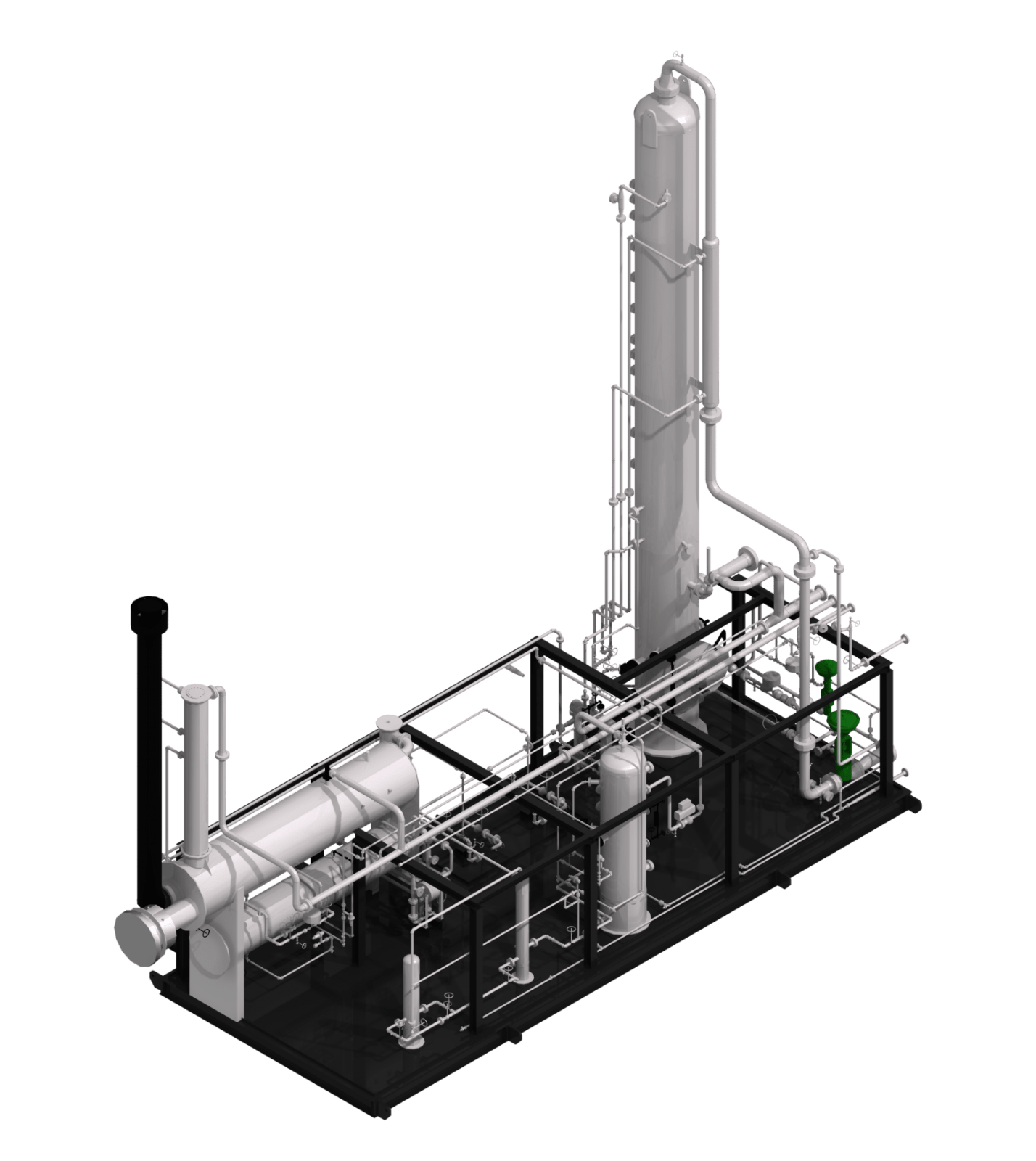

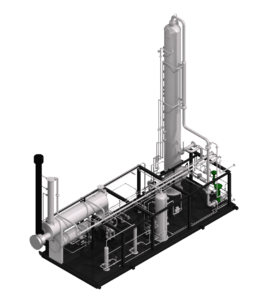

(1) 5B1164 Ortho TRB 15 min

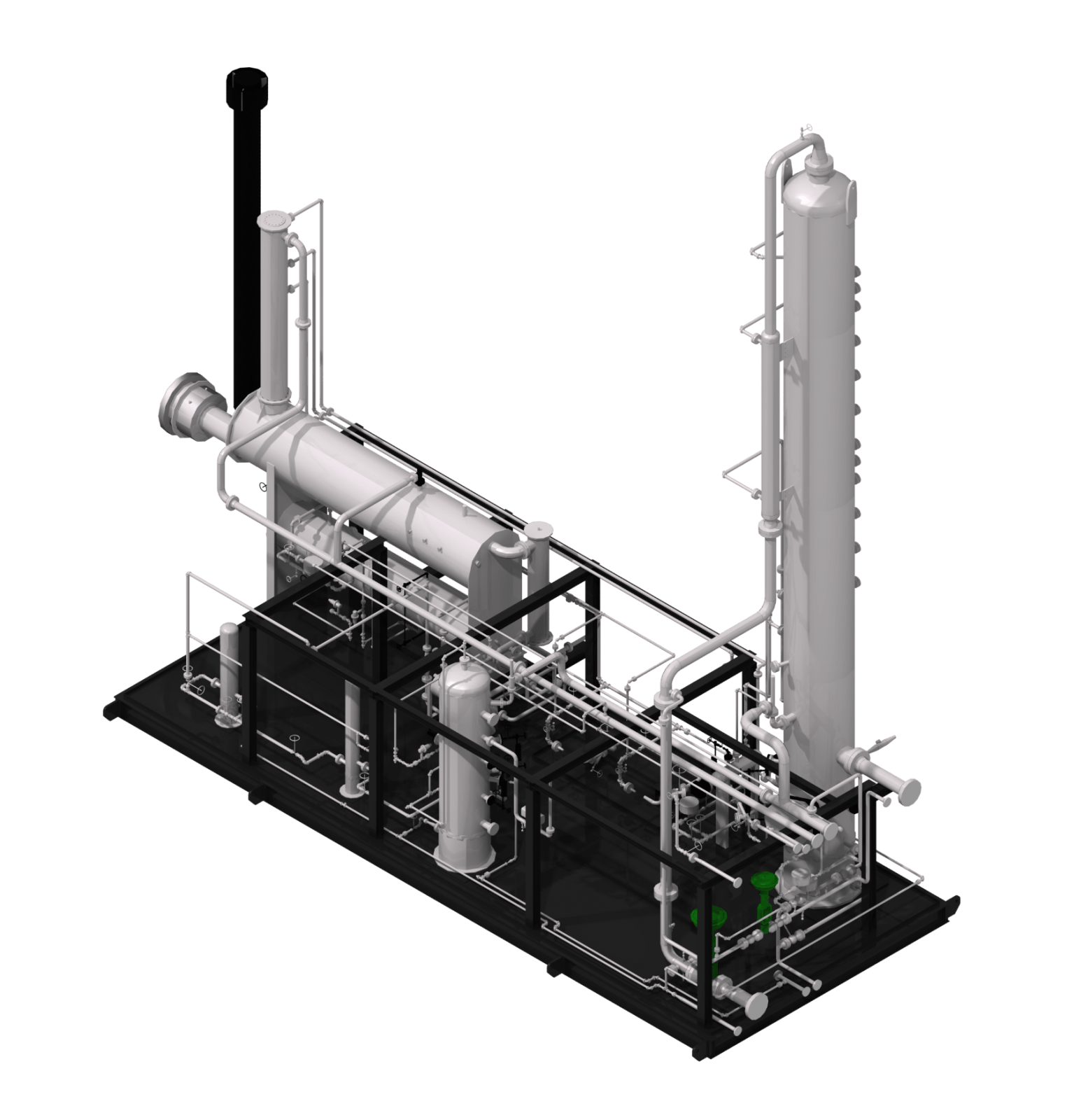

(2) 5B1164 Ortho TBL 15 min

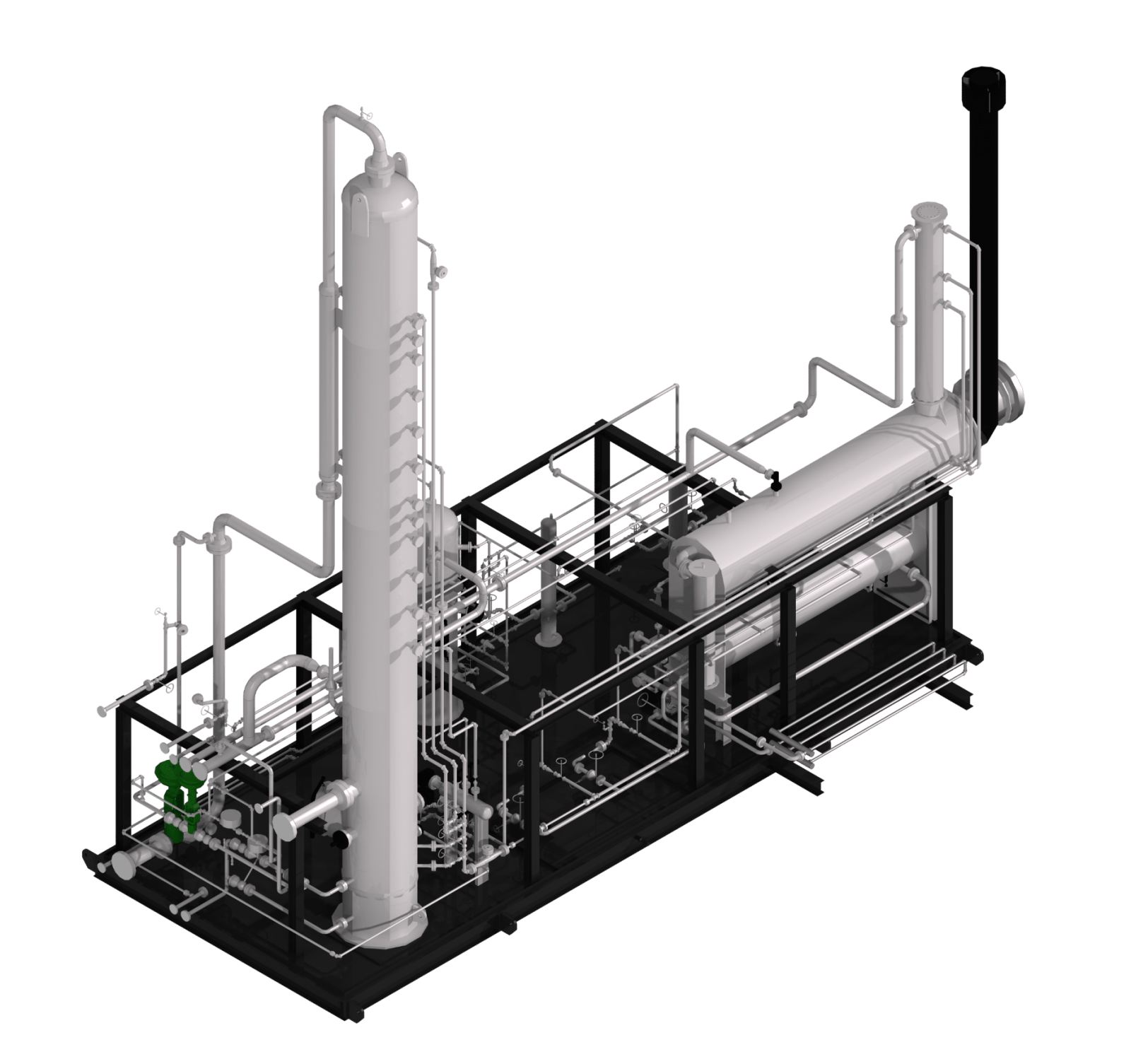

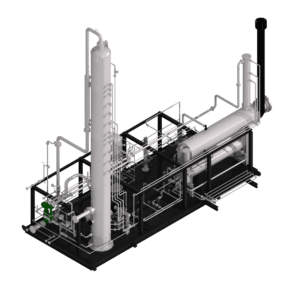

(3) 5B1164 Ortho TLF 15 min

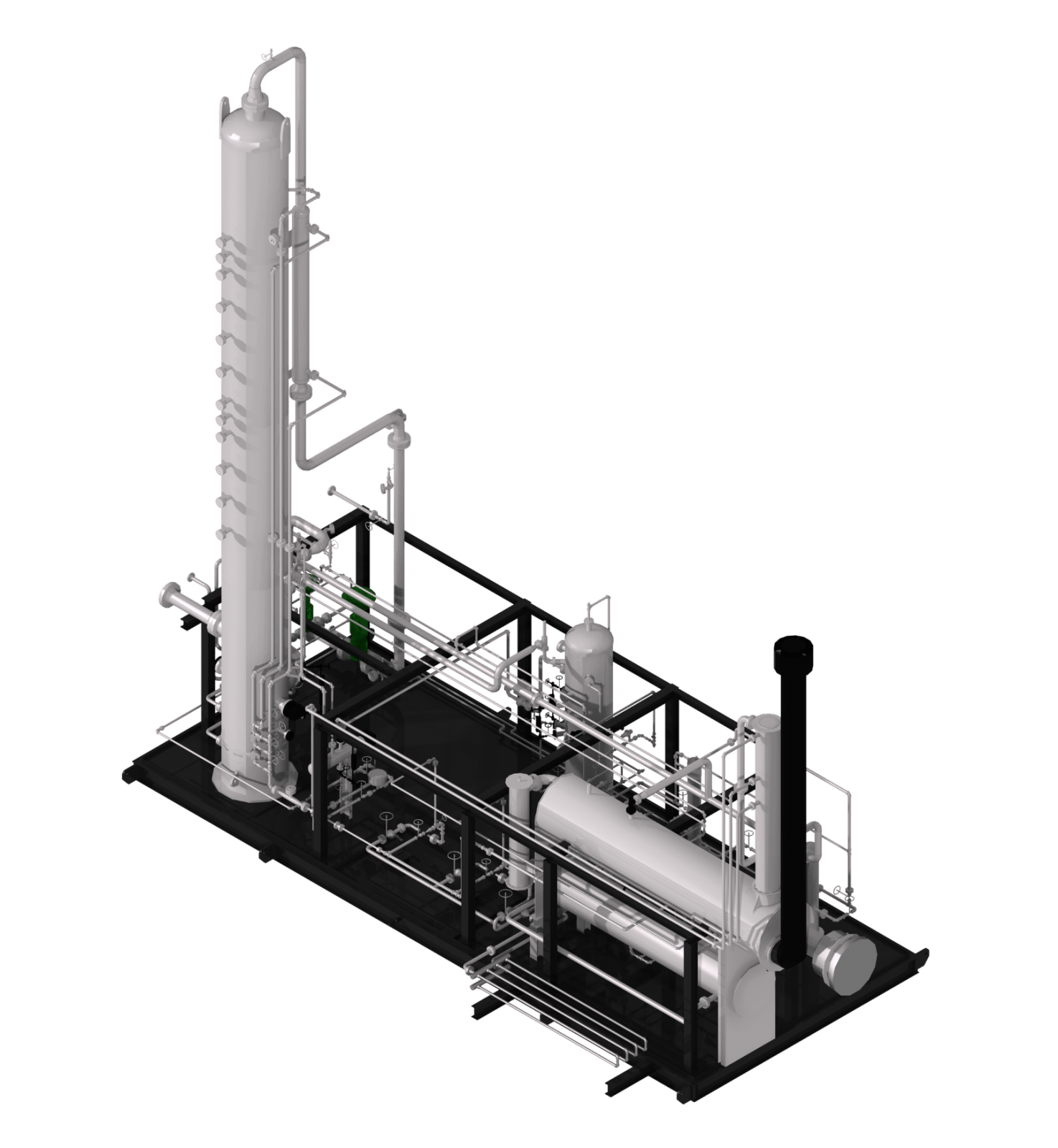

(4) 5B1164 Ortho TFR 15 min

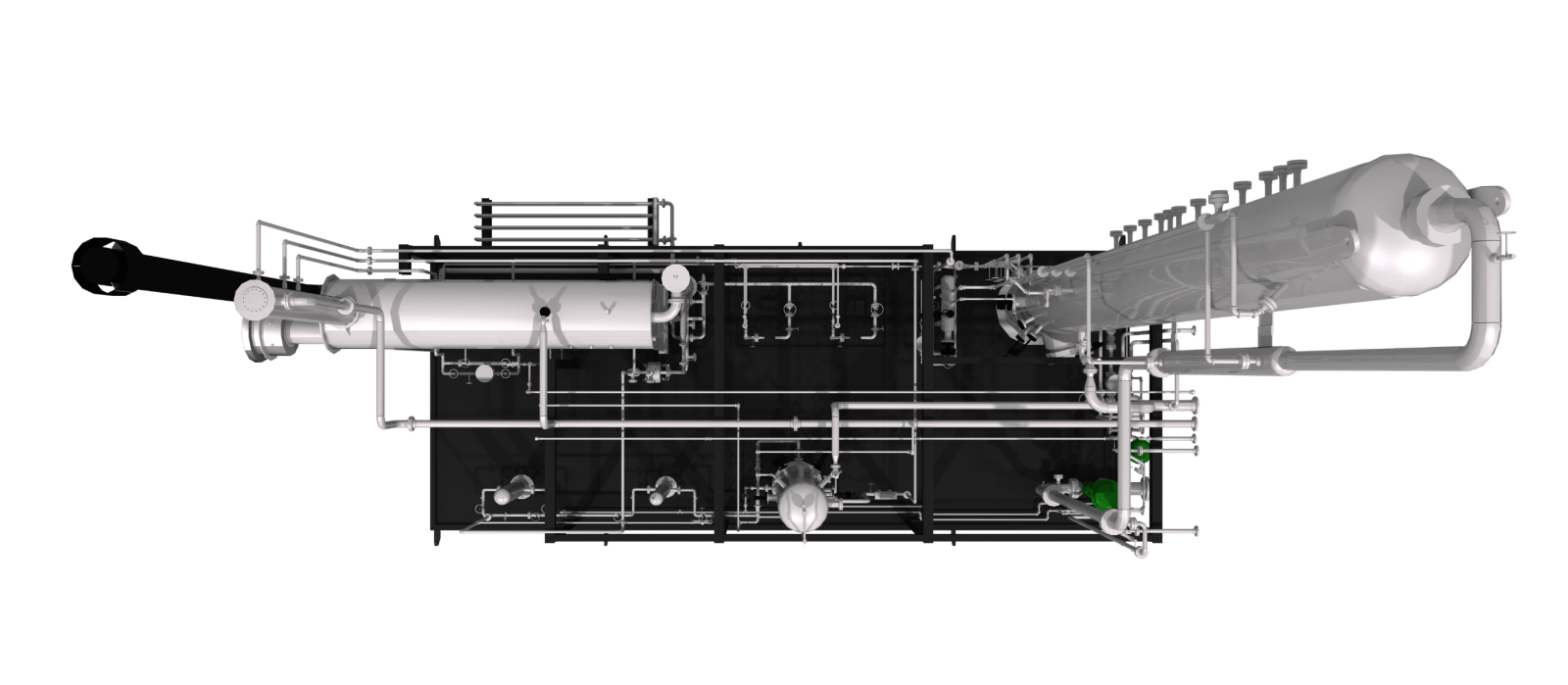

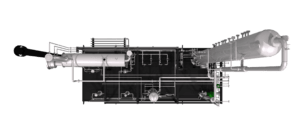

(5) 5B1164 Perspective TOP 15 min
(1) 5B1164 Ortho TRB 15 min (2) 5B1164 Ortho TBL 15 min (3) 5B1164 Ortho TLF 15 min (4) 5B1164 Ortho TFR 15 min (5) 5B1164 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 80 MMSCFD
  • Glycol Circulation Rate: 4.2 to 12.6 usgpm
  • Service Condition: sour
  • Inlet Operating Pressure: 1380 psig
  • Mechanical Design Pressure: 1440 psig
  • Glycol Contactor Size: 42″ ID x 36′-0″ S/S
  • Reboiler: (Duty) 1.5 MMBtu/hr
  • Skid Size: 14′-6″ W x 42′-0″ L

Project Details

  • Unit Type: Glycol Dehydration Package
  • Value: $1.0 mm to $5.0 mm
  • Location: British Columbia, Canada
  • Completion Date: 2015
