Condensate Stabilizer

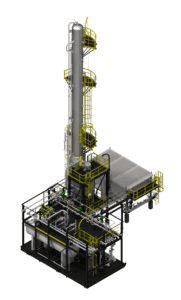

(2) 5B1095 Ortho TLF 15 min

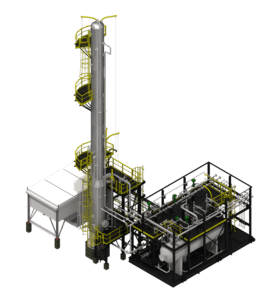

(1) 5B1095 Ortho TBL 15 min

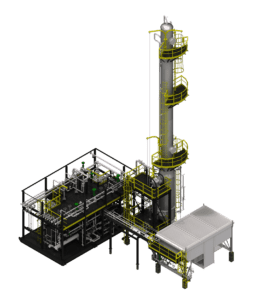

(3) 5B1095 Ortho TFR 15 min

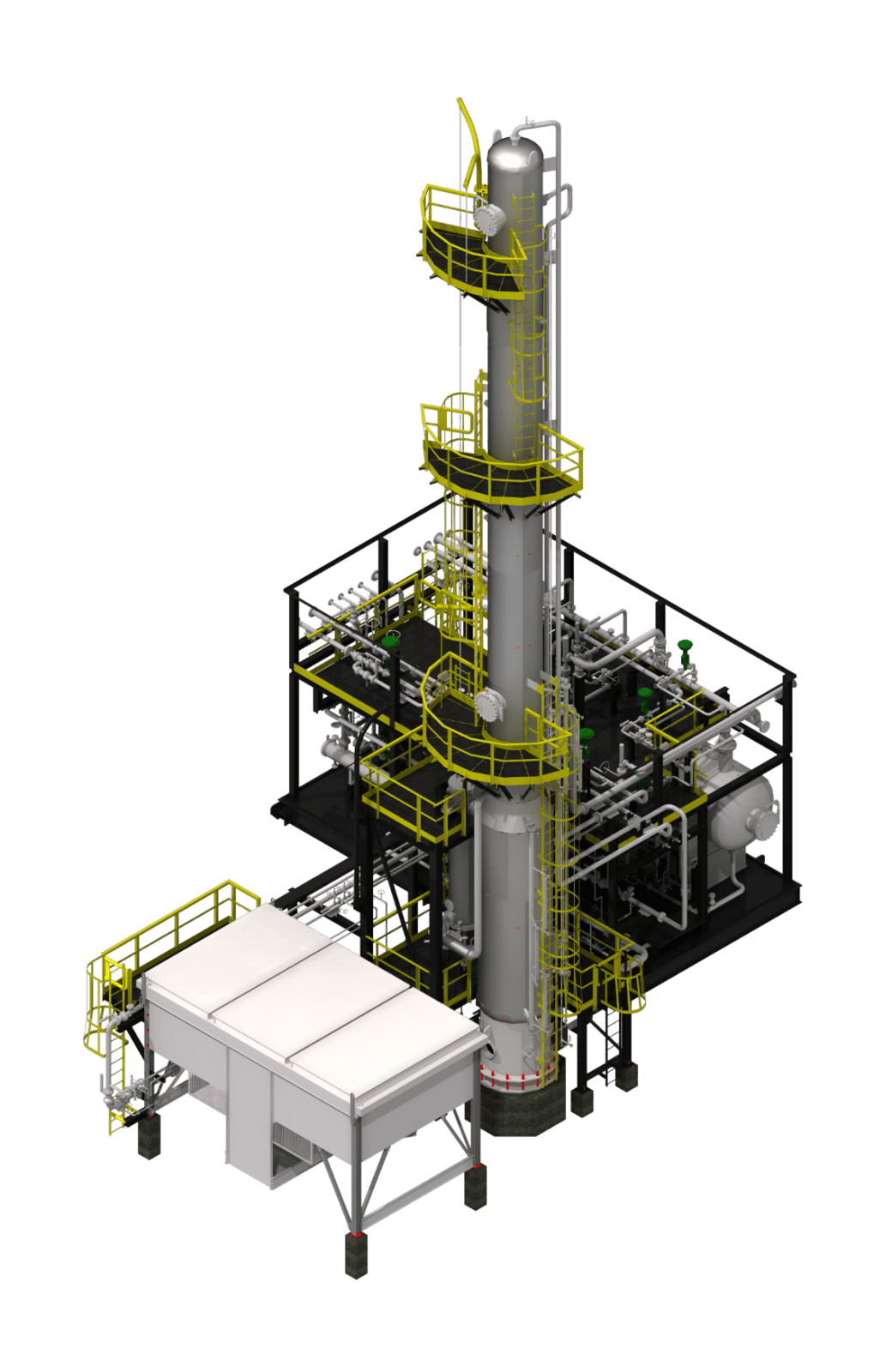

(4) 5B1095 Ortho TRB 15 min

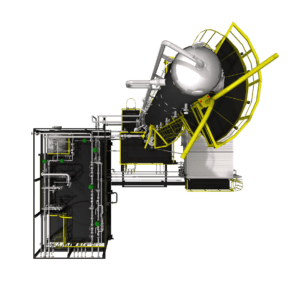

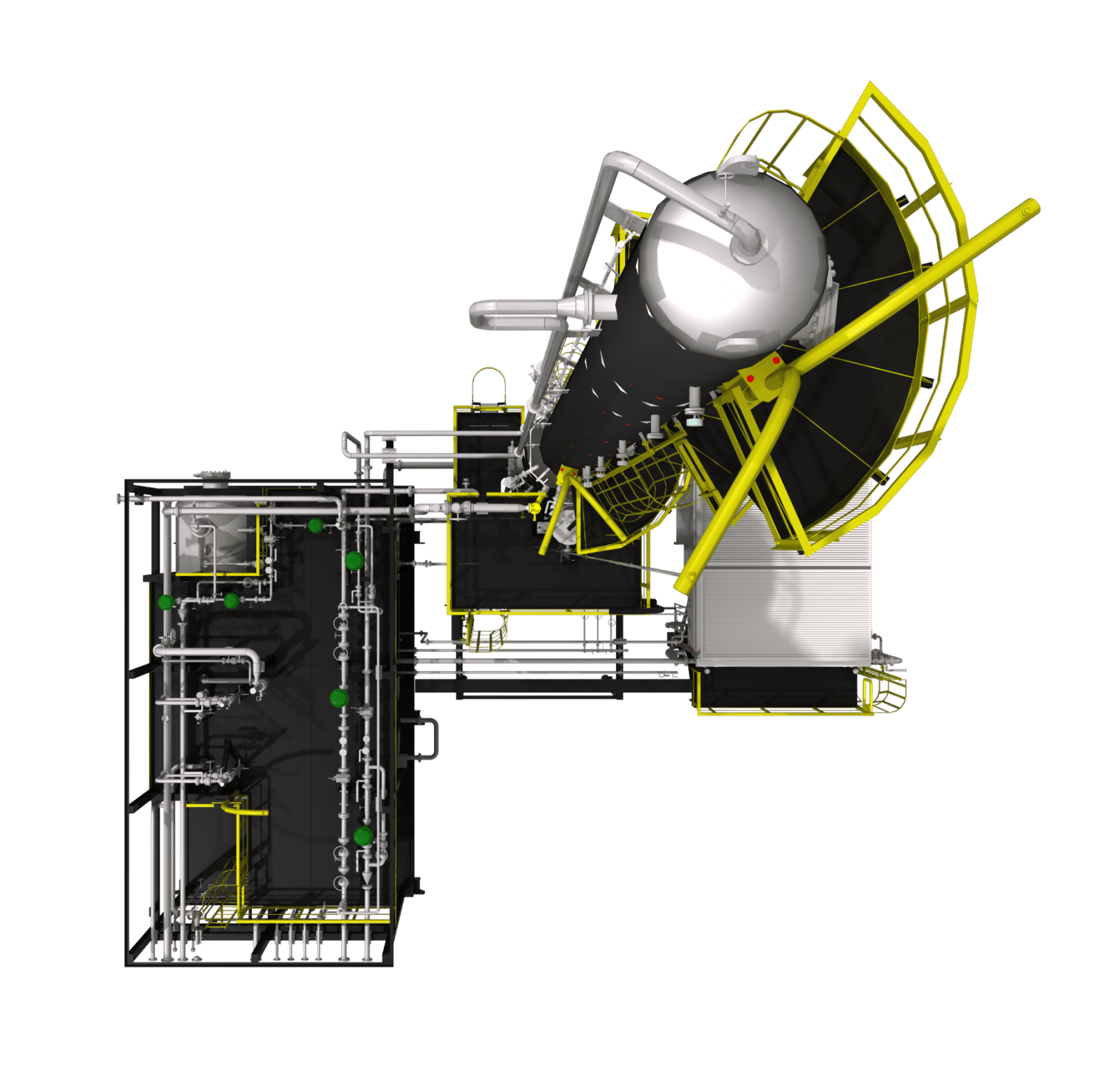

(5) 5B1095 Perspective TOP 15 min
(2) 5B1095 Ortho TLF 15 min (1) 5B1095 Ortho TBL 15 min (3) 5B1095 Ortho TFR 15 min (4) 5B1095 Ortho TRB 15 min (5) 5B1095 Perspective TOP 15 min

Product Specs

  • Hydrocarbon Flow Rate: 5,961 bbl/d
  • Service Condition: sour
  • Inlet Operating Pressure: 165 psig
  • Mechanical Design Pressure: 200 psig
  • Tower Size: 42/60″ ID x 72′-0″ S/S
  • Reboiler: (Duty) 6.768 MMBtu/hr
  • Skid Size: 19′-0″ W x 34′-0″ L

Project Details

  • Unit Type: Condensate Stabilizer
  • Value: $1.0 mm to $5.0 mm
  • Location: Alberta, Canada
  • Completion Date: 2014
