Treater

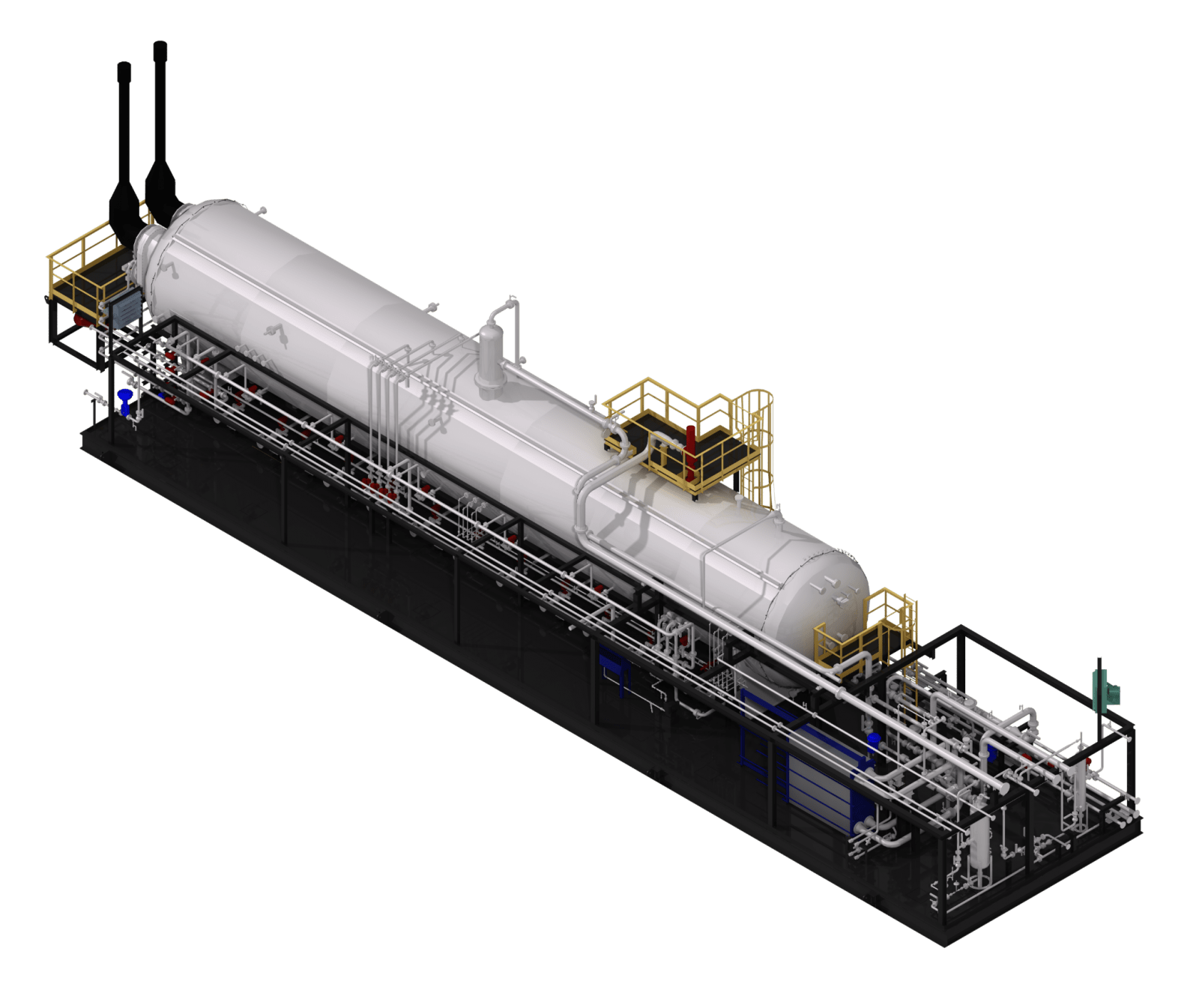

(1) 5B1067 Ortho TFR 15 min

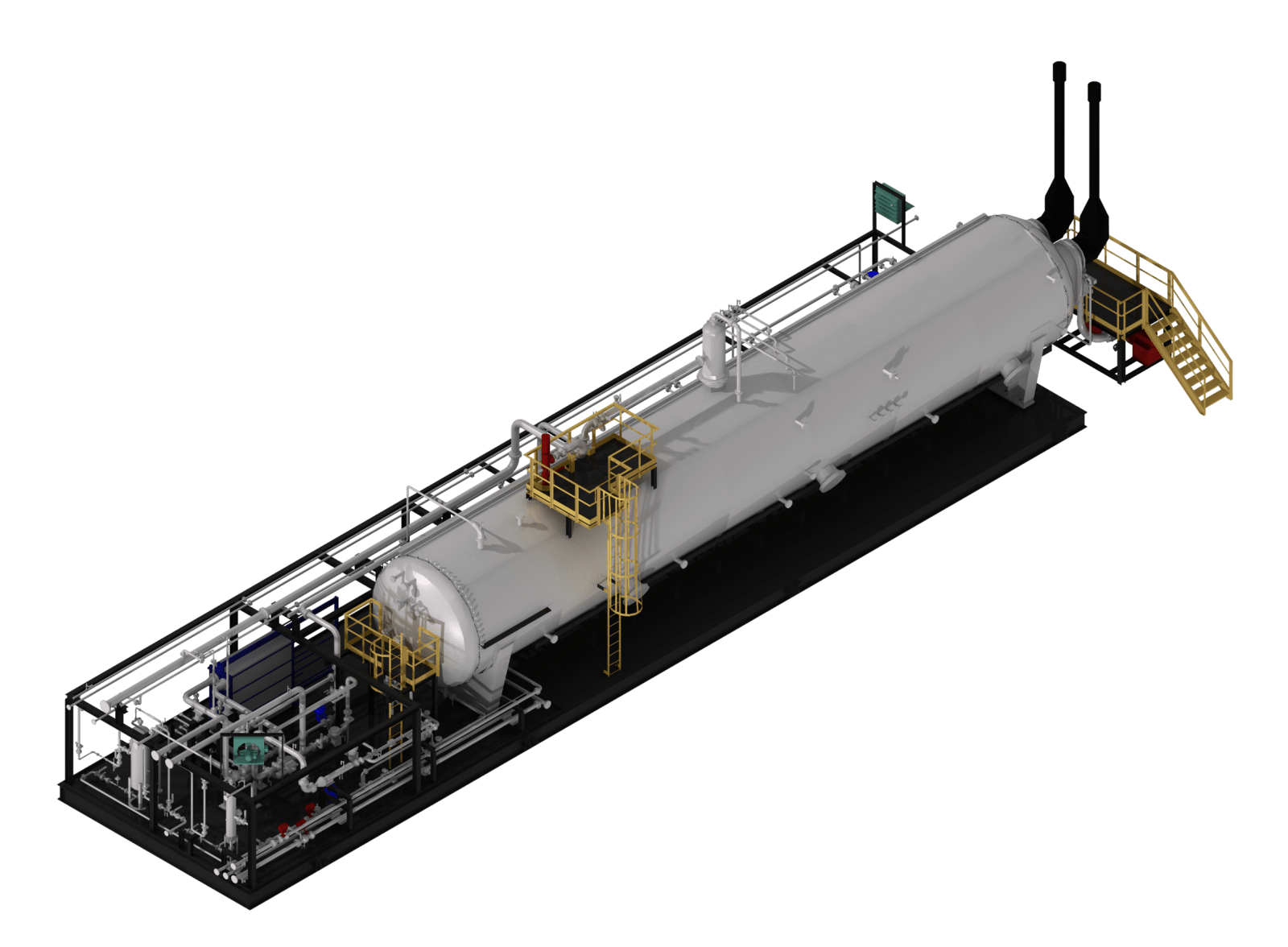

(2) 5B1067 Ortho TRB 15 min

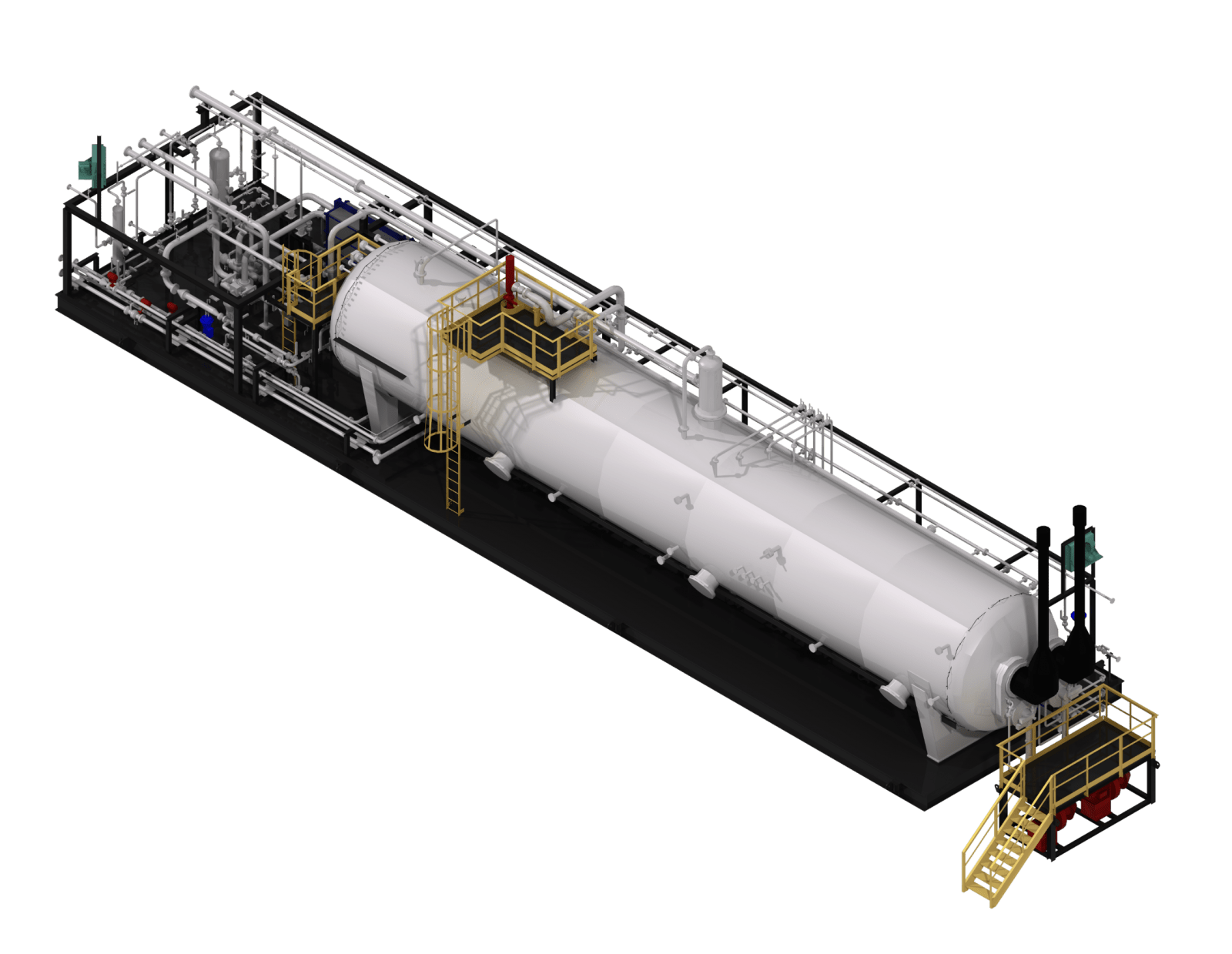

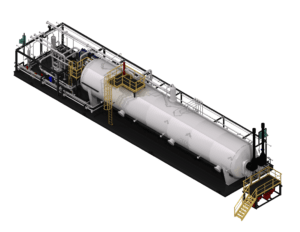

(3) 5B1067 Ortho TBL 15 min

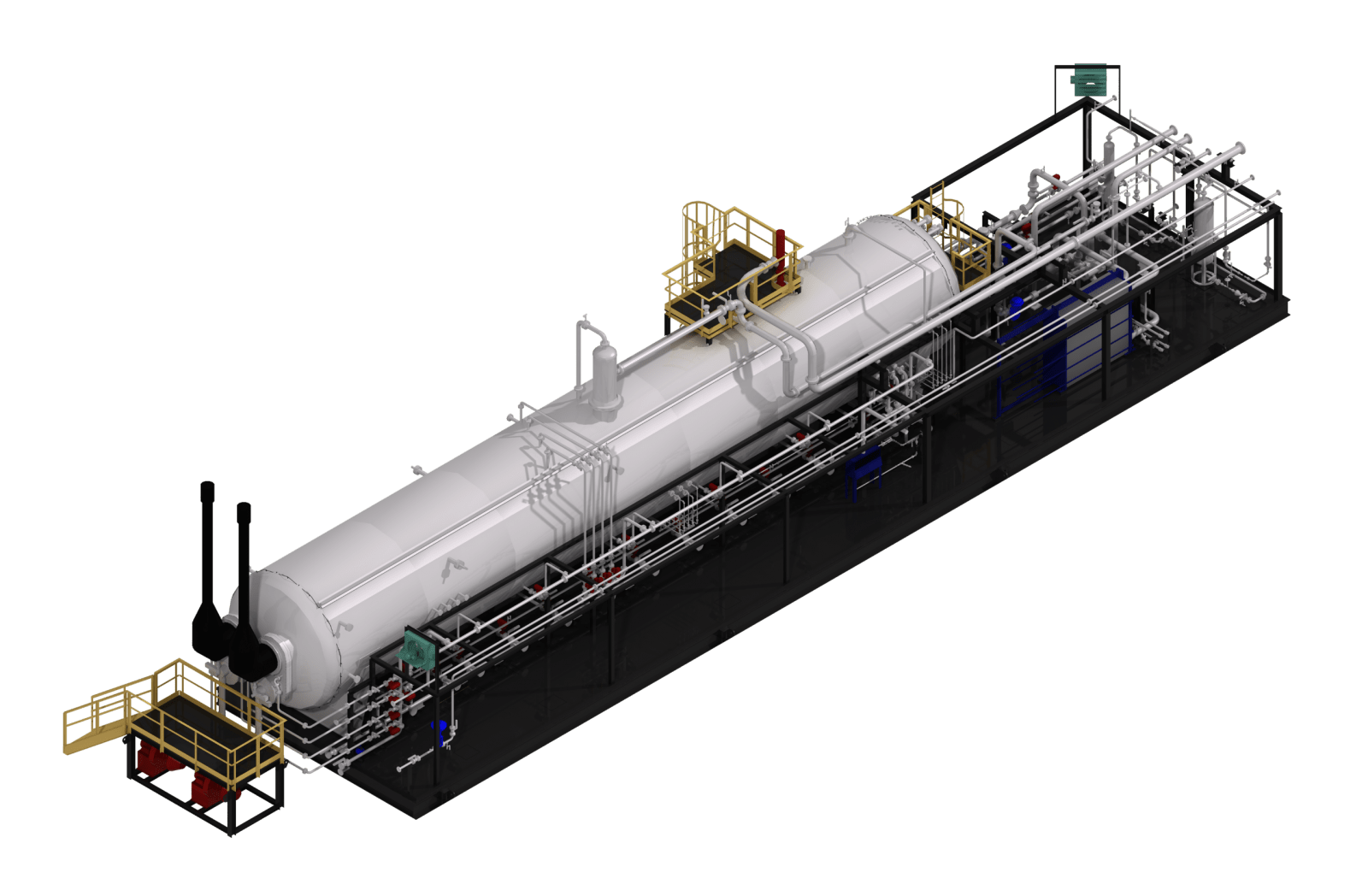

(4) 5B1067 Ortho TLF 15 min

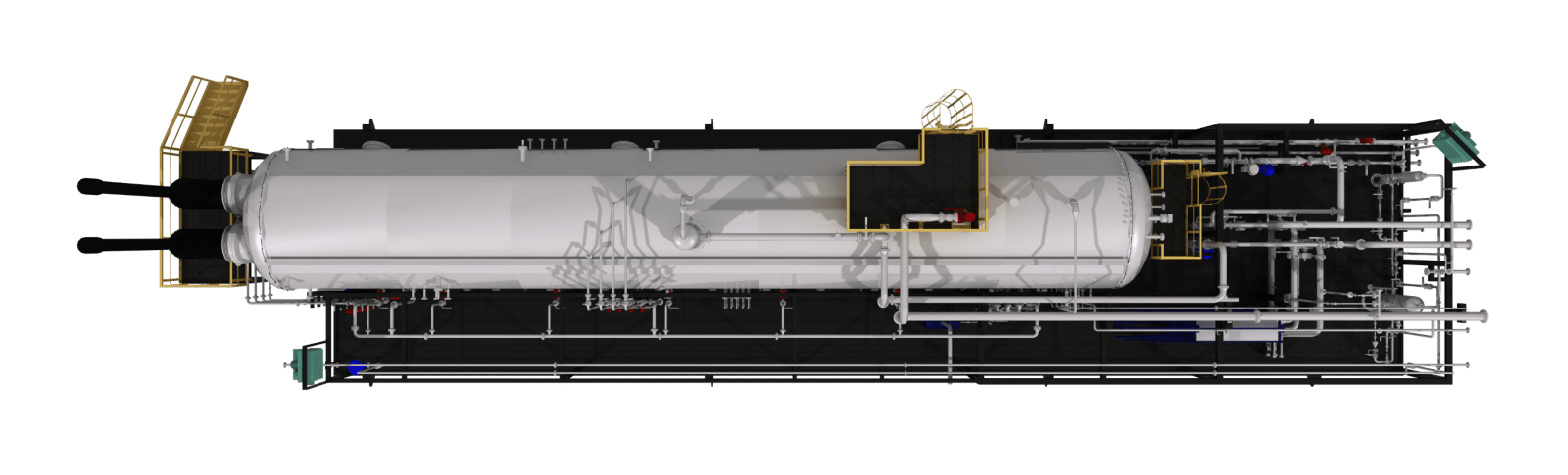

(5) 5B1067 Ortho TOP 15 min
(1) 5B1067 Ortho TFR 15 min (2) 5B1067 Ortho TRB 15 min (3) 5B1067 Ortho TBL 15 min (4) 5B1067 Ortho TLF 15 min (5) 5B1067 Ortho TOP 15 min

Product Specs

  • Gas Flow Rate: 1.5 MMSCFD
  • Water Flow Rate: 1,572 to 2,830 bbl/d
  • Oil or Hydrocarbon Flow Rate: 7,548 to 8,806 bbl/d
  • Service Condition: sour
  • Mechanical Design Pressure: 75 psig
  • Vessel Size: 144″ ID x 70’-0″ S/S
  • Type: Horizontal Heater-Treater
  • Heating Duty: 13 MMBtu/hr
  • Skid Size: 23′-0″ W x 100′-0″ L

Project Details

  • Unit Type: Treater
  • Value: $1.0 mm to $5.0 mm
  • Location: Saskatchewan, Canada
  • Completion Date: 2013
