Deep Cut NGL Recovery Unit

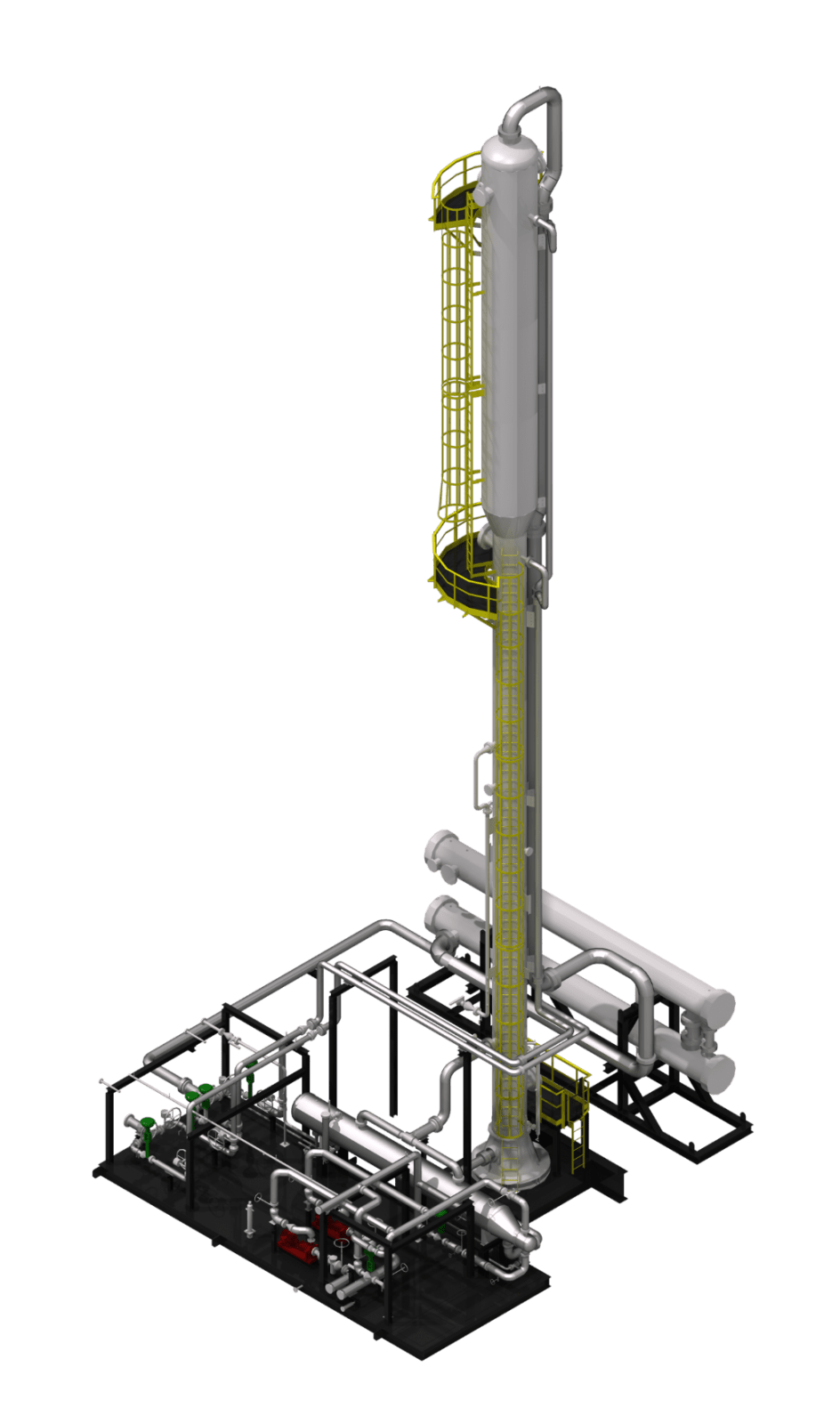

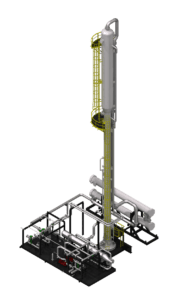

(1) 5B1062 Ortho TFR 15 min

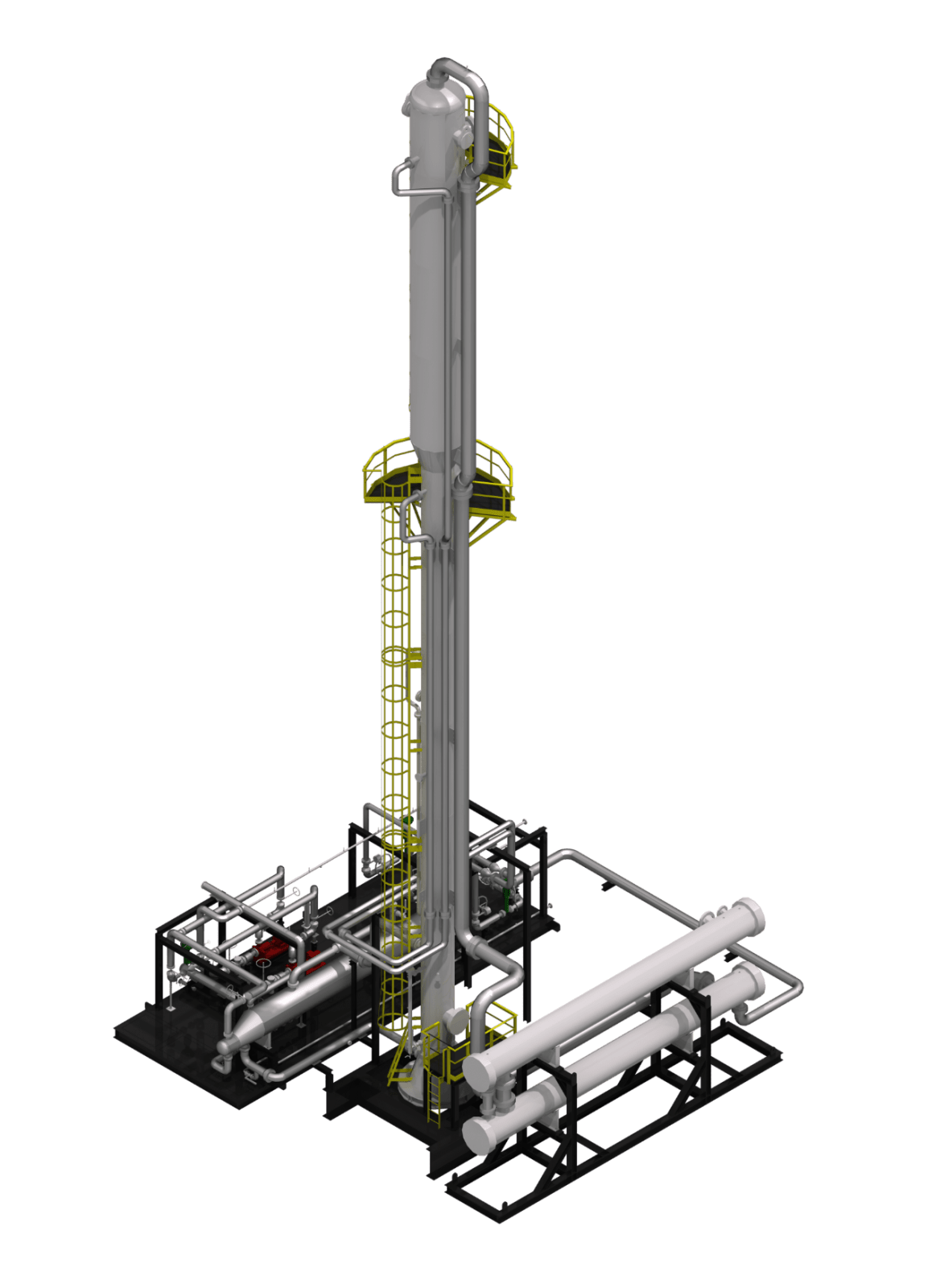

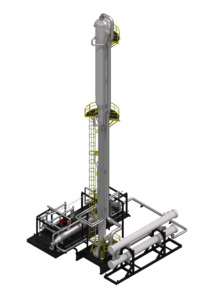

(2) 5B1062 Ortho TRB 15 min

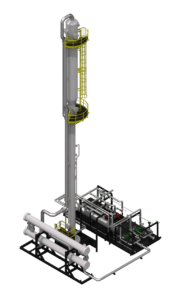

(3) 5B1062 Ortho TBL 15 min

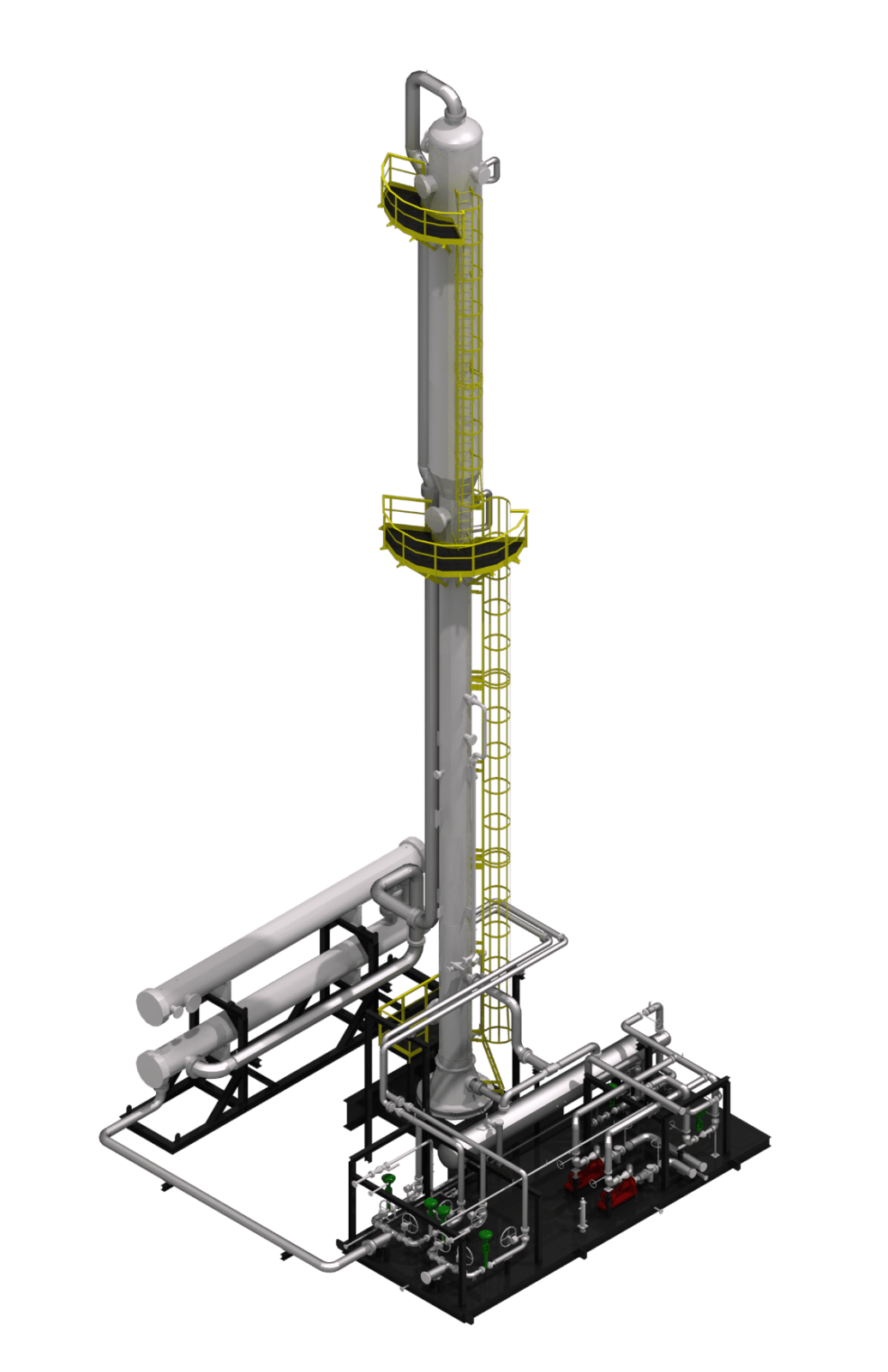

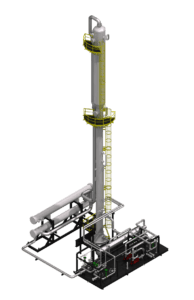

(4) 5B1062 Ortho TLF 15 min

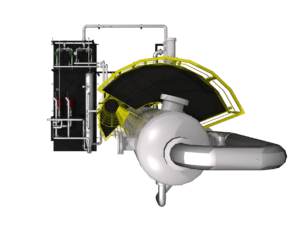

(5) 5B1062 Perspective TOP 15 min
(1) 5B1062 Ortho TFR 15 min (2) 5B1062 Ortho TRB 15 min (3) 5B1062 Ortho TBL 15 min (4) 5B1062 Ortho TLF 15 min (5) 5B1062 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 82 MMSCFD
  • Hydrocarbon Flow Rate: 2,700 bbl/d
  • Fractionation Processes: De-Methanizer
  • Service Condition: sweet
  • Inlet Operating Pressure: 275 psig
  • Mechanical Design Pressure: 350 psig
  • De-Methanizer Tower Size: 36/60″ ID 103′-0″ S/S
  • De-Methanizer Reboiler: (Duty) 3.4 MMBtu/hr
  • Skid Size: 16′-0″ W x 40′-0” L

Project Details

  • Unit Type: Deep Cut NGL Recovery Unit
  • Value: $1.0 mm to $5.0 mm
  • Location: Alberta, Canada
  • Completion Date: 2012
