Glycol Dehydration Package

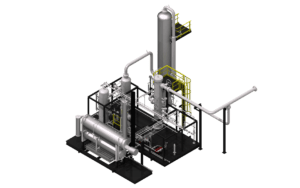

(1) 5B1060 Ortho TFR 15 min

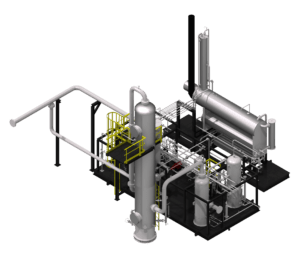

(3) 5B1060 Ortho TBL 15 min

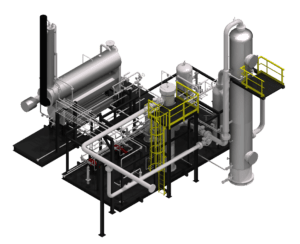

(2) 5B1060 Ortho TRB 15 min

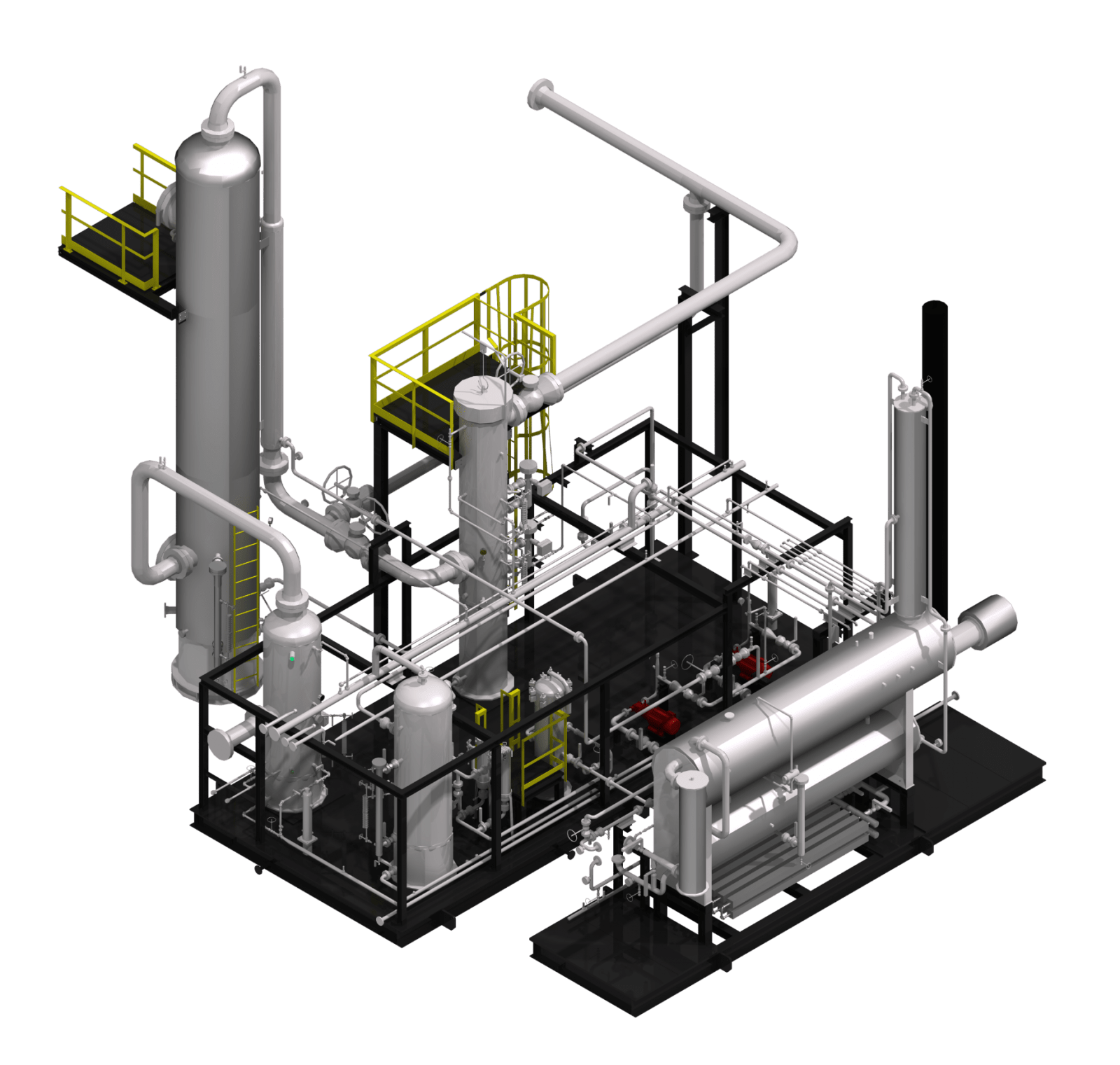

(4) 5B1060 Ortho TLF 15 min

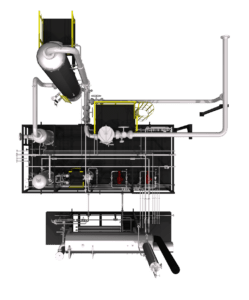

(5) 5B1060 Perspective TOP 15 min
(1) 5B1060 Ortho TFR 15 min (3) 5B1060 Ortho TBL 15 min (2) 5B1060 Ortho TRB 15 min (4) 5B1060 Ortho TLF 15 min (5) 5B1060 Perspective TOP 15 min

Product Specs

  • Gas Flow Rate: 82 MMSCFD
  • Glycol Circulation Rate: 18.8 usgpm
  • Service Condition: sweet
  • Inlet Operating Pressure: 600 psig
  • Mechanical Design Pressure: 850 psig
  • Glycol Contactor Size: 48″ OD x 28′-0″ S/S
  • Reboiler: (Duty) 1 MMBtu/hr
  • Skid Size: 15′-0″ W x 30′-0″ L

Project Details

  • Unit Type: Glycol Dehydration Package
  • Value: $1.0 mm to $5.0 mm
  • Location: Alberta, Canada
  • Completion Date: 2012
